subseries image of MDD115C-N-030-N2L-130PA0

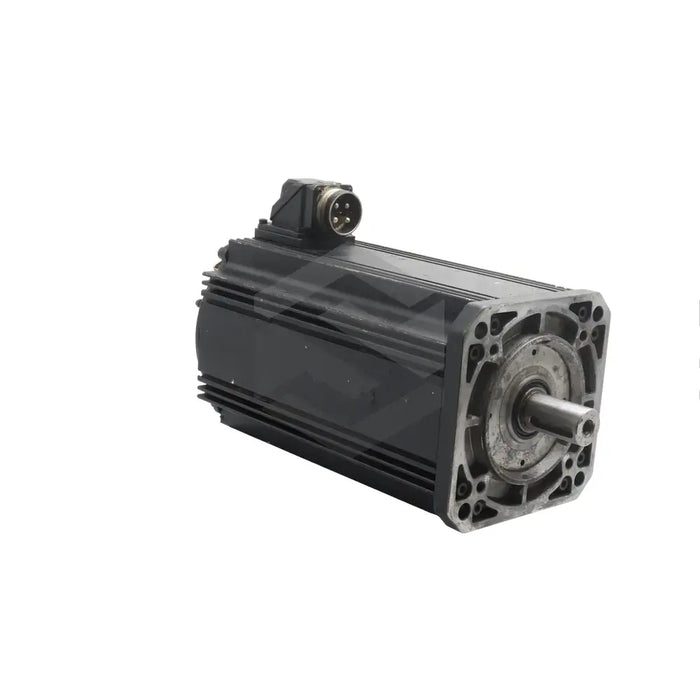

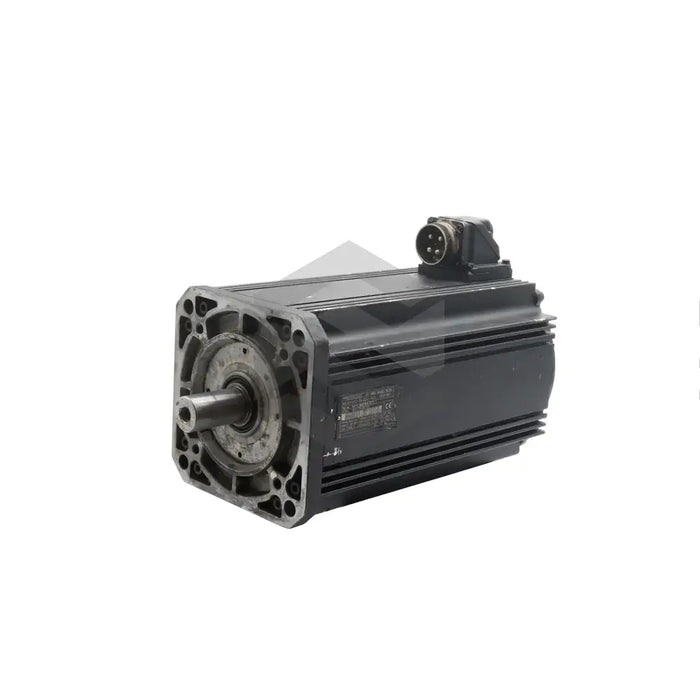

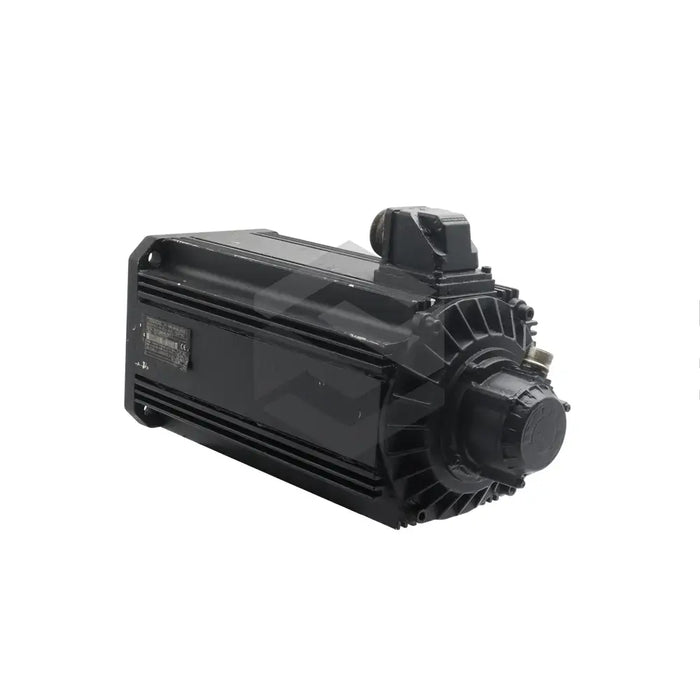

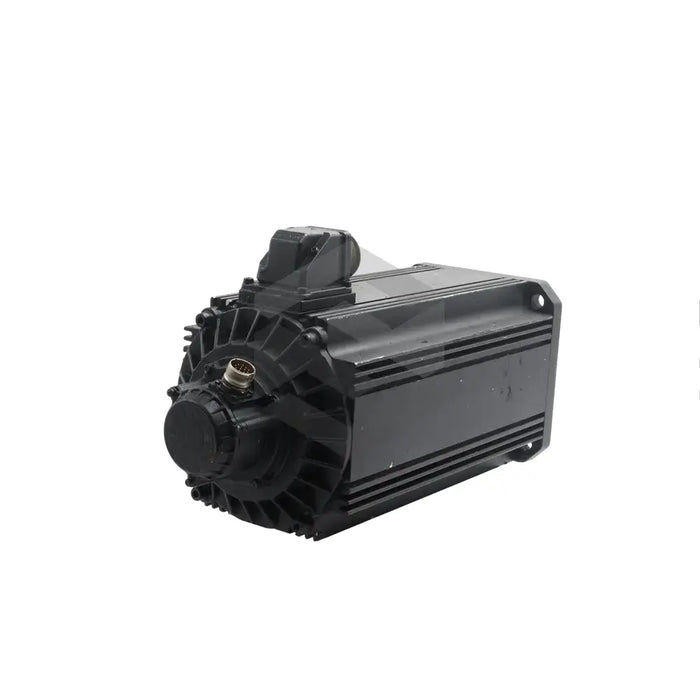

MDD115C-N-030-N2L-130PA0

by Bosch Rexroth Indramat
$4,620.00 - $4,620.00
$4,620.00
$4,620.00 - $4,620.00
$4,620.00
Available, Shipping Varies
The Bosch Rexroth Indramat MDD115C-N-030-N2L-130PA0 is a highly reliable synchronous servo motor with a frame size of 115 and a frame length of C. The motor, which supports digital servo feedback, supports mounting designs B5 and B14, allowing versatility in installation. For longevity, care should be taken to prevent any accumulation of liquids on the outshaft if the motor is mounted with the shaft pointing upward. The motor comes with a shaft with keyway, allowing for a form-fitting torque transmission. However, for heavy-duty use, it is recommended to use a plain shaft end with a non-positive connection. The motor housing is designed for natural convection and surface cooling, and it operates optimally between 0°C to 45°C. It can achieve speeds of up to 3000 RPM and has a centering diameter of 130mm. Note that this motor does not come equipped with a holding brake. The motor should ideally be handled by trained personnel.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Synchronous Servo Motor
  • Motor Frame Size: 115
  • Frame Length: C
  • Mounting Design: B5
  • Secondary Mounting Design: B14
  • Shaft Type: Keyway
  • Housing: Suited to natural convection and surface cooling
  • Working Temperature Range: 0 to 45 degrees Celsius
  • Speed Rating: 3000 RPM
  • Servo Feedback: Digital
  • Centering Diameter: 130 millimeters
  • Holding Brake: No
  • Power Cable Connector Location: Side A
