subseries image of MDD115C-N-030-N2L-130PA1

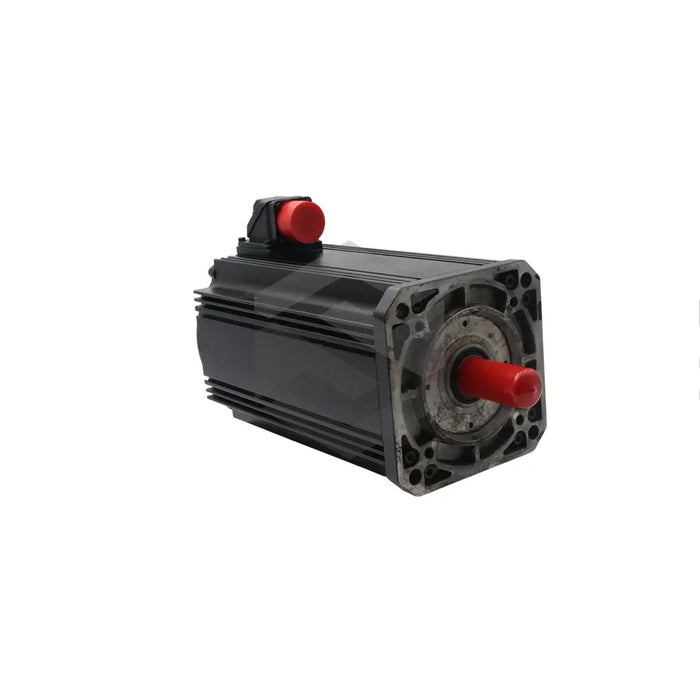

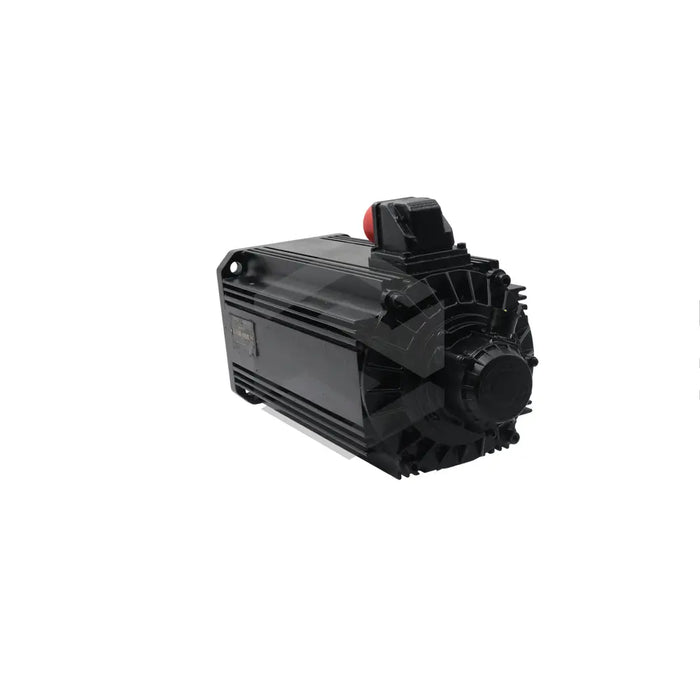

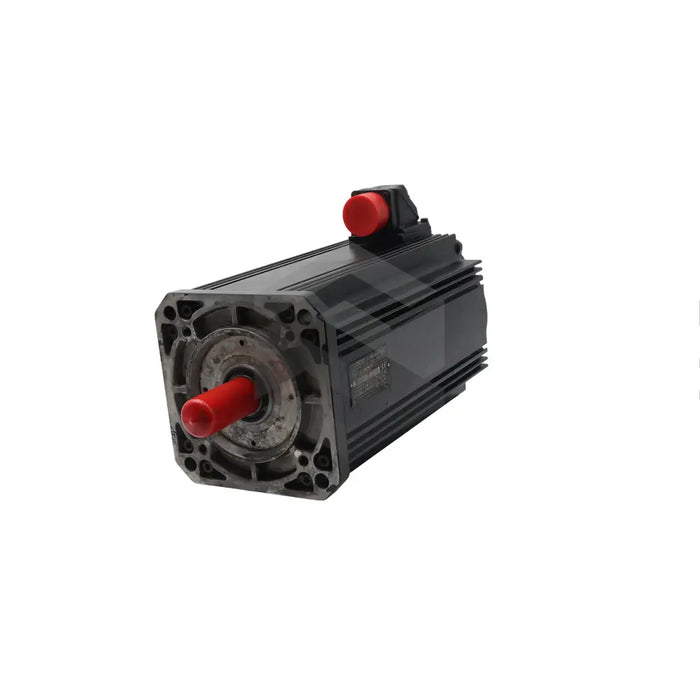

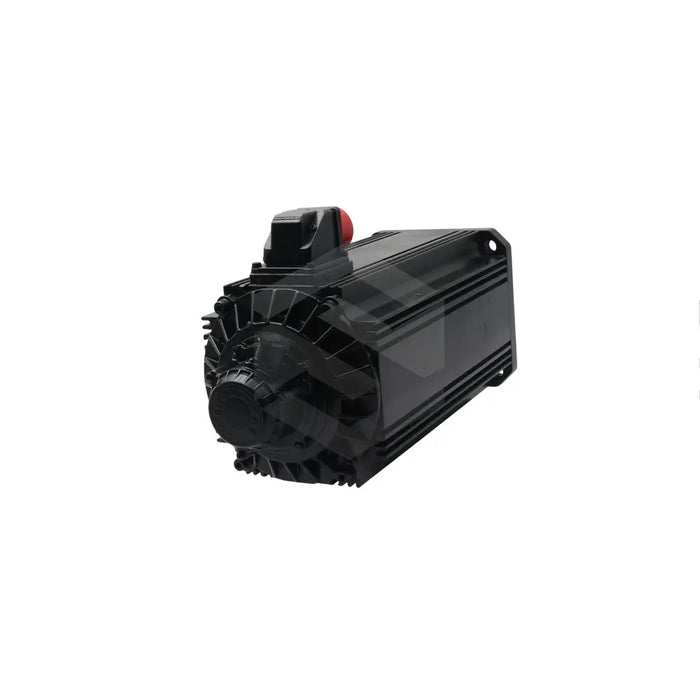

MDD115C-N-030-N2L-130PA1

by Bosch Rexroth Indramat
Request a quote
The MDD115C-N-030-N2L-130PA1, a product of Bosch Rexroth Indramat, is an industrial servo motor with a centering diameter of 130 millimeters and a nominal speed rating of 3000 RPM. Digital servo feedback makes it suitable for high-precision applications such as packaging and printing machines, textile production, and robotics. The motor offers high power density, suitable for tasks like roller feeds in punching and pressing machines. It features an IP65 rated housing optimal for natural convection and surface cooling, and a keyed output shaft as per DIN 6885-1 for effective torque transfer. It also includes a 45 Nm blocking brake activated by a 24 Volts DC signal. The operating temperature ranges from 0 to 45 degrees Celsius while storage temperature should be -20 to 80 degrees Celsius. It measures 458 mm in length, 193 mm flange size, and weighs approximately 52 kilograms. Safe handling should be ensured by trained personnel.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Industrial Servo Motor
  • Model: MDD115C-N-030-N2L-130PA1
  • Centering Diameter: 130 millimeters
  • Nominal Speed Rating: 3000 RPM
  • Feedback Type: Digital Servo Feedback
  • Application: Packaging Machines, Printing Machines, Textiles, Robotics
  • Power Density Ability: High
  • Housing: IP65 rated-suited for natural convection and surface cooling
  • Output Shaft: Equipped with keyway per DIN 6885-1
  • Blocking Brake: 45 Nm, release on application of 24 Volts DC, Current draw-1 Amp, release delay-55 milliseconds, clamping delay-18 milliseconds, mass-1.9 kilograms
  • Permitted Ambient Temperature Range for Operation: 0 to 45 degrees Celsius
  • Permitted Ambient Temperature Range for Storage: -20 to 80 degrees Celsius
  • Power Supply: Drive Controller
  • Electrical Connection: Location on side A
  • Mechanical Specifications: 458 millimeters length, 193 millimeters flange size, 32 millimeters shaft diameter, 52 kilograms motor mass.
