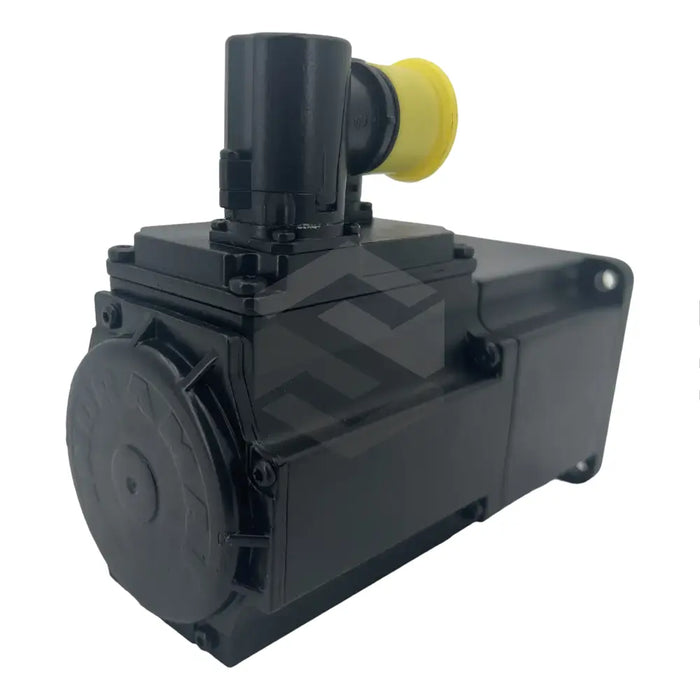

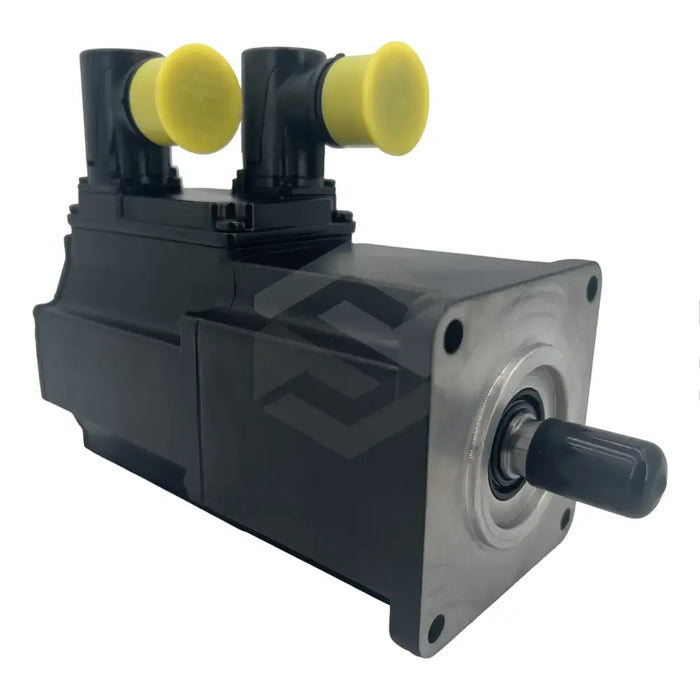

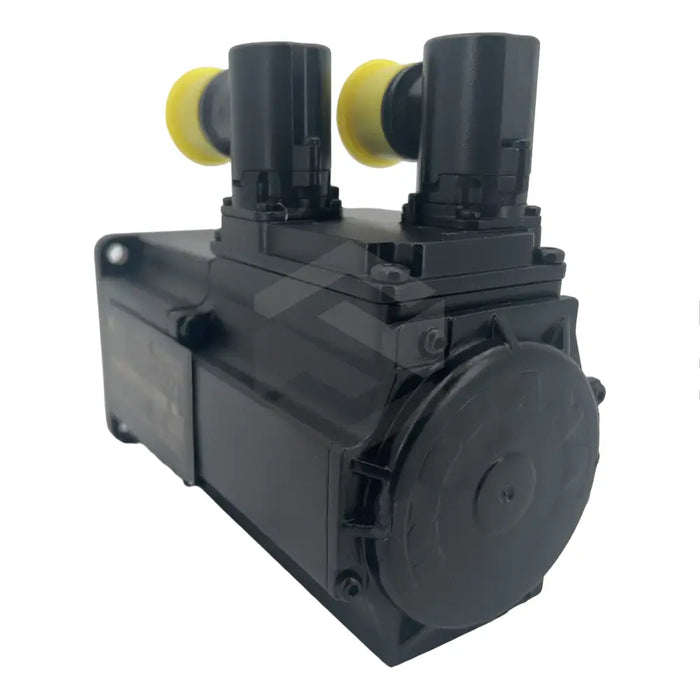

MHD041A-144-NG0-UN

Original price $9,400.00 - Original price $9,400.00
Original price
$9,400.00
$9,400.00 - $9,400.00
Current price $9,400.00
In Stock, Ships Today
The Bosch Rexroth Indramat's MHD041A-144-NG0-UN motor is a high-efficiency, low-maintenance, and cost-effective servo motor, designed with permanent magnets and electronic commutation. Notably prevalent in printing, textile, and packaging industries, this motor is embedded with a digital feedback encoder for precise control of the motor position. It features a plain shaft with a sealing ring for component integration and is developed with natural convection cooling, supporting two over-temperature points (60k or 100k). Its frame size stands at 82mm flange and 50mm centering diameter with a length classified as "A", indicating a standstill torque of 1.3Nm. Covered with IP65 protection, it ensures safety from dust, suitability for 40 degrees Celsius ambient temperature, and a permissible temperature range (-20 to +80) during transport and storage. Transmission occurs through reliable GTS, GTP, GTM planetary gears and 058 series worm gears.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model: MHD041A-144-NG0-UN
  • Technology: Permanent Magnets and Electronic Commutation
  • Main Use Industries: Printing, Textile, Packaging & Handling
  • Features: Integrated with a Digital Feedback Encoder (HSF), Plain shaft with a shaft sealing ring
  • Cooling Design: Natural Convention Cooling
  • Over-Temperature Options: 60K or 100K
  • Maximum Permissible Ambient Temperature: 40ºc
  • Permissible Transport and Storage Temperature: -20 to +80o
  • Frame Size: 82mm Flange and 50mm Centering Diameter
  • Length Classification: A (Motors with continuous holding torque at standstill of 1.3Nm)
  • Protection: IP65 Body Covering
  • Transmission: Planetary gears series GTS, GTP, and GTM and worm gears of series 058
