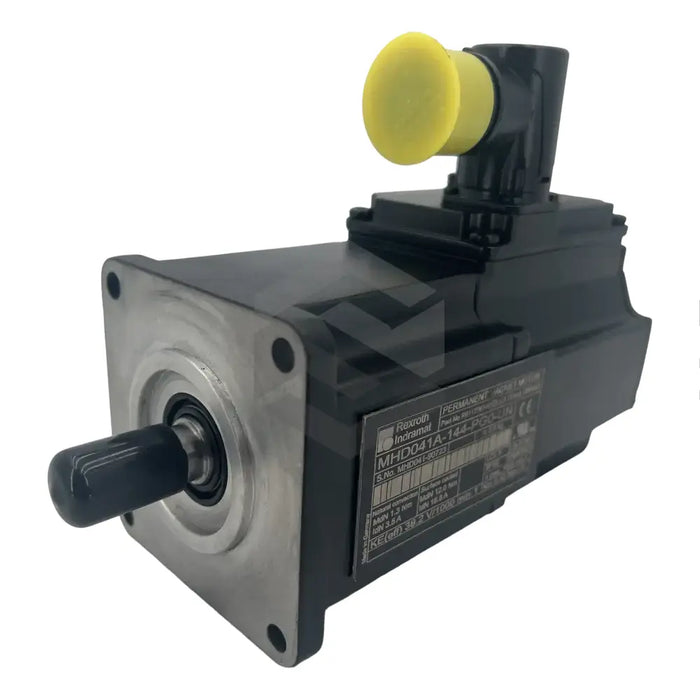

product Main (Front Left) image of MHD041A-144-PG0-UN

MHD041A-144-PG0-UN

by Bosch Rexroth Indramat
$3,037.50 - $3,037.50
$3,037.50
$3,037.50 - $3,037.50
$3,037.50
In Stock, Ships Today
The MHD041A-144-PG0-UN motor by Bosch Rexroth Indramat is a component in the MHD motor series that exhibits high efficiency and precision control with low maintenance costs. This 2.9 kg servo motor is sized "041" with a classification length of "A", offering a 1.35 Nm continuous torque at standstill. The motor operates at a characteristic speed of 7000rpm and a rated speed of 4000rpm with conventional cooling. The permissible transport and storage temperature ranges from -20 to 80 degrees Celsius, while the maximum ambient temperature permitted is 40 degrees Celsius. It features a digital servo feedback with an integrated multiturn absolute encoder, optimised for high precision positioning. Moreover, the motor has no holding brake and a plain shaft, with a turning capacity of the output power and feedback connections up to 270 degrees.
30 Day Warranty
Technical Specifications
  • Product Type: Bosch Rexroth Indramat MHD Motor
  • MHD Model: MHD041A-144-PG0-UN
  • Weight: 2.9kg
  • Frame Size: 82mm-flange
  • Centering Diameter: 50mm
  • Motor Size: 041
  • Motor Length: A
  • Continuous Torque at Standstill: 1.35Nm
  • Characteristic Speed: 7,000rpm
  • Rated Speed: 4,000rpm
  • Cooling Type: Conventional Cooling
  • Over-Temperature Point: 60.00K and 100.00K
  • Permissible Transport and Storage Temperature Range: -20 to 80 degrees Celsius
  • Maximum Permitted Ambient Temperature: 40oC
  • Mass: 2.9Kg
  • Motor Over-Temperature: 60.00K and 100.00K
  • Frequency: 200.00Hz and 200.00K
  • Torque: 0.68Nm and 0.89Nm
  • Voltage: 163.00V and 165.00V
  • Current: 1.29A and 1.68A
  • Performance: 0.36kW and 0.48kW
  • Feedback Type: Digital servo with integrated multi-turn absolute encoder
  • Shaft Type: Plain Shaft (No holding brake)
  • Output Power and Feedback Connections: Direction can turn 270o
  • Motor Inertia: 0.88 x 10-4 kgm2
  • Maximum Speed: 7,500rpm
  • Theoretical Maximum Torque: 5.6Nm
  • Winding Inductance: 13.5mH
  • Peak Current: 15.8A.
