C image of MHD041A-144-PG0-UN | Main (Front Left)

MHD041A-144-PG0-UN

by Bosch Rexroth Indramat
$6,082.35 - $6,082.35
$6,082.35
$6,082.35 - $6,082.35
$6,082.35

Available, Shipping Varies

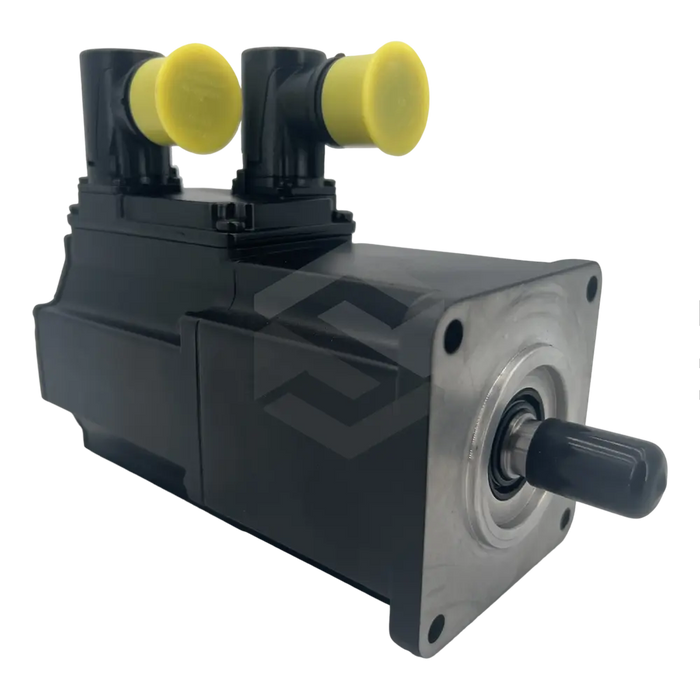

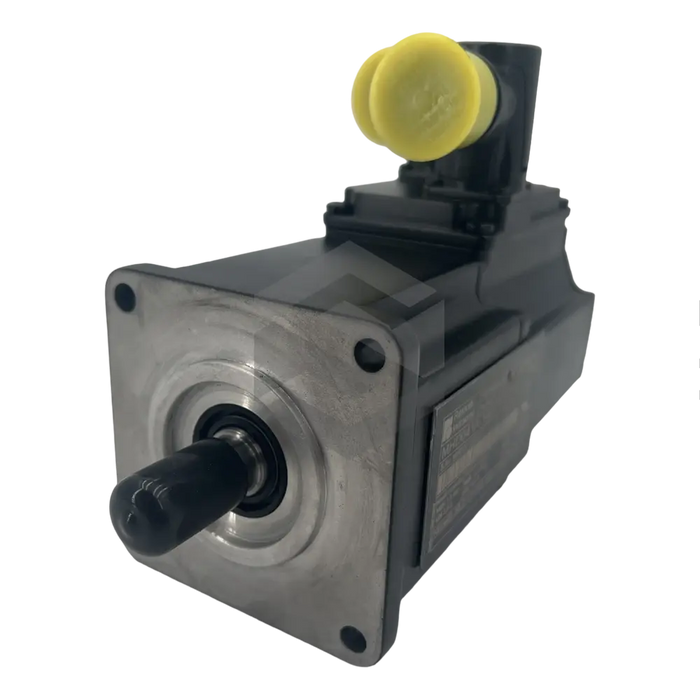

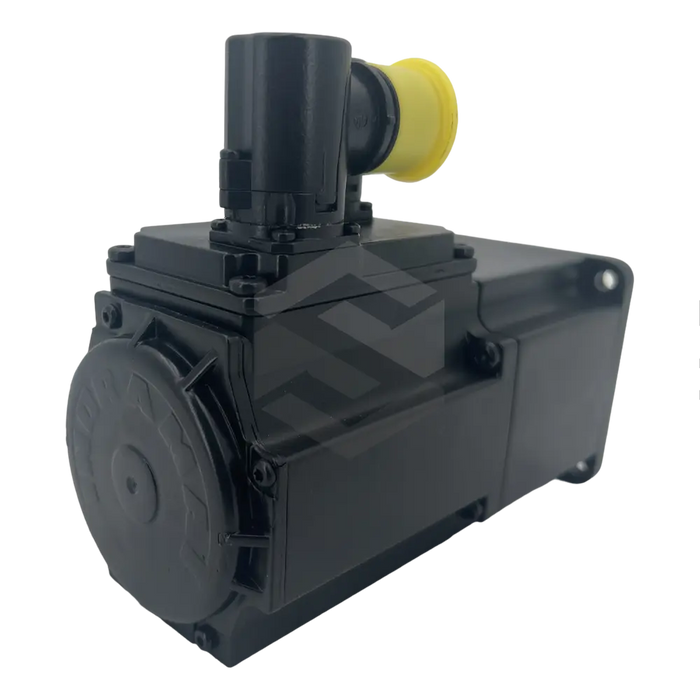

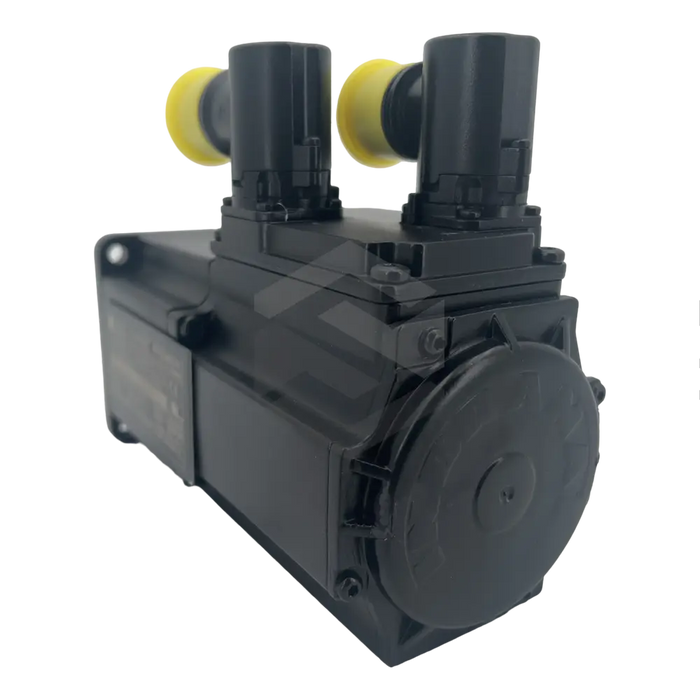

The MHD041A-144-PG0-UN motor by Bosch Rexroth Indramat is a component in the MHD motor series that exhibits high efficiency and precision control with low maintenance costs. This 2.9 kg servo motor is sized "041" with a classification length of "A", offering a 1.35 Nm continuous torque at standstill. The motor operates at a characteristic speed of 7000rpm and a rated speed of 4000rpm with conventional cooling. The permissible transport and storage temperature ranges from -20 to 80 degrees Celsius, while the maximum ambient temperature permitted is 40 degrees Celsius. It features a digital servo feedback with an integrated multiturn absolute encoder, optimised for high precision positioning. Moreover, the motor has no holding brake and a plain shaft, with a turning capacity of the output power and feedback connections up to 270 degrees.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Type

Bosch Rexroth Indramat MHD Motor

MHD Model

MHD041A-144-PG0-UN

Weight

2.9kg

Frame Size

82mm-flange

Centering Diameter

50mm

Motor Size

041

Motor Length

A

Continuous Torque at Standstill

1.35Nm

Characteristic Speed

7,000rpm

Rated Speed

4,000rpm

Cooling Type

Conventional Cooling

Over-Temperature Point

60.00K and 100.00K

Permissible Transport and Storage Temperature Range

-20 to 80 degrees Celsius

Maximum Permitted Ambient Temperature

40oC

Mass

2.9Kg

Motor Over-Temperature

60.00K and 100.00K

Frequency

200.00Hz and 200.00K

Torque

0.68Nm and 0.89Nm

Voltage

163.00V and 165.00V

Current

1.29A and 1.68A

Performance

0.36kW and 0.48kW

Feedback Type

Digital servo with integrated multi-turn absolute encoder

Shaft Type

Plain Shaft (No holding brake)

Output Power and Feedback Connections

Direction can turn 270o

Motor Inertia

0.88 x 10-4 kgm2

Maximum Speed

7,500rpm

Theoretical Maximum Torque

5.6Nm

Winding Inductance

13.5mH

Peak Current

15.8A.
