MHD041B-144-NP0-UN

Request a quote

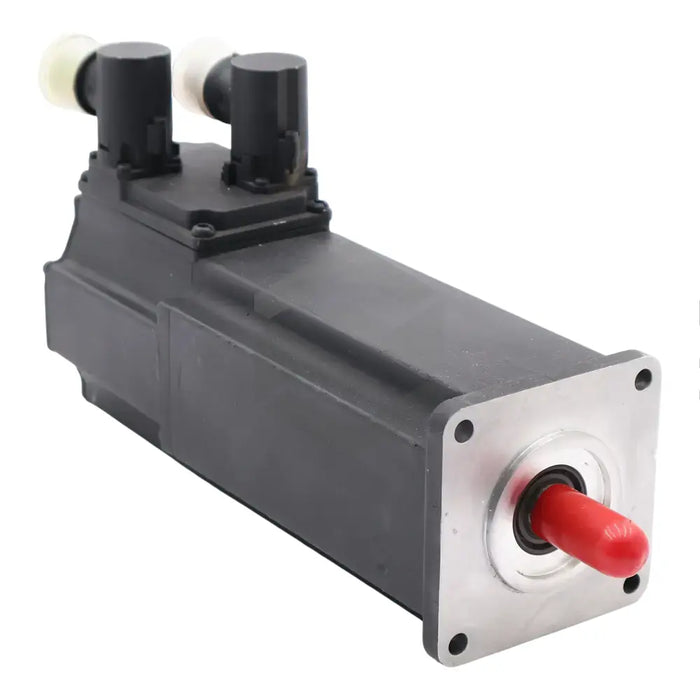

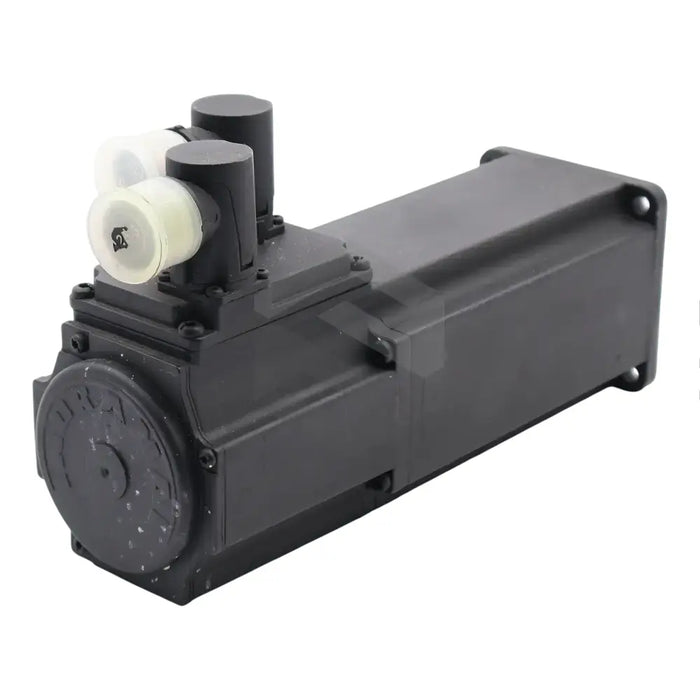

The Bosch Rexroth Indramat MHD041B-144-NP0-UN motor is a revolutionary product in the field of motion-control technologies. It is created for optimizing industrial processes with its intelligent drive units. Highlights of this motor, belonging to the acclaimed MHD synchronous motor series, include a maintenance-free brushless design and permanent magnet construction, making it ideal for applications like machining centers and robotics. This reliable motor has an IP65 degree of protection and uses a natural cooling system to prevent overheating. The drive shaft employs a DIN 6885-1 standard keyway for easy installation, aided by a shaft sealing ring. The motor incorporates a robust digital servo feedback device for precise drive control, delivering rated torques of 1.4nM and 1.5Nm, speeds from 3,000 to 4,500 RPM, and power ratings of 0.52kW to 0.88kW. In short, this durable motor offers superior performance for industrial applications.
30 Day Warranty
Technical Specifications
  • Manufacturer : Bosch Rexroth Indramat
  • Product Type : MHD Synchronous Motor
  • Motor Series : MHD041B-144-NP0-UN
  • Design : Maintenance-free, Brushless, Permanent Magnet
  • Variants : 60K and 100K
  • Rated Torque : 1.4nM and 1.5Nm
  • Rated Speed : 3,000 RPM and 4,500 RPM
  • Rated Performance : 0.52kW and 0.88kW
  • Degree of Protection : IP65
  • Cooling System : Natural Air Cooling
  • Drive Shaft Keyway : DIN 6885-1 standard
  • Feedback : Digital Servo Feedback Device
  • Application : Machining Centers, Robotics
