series image of MHD041B-144-NP1-UN

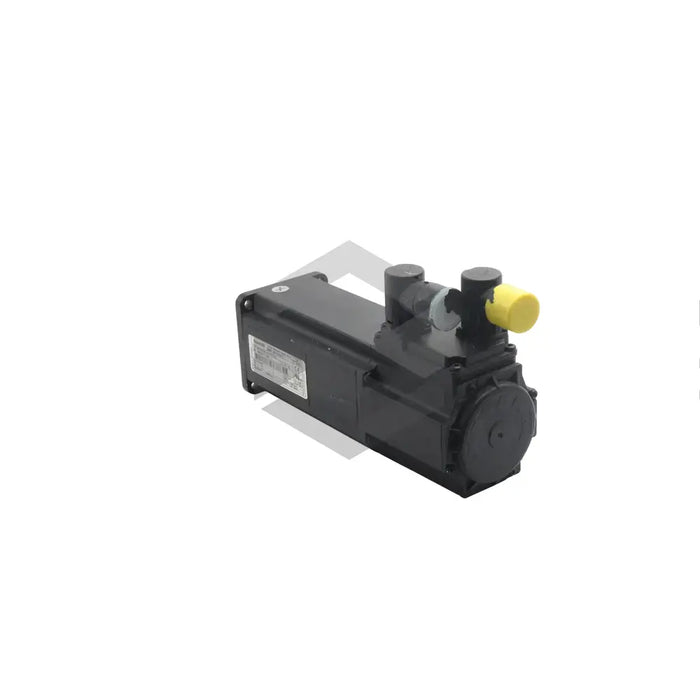

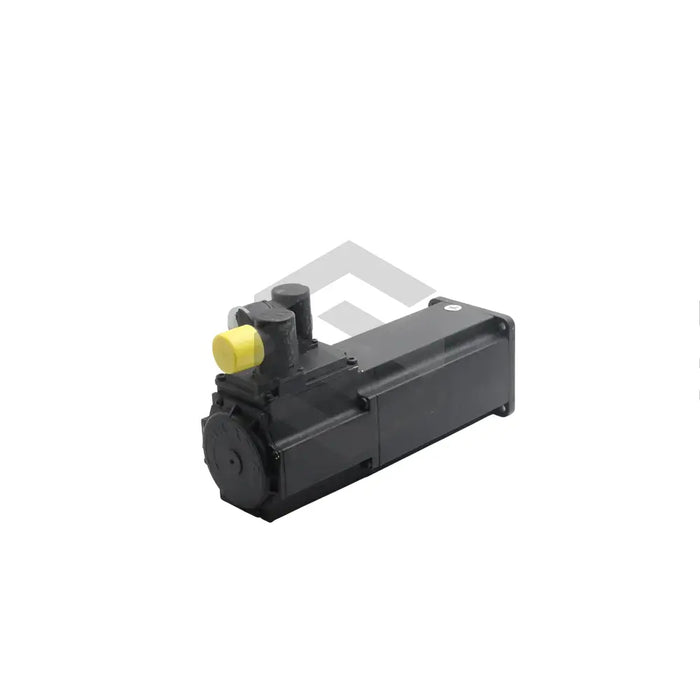

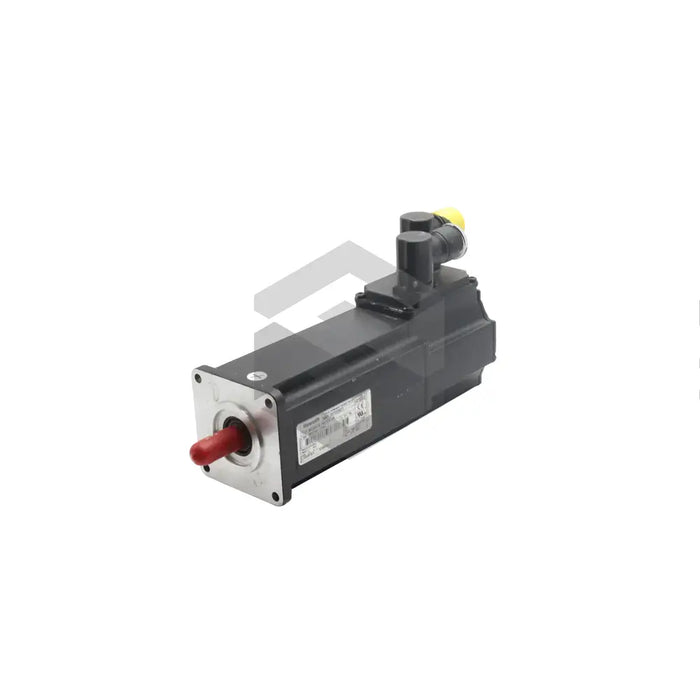

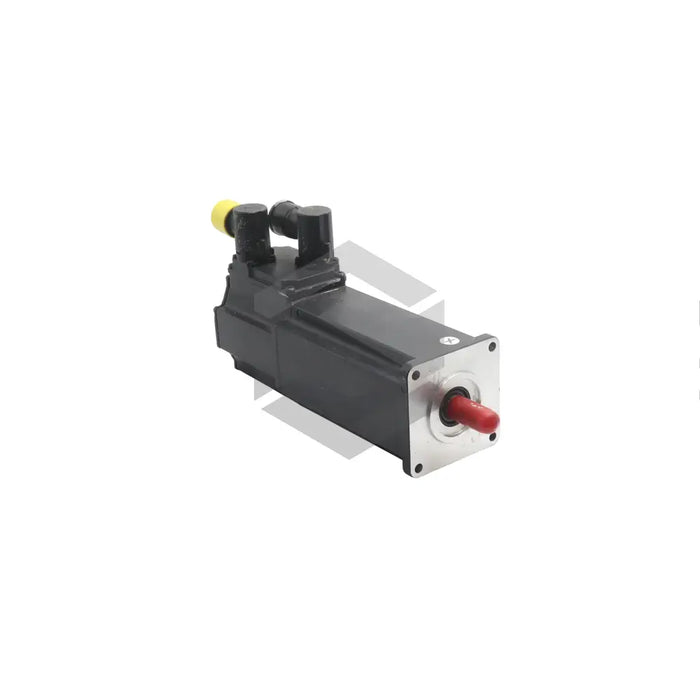

MHD041B-144-NP1-UN

by Bosch Rexroth Indramat
$7,639.06 - $7,639.06
$7,639.06
$7,639.06 - $7,639.06
$7,639.06
In Stock, Ships Today
The MHD041B-144-NP1-UN is an advanced servo motor by Bosch Rexroth's Indramat division. It operates optimally within an ambient temperature of 0 to +45 degrees Celsius and in locations less than 1000 meters above sea level. Key features include an IP 65-rated housing, ensuring significant dust and water protection, and a black prime coated finish. The motor operates at a rated velocity of 6,000 rotations per minute, weighs 4.5 kg, and uses a 11.3 Amp peak current. Known for its ease of operation and minimal maintenance needs, this brushless servo motor uses lifetime lubricated bearings. It also has a thermal time constant of 4.5 minutes and delivers a theoretical maximum torque of 11.3 Nm, with recommended operation accompanied by supplier-approved devices. The motor can be stored between -20 to +80 degree Celsius and is shipped globally by Wake Industrial.
30 Day Warranty
Technical Specifications
  • Product Manufacturer: Bosch Rexroth
  • Product Type: Servo Motor
  • Model: MHD041B-144-NP1-UN
  • Ambient Operating Temperature: 0 to +45 degree Celsius
  • Relative Humidity: less than 90%
  • Allowed Elevation: 1000 meters above sea level
  • Enclosed Housing Quality: IP 65
  • Housing Finish: Basic Black Prime Coat
  • Rated Velocity: 6,000 revolutions per minute
  • Weight: 4.5 kg
  • Peak Current Consumption: 11.3 A
  • Design: Permanent Magnet Motor or Brushless Servo Motor
  • Bearings: Lifetime lubricated
  • Thermal Time Constant: 4.5 minutes
  • Theoretical Maximum Torque: 11.3 Nm
  • Torque (20 degree Celsius): 0.40 Nm/A
  • Winding Resistance: 1.8 Ohm
  • Winding Inductance: 5 mH
  • Storage Temperature: -20 to +80 degree Celsius
  • Worldwide Delivery: Yes.
