MHD041B-144-PG0-UN

Original price $2,217.00 - Original price $2,217.00
Original price
$2,217.00
$2,217.00 - $2,217.00
Current price $2,217.00
In Stock, Ships Today
Request a quote

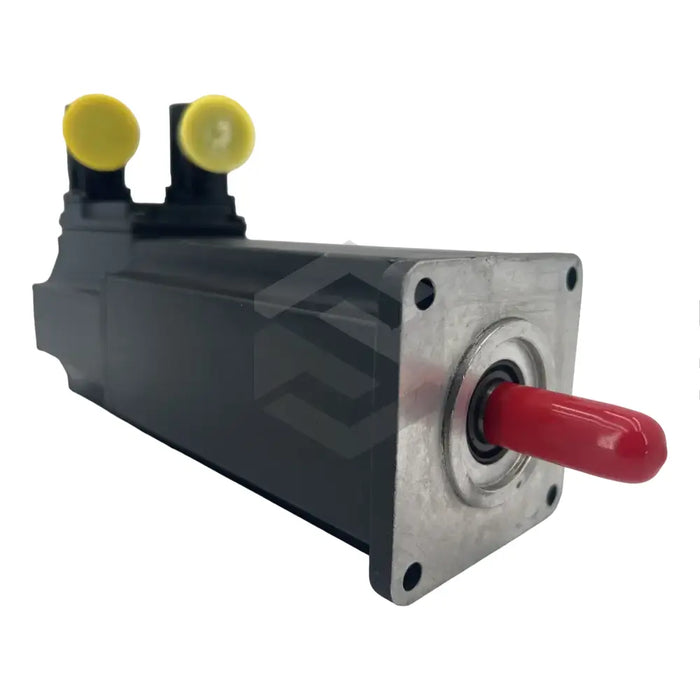

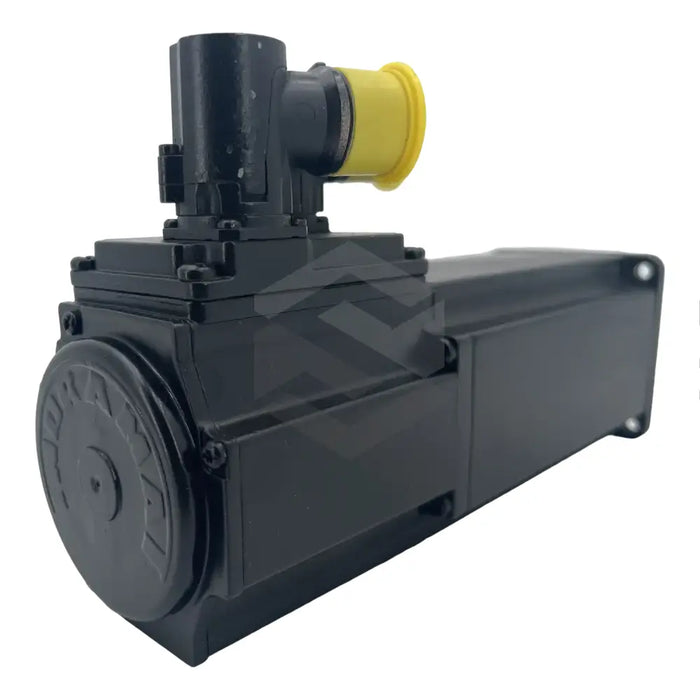

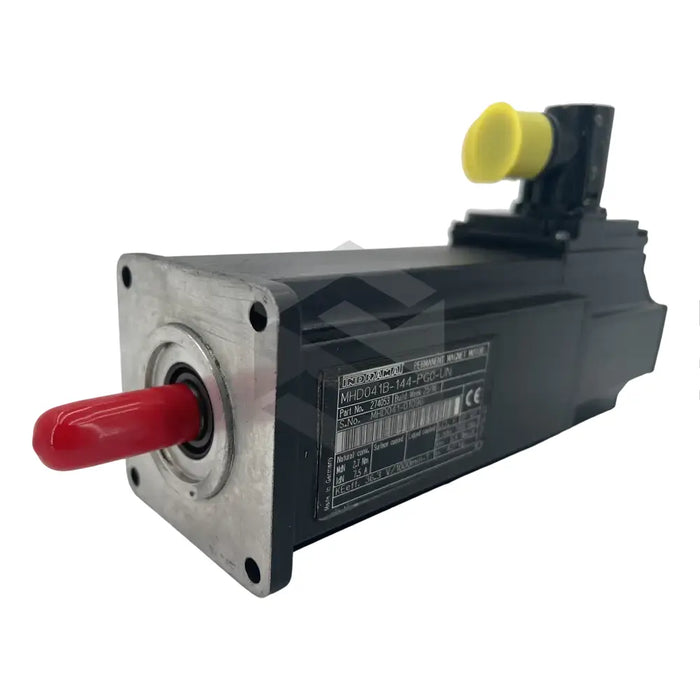

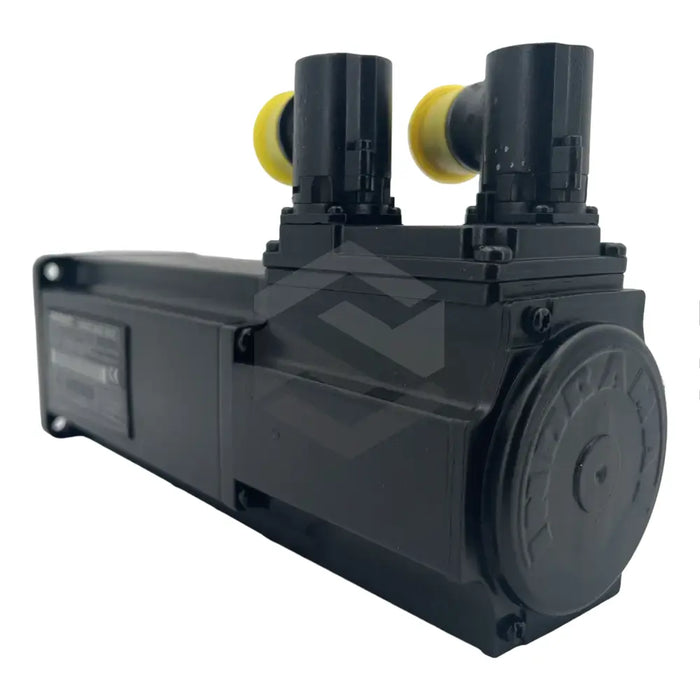

Bosch Rexroth Indramat's MHD041B-144-PG0-UN is a well-regarded fixture in the motion control sector. Notable for its diverse product array and superior quality, its MHD Synchronous Motor Series is a key feature in high precision machinery, specifically in machining centers and robotics. The MHD041B-144-PG0-UN motor, which can be deployed in low-torque requirement applications, is part of this series, offering two versions – the 60K and 100K. The 60K version offers a rated torque of 1.4Nm, a rated speed of 3,000 RPM, and a rated performance of 0.52kw. The 100K, on the other hand, provides a rated torque of 1.5Nm, a rated speed of 4,500 RPM, and a rated performance of 0.88kW. The addition of an IP65 Degree of Protection ensures durability in harsh environments while a frame-design that promotes natural convective cooling enables smooth operation without additional cooling aids. Notably, its digital servo feedback encoder is compatible with closed loop feedback systems.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Motor
  • MHD Synchronous Motor Series: Yes
  • Low-Torque Applications: Yes
  • Versions: 60K, 100K
  • Rated Torque (60K): 1.4Nm
  • Rated Torque (100K): 1.5Nm
  • Rated Speed (60K): 3000 RPM
  • Rated Speed (100K): 4500 RPM
  • Rated Performance (60K): 0.52kw
  • Rated Performance (100K): 0.88kW
  • Degree of Protection: IP65
  • Cooling Method: Natural Convective Air
  • Closed Loop Feedback System Compatible: Yes
  • Encoder Type: Multiturn Absolute
  • Encoder Revolutions: Up to 4096 revolutions
  • Position Tracking: Yes
