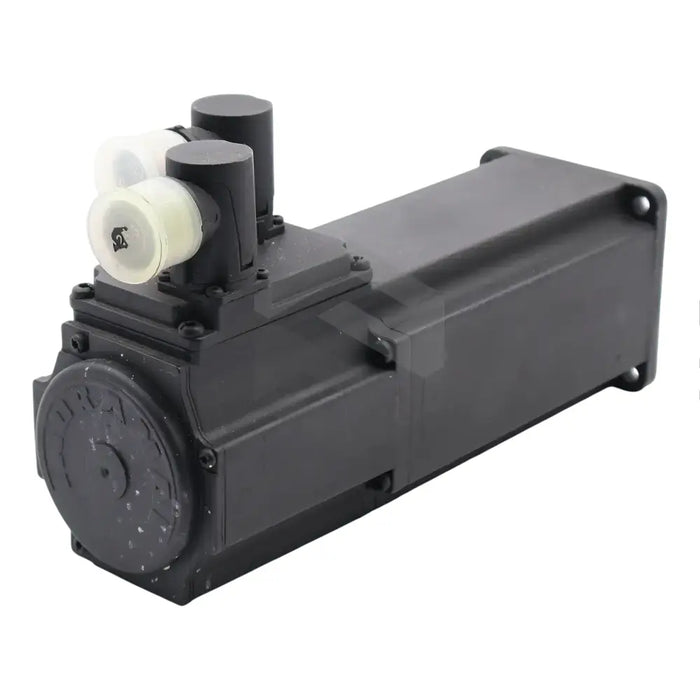

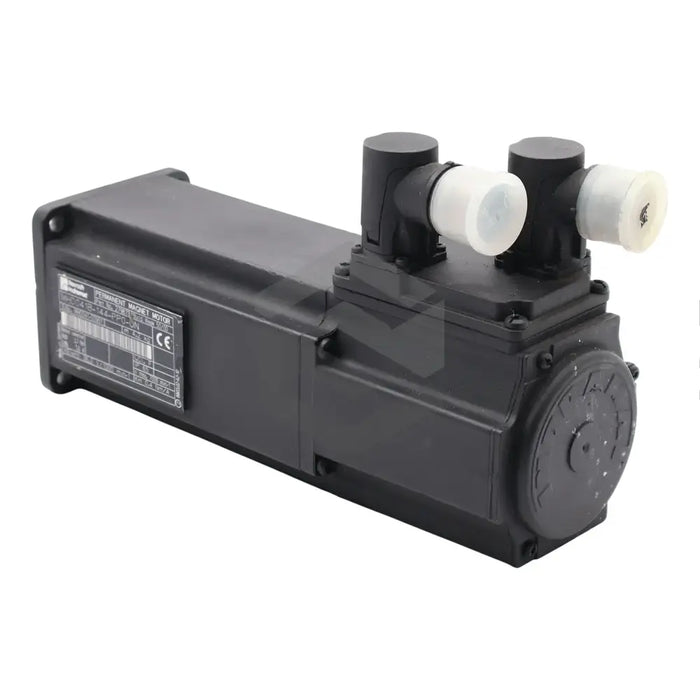

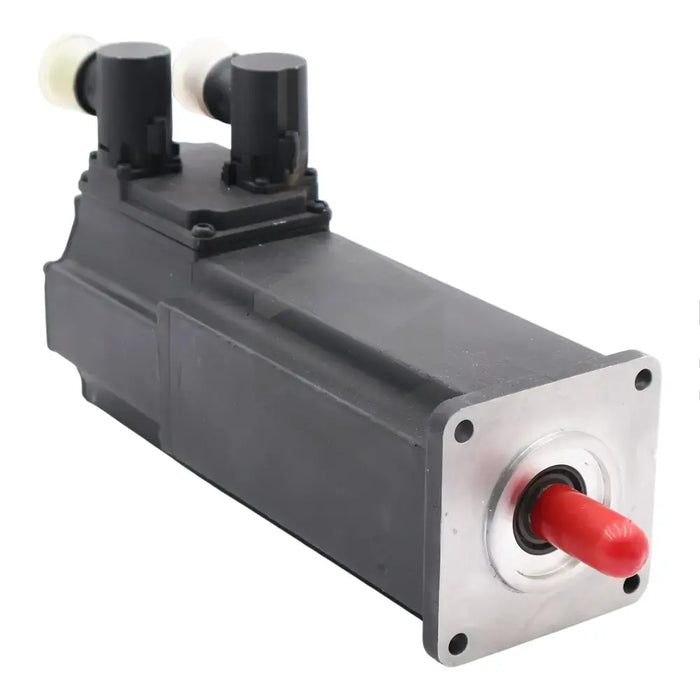

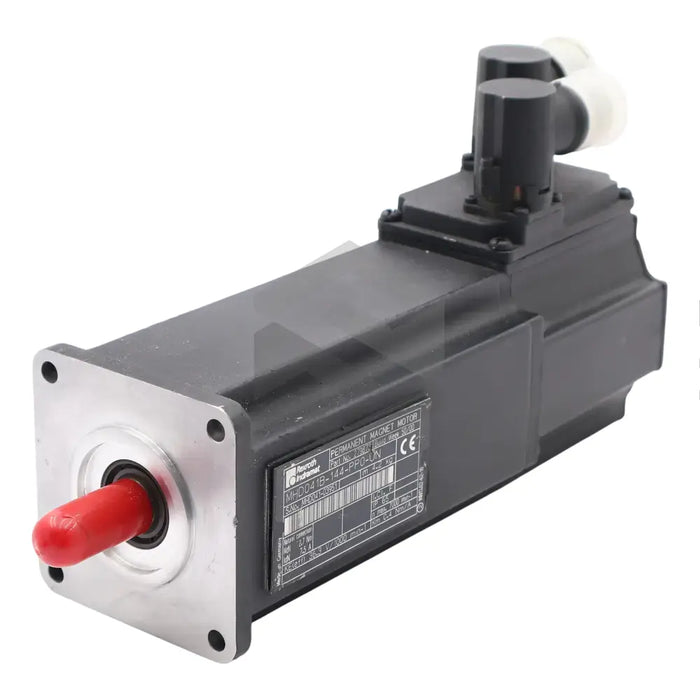

series image of MHD041B-144-PP0-UN

MHD041B-144-PP0-UN

by Bosch Rexroth Indramat
$4,127.40 - $4,127.40
$4,127.40
$4,127.40 - $4,127.40
$4,127.40
In Stock, Ships 3 - 5 Days
Rexroth Indramat's MHD041B-144-PP0-UN synchronous motor, combined with drive controllers, forms a cost-effective, high-functionality automation system. This system can be used across a multitude of industries, including handling and automation, packaging machines, food, machine tools, and printing and paper industries. Key features include low inertia mass design due to special magnet material, easy installation and startup, high dynamics and impressive performance data. The motor’s primary components are a shaft, bearing, holding brake, motor encoder, stator with winding, rotor with permanent magnets, and a shaft sealing ring. It uses a natural convection cooling system and displays a speed of 6000 rpm, with a peak current of 34.0 A and three pole pairs. The MHD041B-144-PP0-UN can operate in temperatures ranging from 0 to 40 degrees and can be stored/transported in temperatures from -20 to 80 degrees. It weighs 4.5 kg and has a protection degree of IP 65.
30 Day Warranty
Technical Specifications
  • Product Model: MHD041B-144-PP0-UN
  • Manufacturer: Rexroth Indramat
  • Application: Handling and automation, Packaging machines and food, Machine tools, Printing and paper industries
  • Construction: Shaft, Bearing, Holding brake, Motor encoder, Stator with winding, Rotor with permanent magnets, Shaft sealing ring
  • Cooling System: Natural convection
  • Characteristic Speed: 6000 rpm
  • Peak Current: 34.0 A
  • Pole Pairs: 3
  • Winding Inductivity: 4.9 mH
  • Continuous Torque at Standstill: 2.7 Nm
  • Continuous Current at Standstill: 7.5 A
  • Rated Frequency: 150 Hz
  • Rated Voltage: 115 V
  • Rated Current: 2.8 A
  • Rated Torque: 1.4 Nm
  • Maximum Setup Height: 1000 meters above sea level
  • Operating Temperature: 0 to 40 degrees
  • Storage Temperature: -20 to 80 degrees
  • Weight: 4.5 kg
  • Protection Degree: IP 65
  • Maximum Speed: 7500 rpm
  • Encoder: Multiturn absolute encoder
  • Shaft Type: With key and sealing ring
  • Winding Code: 144
