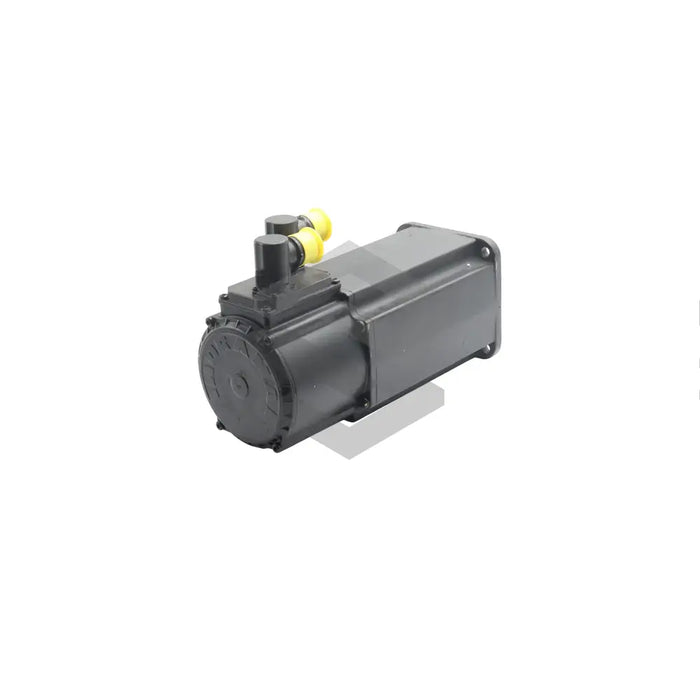

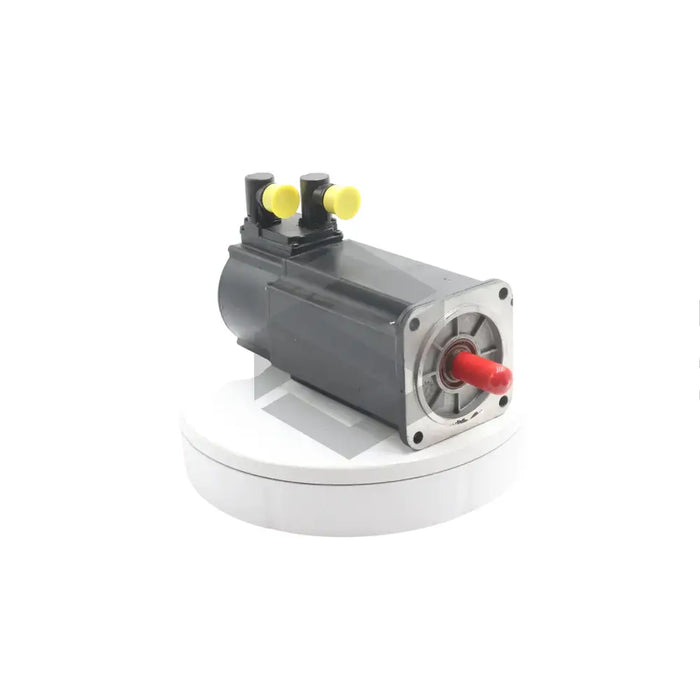

C image of MHD071B-035-NG2-UN | Front Right

MHD071B-035-NG2-UN

by Bosch Rexroth Indramat
$4,782.81 - $13,408.00
$4,782.81
$4,782.81 - $13,408.00
$4,782.81

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD071B-035-NG2-UN is a high performance, reliable synchronous motor designed for use in industrial automation tasks. Crafted to provide long-lasting service, the motor exhibits exceptional operational dependability even in fluctuating conditions. Key features include high-density permanent magnets for precise speed control, a characteristic speed of 4500 rpm with potential for a maximum of 6000 rpm, a peak current of 23.4 A, and 4-pole pairs. At a motor overtemperature of 60K, it delivers a rated torque of 1.6 Nm. Weighing just 6 kg, it's easy to handle and designed for flexible mounting. Furthermore, it's constructed with high temperature resistant F class insulation materials, and incorporates stator windings that dissipate heat rapidly. The motor shaft capably handles increased overload and can accommodate overhung installation of belt pulleys and pinions. It can be stored in temperatures between -20 °C to 80 °C and operates up to 1000 meters above sea level.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD071B-035-NG2-UN

Motor Type

Synchronous

Energy Source

Permanent magnets

Characteristic Speed

4500 rpm

Maximum Speed

6000 rpm

Peak Current

23.4 A

Torque Constant

0.76 Nm/A

Pole Pairs

4

Rated Speed

5000 rpm

Rated Torque

1.6 Nm

Weight

6 kg

Storage Temperature

-20 °C to 80 °C

Maximum Operational Height

1000 meters above sea level

Insulation Material

F class

Positioning

Flexible

Overhang Position

Yes

Shaft Load Tolerance

High.
