series image of MHD071B-035-NP1-UN

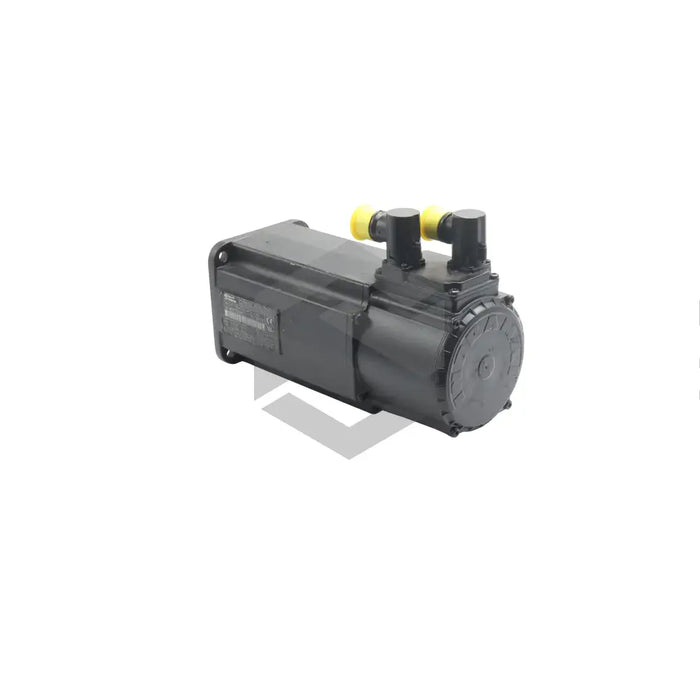

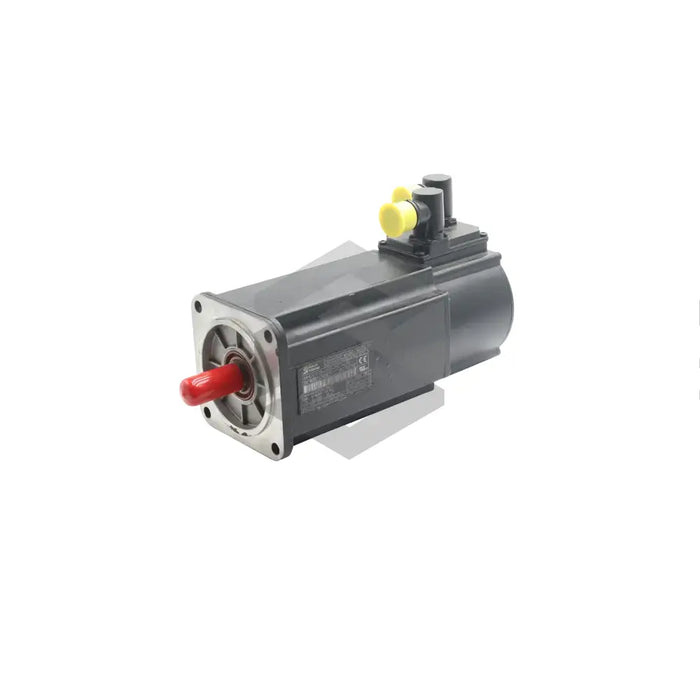

MHD071B-035-NP1-UN

by Bosch Rexroth Indramat
$14,543.98 - $14,543.98
$14,543.98
$14,543.98 - $14,543.98
$14,543.98
In Stock, Ships Today
The MHD071B-035-NP1-UN is a high-performance servo motor manufactured by Bosch Rexroth Indramat, intended for varied industrial uses including paper manufacturing, printing system, woodworking equipment, automation machinery, machine tools, and food processing machines. The motor's design ensures immense operational stability, even in unconventional environmental conditions, thanks to its IP 65 standard enclosure offering resistance against dust, debris, and oils. Optimal performances are guaranteed when paired with the manufacturer's drive controllers, enabling accurate positioning even during speed variation. This servo motor boasts a characteristic speed of 4500 rpm, achieves a continuous torque of 8 Nm at standstill mode with a motor overtemperature of 60 K, and 13.2 Nm at an overtemperature of 100 K. It is advisable to operate this model within 0 °C to 40 °C, achieving optimal results. Other specifications include a peak current of 50.5 A, torque constant of 0.77 Nm/A, maximum speed of 6000 rpm, and low rotor inertia for quickly initiating stop/start applications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Model: MHD071B-035-NP1-UN
  • Applications: Paper manufacturing machines, Paper printing systems, Woodworking equipment, Automation machinery, Machine tools, Food processing machines
  • Protection Rating: IP 65 standard enclosure
  • Characteristic Speed: 4500 rpm
  • Continuous Torque at 60 K Overtemperature: 8 Nm
  • Continuous Torque at 100 K Overtemperature: 13.2 Nm
  • Insulation Class: F
  • Recommended Operating Temperature Range: 0°C to 40°C
  • Peak Current: 50.5A
  • Torque Constant: 0.77 Nm/A
  • Max Speed: 6000 rpm
  • Rotor Inertia: low
