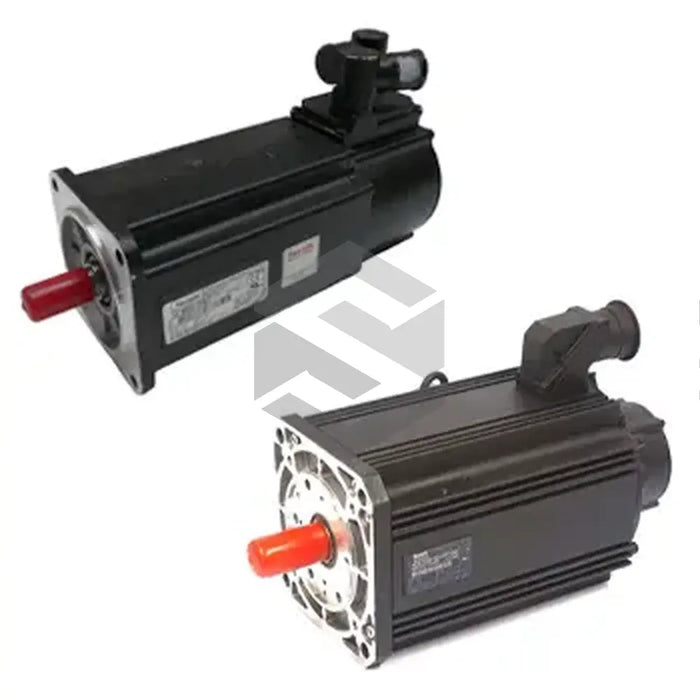

S image of MHD071B-035-PG2-UN

MHD071B-035-PG2-UN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MHD071B-035-PG2-UN is a high-functionality, cost-effective synchronous motor by Bosch Rexroth Indramat, specifically designed for sectors such as machine tools, printing, paper industries, handling, automation, and food packaging. Capitalizing on its brushless design and grease-lubricated bearings, it offers maintenance-free operation along with high operational reliability. The motor provides overload protection through motor temperature monitoring and exhibits high performance and dynamics. It operates at a rated speed of 2500 rpm and can reach a peak speed of 6000 rpm. This motor uses digital servo feedback with an integrated multiturn absolute encoder and a plain shaft with a sealing ring and a 6.5-Nm holding brake. With a protection class of IP 65, it houses a natural convective cooling mechanism. Theoretical maximum torque stands at 32 Nm. Operating restrictions apply, and only compatible accessories, cables, and lines should be used.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

MHD071B-035-PG2-UN

Motor Type

Synchronous

Operational Reliability

High

Operation

Maintenance-free

Overload protection

Yes

Performance Data

High

Dynamics

High

Peak Current

28.3 Amperes

Winding Inductivity

23.0 mH

Rated Speed

2500 rpm

Maximum Speed

6000 rpm

Rated Frequency

167 Hz

Motor Type

Permanent Magnet

Motor Frame Size

71

Motor Frame Length

B

Winding Code

035

Servo Feedback

Digital with integrated multiturn absolute encoder

Shaft Type

Plain with sealing ring

Holding Brake

6.5-Nm

Cooling System

Natural convective

Accessories

Must be used in conjunction with the related documentation

Usage Restriction

Cables and lines for this unit are restricted

Theoretical Maximum Torque

32 Nm

Protection Class

IP 65

Connectors Orientation

0 – 270 degrees adjustable
