series image of MHD071B-035-PG3-UN

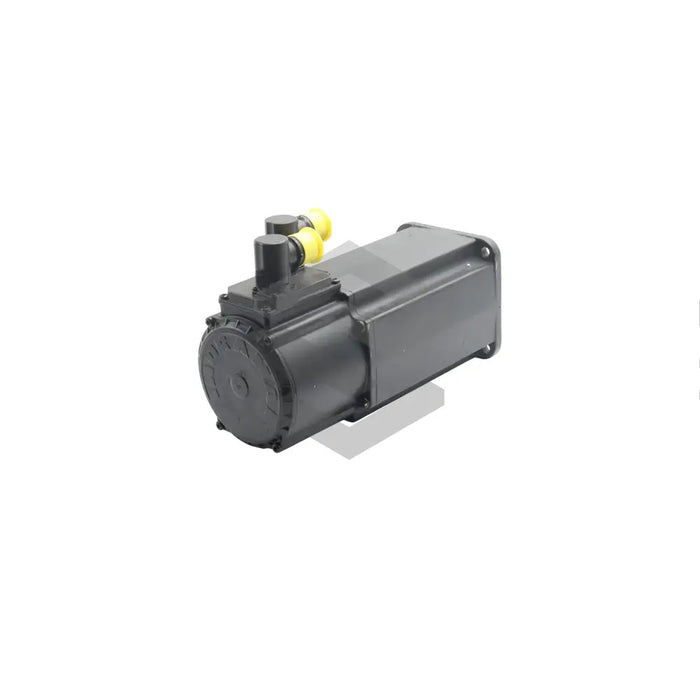

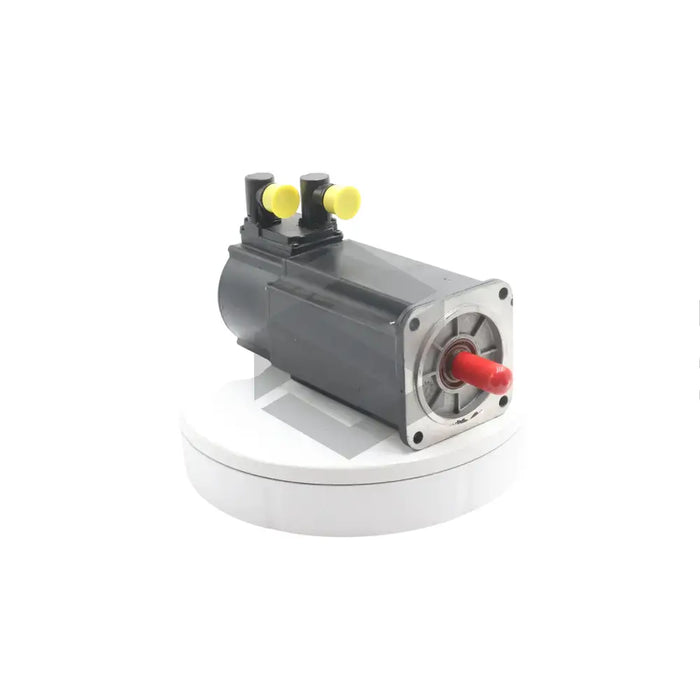

MHD071B-035-PG3-UN

by Bosch Rexroth Indramat
Request a quote
The MHD071B-035-PG3-UN, a synchronous motor manufactured by Bosch Rexroth Indramat, is designed for versatile applications in industries such as machine tools, paper and printing, automation, and food packaging. With a high degree of operational reliability and a no-maintenance operation, it provides a cost-efficient solution for automation needs. For optimum performance, it requires synergy with specified accessories. The motor's connectors can rotate between 0 and 270 degrees, allowing flexible installation. Notably, MHD motors have overload protection due to temperature monitoring, high performance ratings, and superior dynamics. The MHD071B-035-PG3-UN delivers rated speed of 2500 RPM, peak current of 28.3 amps, and operates at 167 Hz frequency. The motor frame size is 71 with a length of B and winding code 035. It employs digital servo feedback, an inbuilt multiturn absolute encoder, and DC 24V holding brake. Different configurations are available and the enclosure employs natural convection for cooling.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MHD071B-035-PG3-UN
  • Motor Type: Synchronous Motor
  • Application Areas: Machine tools, Printing and Paper industries, Handling and Automation, Food Packaging Equipment
  • Operational Reliability: High
  • Maintenance Requirement: None
  • Connector Rotation: 0 to 270 degrees
  • Overload Protection: Yes
  • Peak Current: 28.3 amps
  • Winding Inductance: 23.0 mH
  • Rated Speed: 2500 revolutions per minute
  • Maximum Speed: 6000 revolutions per minute
  • Rated Frequency: 167 Hz
  • Motor Type: Permanent Magnet Motor
  • Motor Frame Size: 71
  • Motor Length: B
  • Winding Code: 035
  • Feedback System: Digital Servo Feedback with incorporated multiturn absolute encoder
  • Shaft Type: Regular with sealing ring
  • Holding Brake: DC 24 V with 10 Nm torque
  • Cooling Mechanism: Natural Convection.
