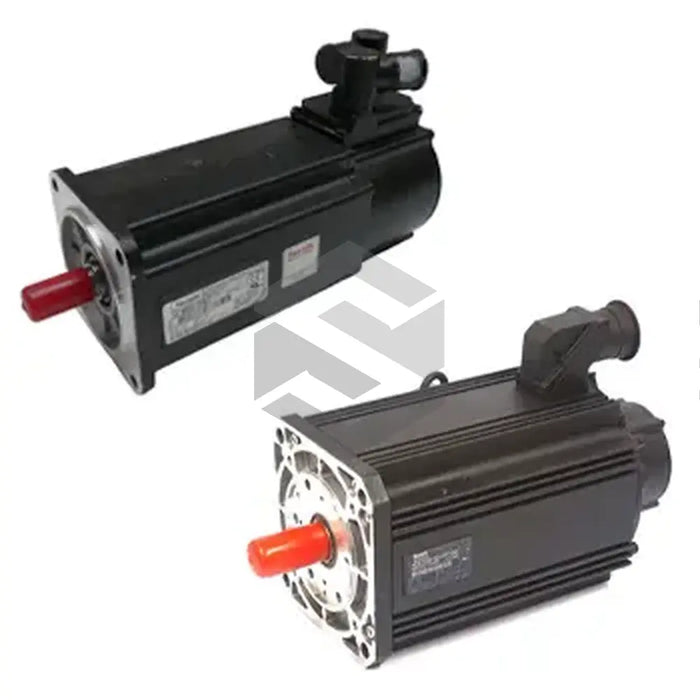

S image of MHD071B-035-PP2-UN

MHD071B-035-PP2-UN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Manufactured by Bosch Rexroth Indramat, the MHD071B-035-PP2-UN is a synchronous motor well-suited for wide-ranging applications including machine tools and in the paper and printing industry. Pairing it with digital intelligent drive controllers can streamline automation systems and enhance system performance. Known for its high dynamics, reliable operations, and overload protection, this motor unit delivers top-tier performance and prolonged maintenance-free usage. The flexibility of its power and feedback connectors allows up to 270° rotation. The motor operates at a characteristic speed of 2500 rpm, with a peak current of 28.3 A, and a maximum speed of 6000 rpm. Thanks to advanced magnet materials, this motor has reduced inertia masses increasing its efficiency. With a motor frame of size 71 and length B, it also employs a digital servo feedback mechanism and a multiturn absolute encoder for performance maximization. It comes equipped with a 24VDC holding brake and a shaft sealing ring using the DIN 6885-1 keyway standard.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MHD

Product Model

MHD071B-035-PP2-UN

Motor Type

Synchronous Motor

Applications

Machine tools, Printing and paper industries

Characteristic Speed

2500 rpm

Peak Current

28.3 A

Winding Resistance

4.57 ohm

Maximum Speed

6000 rpm

Motor Frame Size

71

Motor Frame Length

B

Winding Code

035

Feedback Mechanism

Digital Servo Feedback, Multiturn absolute encoder

Shaft

With key and shaft sealing ring as per DIN 6885-1

Holding Brake

DC 24 V, Torque of 6.5 Nm, Mass of 0.6 kg

Enclosure Cooling Mechanism

Natural Convection

Connectors' Rotation

Up to 270 degrees
