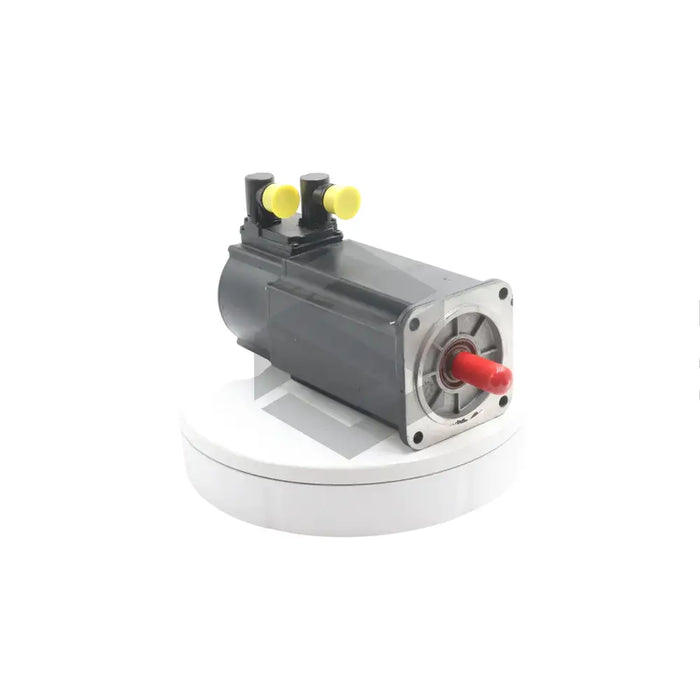

C image of MHD071B-035-PP3-UN | Front Right

MHD071B-035-PP3-UN

by Bosch Rexroth Indramat
$4,500.00 - $6,000.00
$4,500.00
$4,500.00 - $6,000.00
$4,500.00

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD071B-035-PP3-UN is a high-performance, synchronous servo motor within the MHD series. It employs a surface cooling system with an overtemperature of 60/100 K. The motor has a continuous standstill current of 9.5 A and a maximum current of 28.3 A. Key parameters at 20 degrees Celsius include a torque constant of 1.38 Nm/A, a winding resistance of 4.57 Ohm and a voltage constant of 125 V/1000rpm. The unit features a low inertia design due to unique magnet orientation and has four pole pairs. Its designated frame size is 071, indicating a flange size of 115mm and centering diameter of 95mm. The digital servo feedback encoder provides absolute position detection across 4096 revolutions. The motor is known for its high dynamics, easy cabling, high overload capacity, and reliable overload protection, making it ideal for use in industries such as food processing and handling and automation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MHD series

Model

MHD071B-035-PP3-UN

Cooling Mechanism

Surface cooling

Motor Overtemperature

60/100 K

Continuous Current at Standstill

9.5 A

Maximum Current

28.3 A

Torque Constant at 20°C

1.38 Nm/A

Winding Resistance at 20°C

4.57 Ohm

Voltage Constant at 20°C

125 V/1000rpm

Winding Inductivity

23.0 mH

Number of Pole Pairs

4

Rrated Speed

2500 rpm

Rated Torque

5.7 A

Insulation Class

F

Frame Size

071

Flange Size

115 mm

Centering Diameter

95 mm

Continuous Torque at Standstill

12 Nm

Winding Code

035

Encoder Type

Digital servo feedback with integrated multiturn absolute encoder

Output Shaft

Keyway with shaft sealing ring

Power and Feedback Connector

270o rotatable.
