MHD071B-061-NG0-UN

Original price $7,961.33 - Original price $7,961.33
Original price
$7,961.33
$7,961.33 - $7,961.33
Current price $7,961.33
In Stock, Ships Today
Request a quote

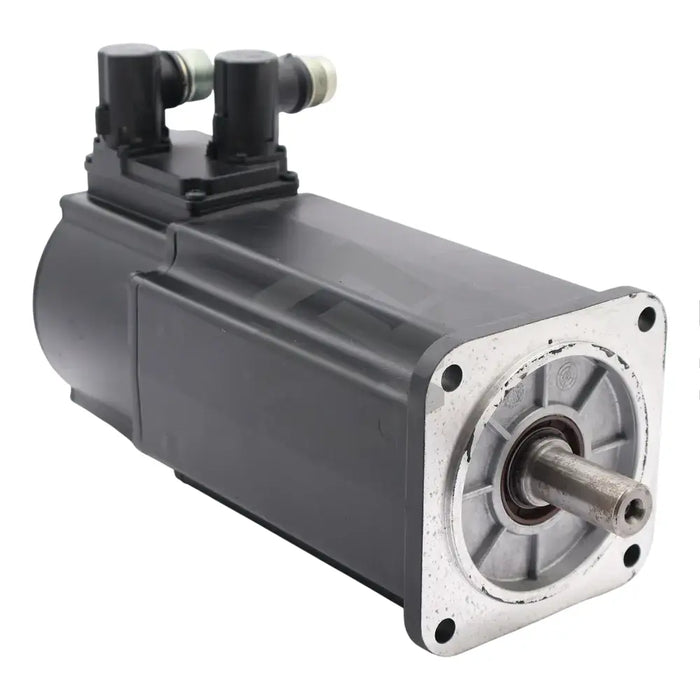

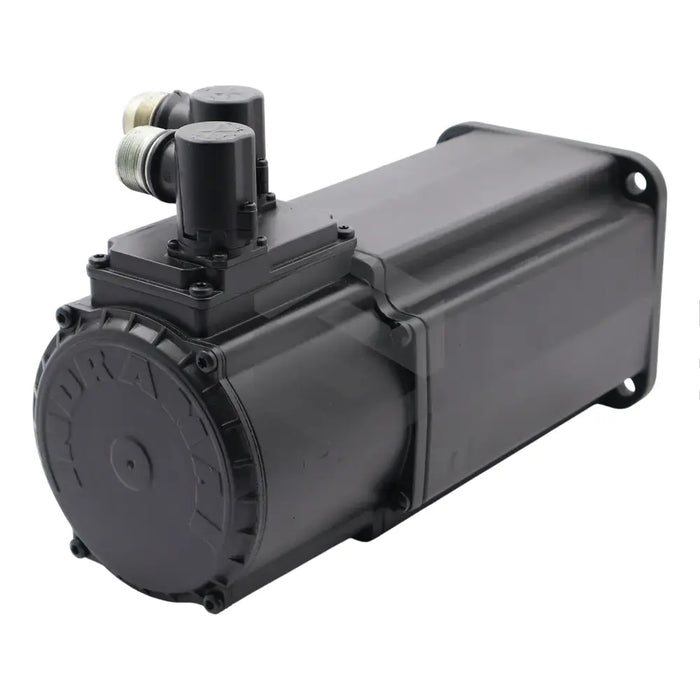

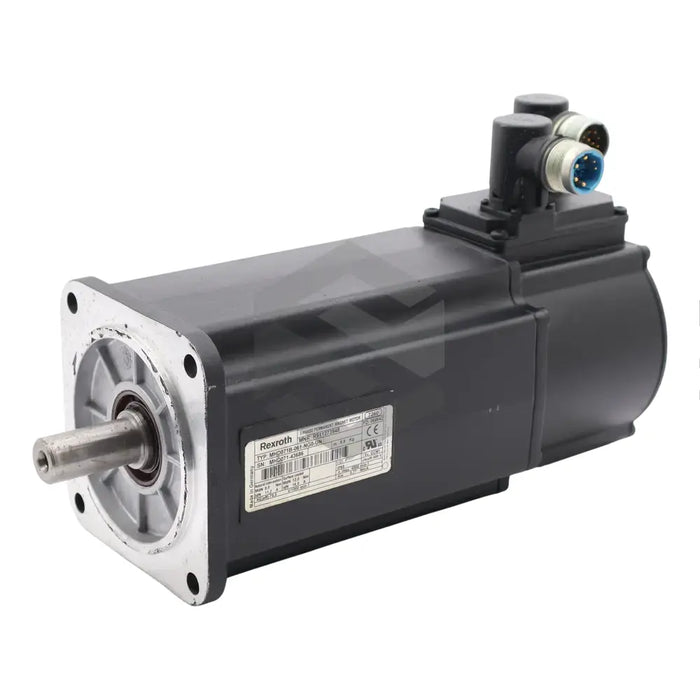

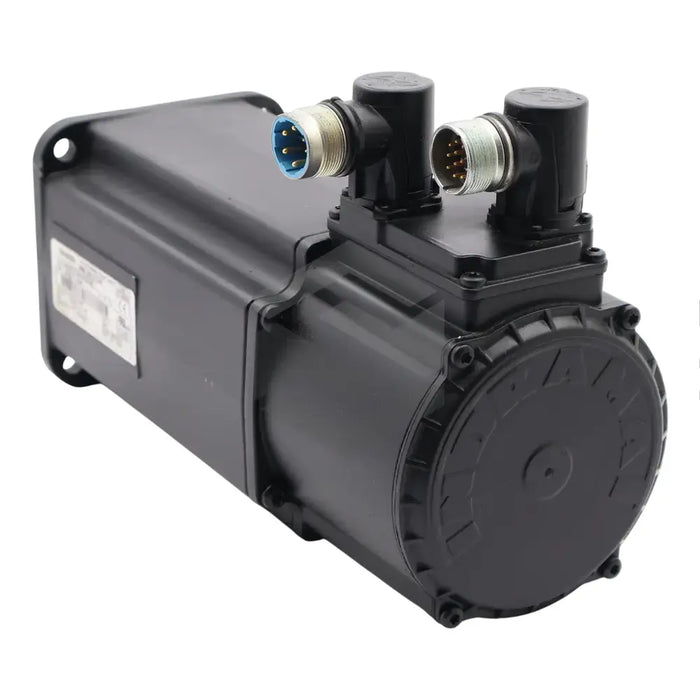

The MHD071B-061-NG0-UN synchronous motor, manufactured by Rexroth Indramat, belongs to the MHD product range. With a size of 071, this motor has a plain shaft featuring a sealing ring, and it uses a natural convection cooling method. It also includes digital servo feedback and a winding code of 061. An optional air sealing connector can be attached to prevent aggressive substances from entering the motor. This motor, coated with a prime coat resistant to weathering, diluted acids, and fading, can be mounted in three positions. It offers perks like easy cabling, quick startup, temperature monitoring, high resistance to harsh environments, and superior overload capability. The motor is designed with low inertia mass due to its special magnet materials. The operating conditions include a maximum installation height of 1000 meters, an operational temperature range of 0-40 degrees, and a storage temperature range of -20 to 80 degrees. Weighing 8.8 kg with a maximum speed of 6000 rpm, it has an IP 65 protection category.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MHD Product Group: Yes
  • Cooling System: Natural Convection
  • Shaft Type: Plain with sealing ring
  • Servo Feedback: Digital
  • Winding Code: 061
  • Motor Size: 071
  • Sealing Air Connector: Optional
  • Motor Flange Socket Replacement: Yes
  • Mounting Positions: IM B5, IM V1, IM V3
  • Housing Coat: Resistant to weathering, coloring, chalking, and diluted acids
  • Transport Position: Horizontal
  • Startup: Simple and quick
  • Overload Protection: Yes, temperature monitoring feature
  • Environmental Resistance: High
  • Overload Capability: High
  • Communtation: Electronic
  • Inertia Mass: Low
  • Maximum Setup Height: 1000 meters
  • Operating Temperature: 0 to 40 degrees
  • Storage Temperature: -20 to 80 degrees
  • Weight: 8.8 kg
  • Maximum Speed: 6000 rpm
  • Protection Category: IP 65.
