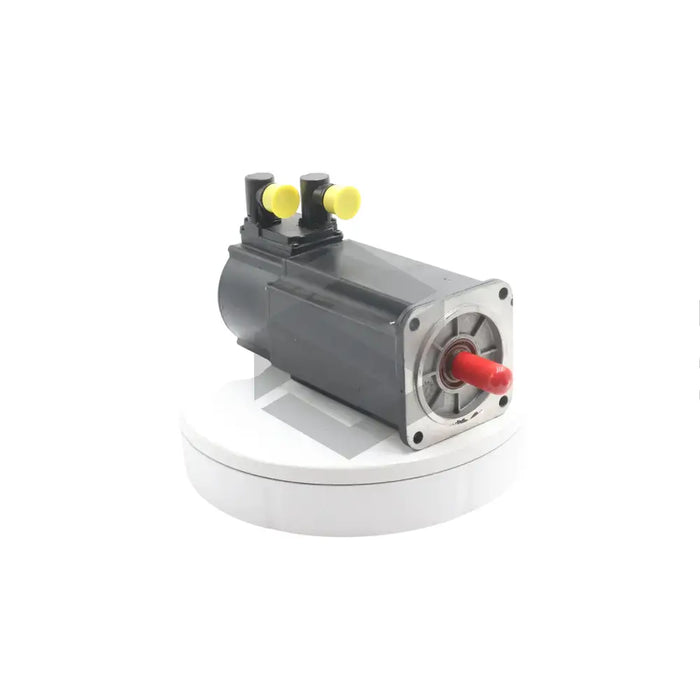

C image of MHD071B-061-NG0-UP | Front Right

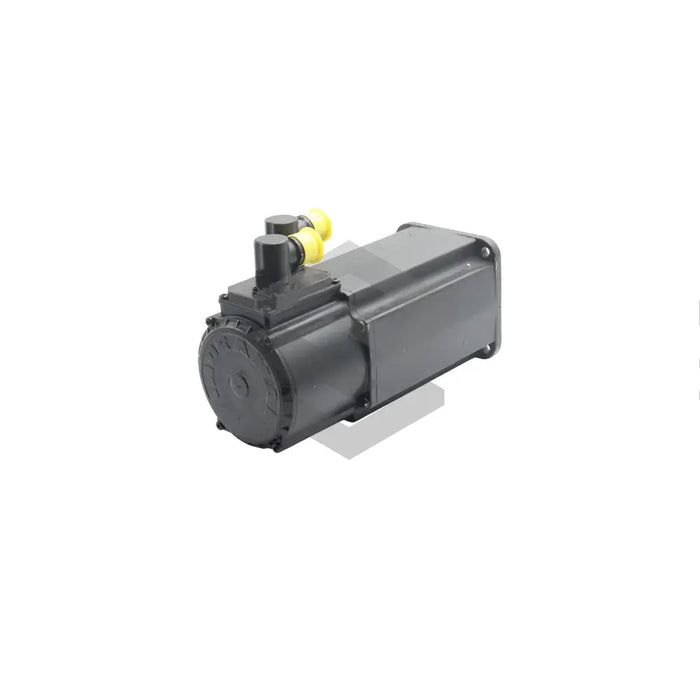

MHD071B-061-NG0-UP

by Bosch Rexroth Indramat
$13,087.80 - $13,087.80
$13,087.80
$13,087.80 - $13,087.80
$13,087.80

In Stock, Ships 1 - 3 Days

Bosch Rexroth Indramat's MHD071B-061-NG0-UP is a synchronous servo motor from the MHD series that benefits from a surface cooling system. The motor has an overtemperature of 60/100 K and a continuous current of 16.8A, with a maximum current of 50.5A. Providing a torque constant, winding resistance, and voltage constant of 0.77 Nm/A, 1.45 Ohm, and 70 V/1000rpm respectively at 20o C, it features winding inductivity of 7.2mH and four pole pairs. Operating at a rated speed of 5000 rpm, the MHD071B-061-NG0-UP has a rated torque of 7.8A and F grade insulation. Its construction is designed for natural convection cooling, suitable for applications such as food and paper processing machinery and automation handling. It comes equipped with a 6.5 Nm holding brake, digital servo feedback encoder, plain output shaft, shaft sealing ring, and rotatable connectors for power and feedback outputs. The motor frame size is 071, indicating a 115mm flange size and 95mm centering diameter.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MHD Series

Motor Type

Synchronous Servo Motor

Cooling System

Surface Cooling

Motor Overtemperature

60/100 K

Continuous Current

16.8 Amperes

Maximum Current

50.5 A

Torque Constant at 20C

0.77 Nm/A

Winding Resistance at 20C

1.45 Ohm

Voltage Constant at 20C

70 V/1000rpm

Winding Inductivity

7.2 mH

Pole Pairs

4

Rated Speed

5000 rpm

Rated Torque

7.8 A

Insulation Class

F

Housing Design

Built for Natural Convective Cooling

Benefits

Wide Dynamic Range, High Peak Torque Utilization, Ease of Cabling, High Overload Capacity, Overload Protection

Uses

Food Processing Machinery, Automation and Handling, Paper Processing Equipment

Limitations

Do Not Use Underwater or in Places with Extreme Temperature Changes

Holding Brake

6.5 Nm

Thermal Time Constant

20 minutes

Motor Frame Size

071

Flange Size

115 mm

Centering Diameter

95 mm

Encoder

Digital Servo Feedback Type

Output Shaft Type

Plain

Shaft Sealing Ring

Included

Connector Rotation

270 Degrees
