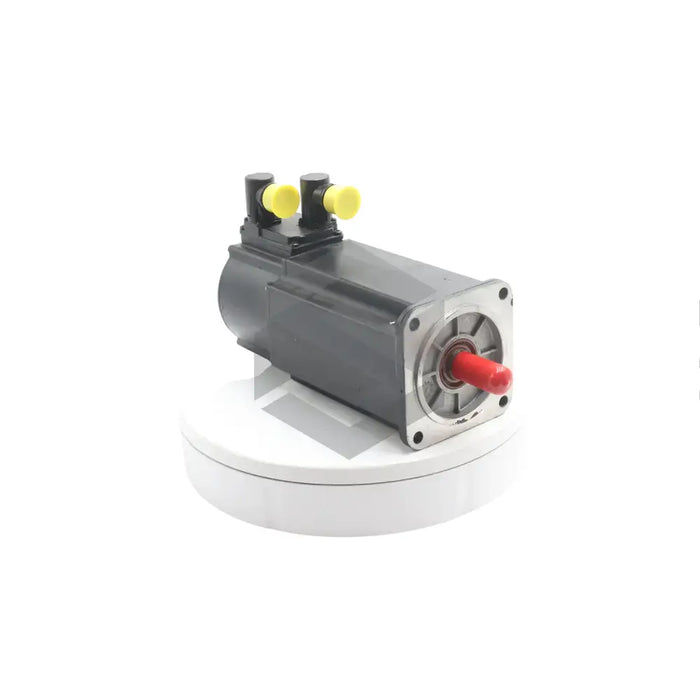

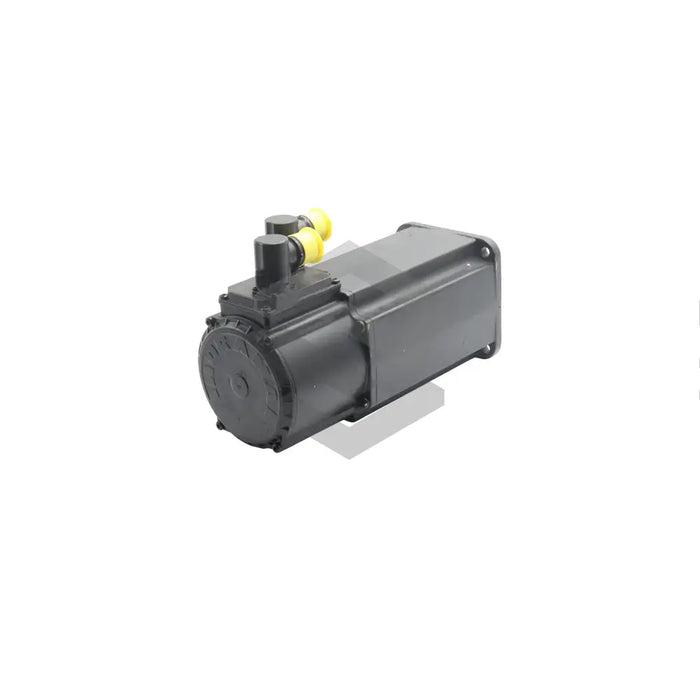

MHD071B-061-NG1-UN

Original price $8,344.00 - Original price $8,344.00
Original price
$8,344.00
$8,344.00 - $8,344.00
Current price $8,344.00
In Stock, Ships Today
Request a quote
The MHD071B-061-NG1-UN is a premium, efficient synchronous motor developed by Rexroth Indramat as part of their MHD series. When combined with digital drive controllers, it forms an effective automation system suitable for various applications in packaging, food processing, machine tools, and more. With features such as high operational reliability, maintenance-free construction, and capacity for continuous start-stop operation, it ensures high productivity. It consists of key components like a shaft, stator with winding, bearing, motor encoder, flange socket, shaft sealing ring, rotor equipped with permanent magnets, and holding brake. The MHD071B-061-NG1-UN presents natural convection cooling, an IP 65 protection and a housing secured with a black coating. With specific mechanical and electrical parameters, this motor functions under stated environmental conditions. Stellar highlights include a maximum speed of 6000 RPM, a moment inertia of 8.7 x 10-4, rated torque of 5.3Nm, rated current of 5.5 A and a rated voltage of 368 V.
30 Day Warranty
Technical Specifications
  • Product Type: MHD071B-061-NG1-UN Synchronous Motor
  • Rexroth Indramat Series: MHD
  • Cooling Type: Natural Convection
  • Protection Rating: IP 65
  • Housing Coating: Prime Black
  • Time Constant: 45 min
  • Theoretical Maximum Torque: 32.0Nm
  • Moment Inertia: 8.7 x 10-4
  • Maximum Speed: 6000 RPM
  • Operating Temperature: 0 to 40 degrees
  • Storage Temperature: -20 to 80 degrees
  • Installation Altitude: Up to 1000 meters
  • Permissible Humidity: 95% without condensation
  • Continuous Torque at Standstill: 9.0Nm
  • Continuous Current at Standstill: 13.2 A
  • Peak Current: 50.5 A
  • Rated Speed: 5000 RPM
  • Rated Torque: 5.3Nm
  • Rated Current: 5.5 A
  • Rated Voltage: 368 V
  • Motor Size: 071
  • Winding Code: 061
  • Feedback Type: Digital Servo Feedback
  • Shaft Type: Plain with Sealing Ring
  • Holding Brake: 5.0 Nm
