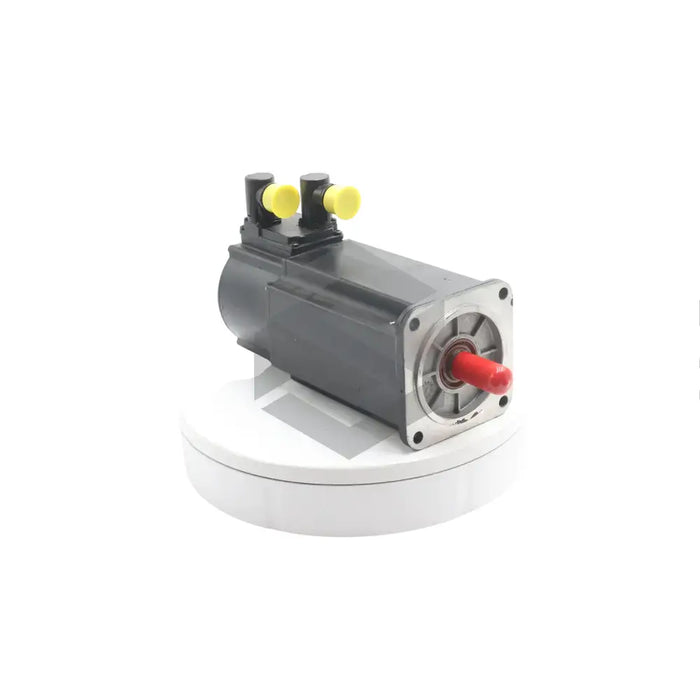

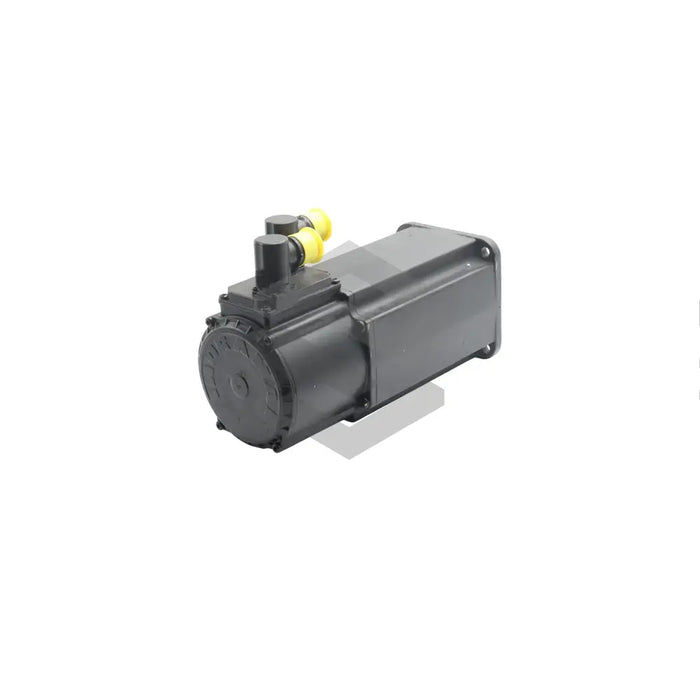

C image of MHD071B-061-NG3-UN | Front Right

MHD071B-061-NG3-UN

by Bosch Rexroth Indramat
$12,889.80 - $12,889.80
$12,889.80
$12,889.80 - $12,889.80
$12,889.80

In Stock, Ships 1 - 3 Days

The MHD071B-061-NG3-UN, a product of Bosch Rexroth Indramat, is a Rexroth MHD series synchronous servo motor designed with a frame size of 071, a 115-mm motor flange size and a 95-mm centering diameter. Equipped with a digital servo feedback, it possesses a plain motor shaft and a sealing ring that helps to avert oil leakage and block harmful external contaminants from damaging important parts. Its power connector can pivot to 270 degrees, and is housed in a structure engineered for natural convection or surface cooling. Having a protection rating of IP65, it offers safety from dust and low-pressure water jets, managing an operational temperature range of 0 to 40 degrees Celsius. This motor, weighing 8.8 kilograms, comes together with an integrated holding brake that provides a 10 Nm holding torque and a characteristic motor speed of 4500 RPM. The motor is designed to perform efficiently up to a maximum altitude of 1000 meters above sea level.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Rexroth MHD series synchronous servo motor

Model

MHD071B-061-NG3-UN

Frame Size

071

Motor Flange Size

115 millimeters

Centering Diameter

95 millimeters

Frame Length

B

Winding Code

061

Servo Feedback

Digital

Motor Shaft

Plain with sealing ring

Power Connector

Can be rotated 270 degrees

Cooling Type

Natural convection or surface cooling

Working Temperature Range

0 to 40 degrees Celsius

Protection Rating (Motor Housing)

IP65

Mounting Position

Outside cabinets and near operating machines

Integrated Holding Brake

10 Nm holding torque

Characteristic Speed

4500 RPM

Rated Speed (60 K conditions)

4000 RPM

Rated Speed (100 K conditions)

5000 RPM

Maximum Speed

6000 RPM

Weight

8.8 kilograms

Maximum Setup Altitude

1000 meters above sea level

Pre-use Requirements

Proper mounting and electrical connection, rotor manually turnable when holding brake is open, protective conductor / grounding properly connected.
