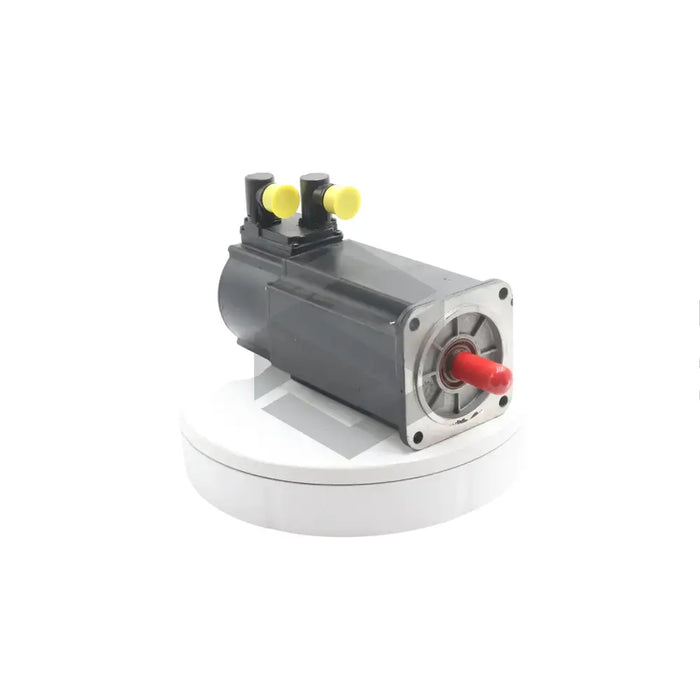

C image of MHD071B-061-NP2-UN | Front Right

MHD071B-061-NP2-UN

by Bosch Rexroth Indramat
$6,439.29 - $12,830.40
$6,439.29
$6,439.29 - $12,830.40
$6,439.29

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD071B-061-NP2-UN is a high-performing synchronous motor within the Rexroth MHD series. Designed for use in conjunction with digital intelligent drive controllers, such motors are a versatile addition to automation solutions in industries such as machine tools, food packaging, and paper. MHD motors shine with their high reliability, overload protection, maintenance-free operation, and effortless installation in any orientation. The MHD071B-061-NP2-UN model offers a motor frame size of 71 and motor frame length of B, motor shaft with keyway per DIN 6885-1, and a shaft sealing ring. The motor's electric power connector is adjustable by 270 degrees and it has an integrated holding brake rating of 6.5 Nm. This motor is designed for natural convection or surface cooling with an operating temperature range of 0 to 40 degrees Celsius and a storage temperature range of -20 to 80 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Series

MHD Synchronous Motor

Use Case

Industrial applications like machine tools, food packaging and paper industries

Features

High reliability, maintenance free operation, overload protection, high overload capability, installation in any orientation, easy cabling, and simple and fast startup

Motor Type

Permanent magnet motors with electronic commutation

Motor Frame Size

71

Motor Frame Length

B

Feedback Type

Digital servo feedback

Motor Shaft

Keyway per DIN 6885-1 with shaft sealing ring

Power Connector

270 degrees turnable

Integrated Brake

6.5 Nm

Cooling

Natural convection or surface cooling

Motor Speed (Characteristic)

4500 RPM

Peak Current Rating

50.5 Amps

Torque Constant (at 20 degrees Celsius)

0.77 Nm/A

Voltage Constant (at 20 degrees Celsius)

70.0 Volts/1000 RPM

Winding Resistance (at 20 degrees Celsius)

1.45 Ohms

Winding Inductivity

7.2 mH

Moment of Inertia of the Rotor

8.7 x 10-4 kg m2

Theoretical Maximum Torque

32 Nm

Maximum Speed

6000 RPM

Motor Mass

8.8 kilograms

Storage and Transport Temperature Range

-20 to 80 degrees Celsius

Operating Temperature Range

0 to 40 degrees Celsius

Maximum Allowable Installation Height

1000 meters above sea level.
