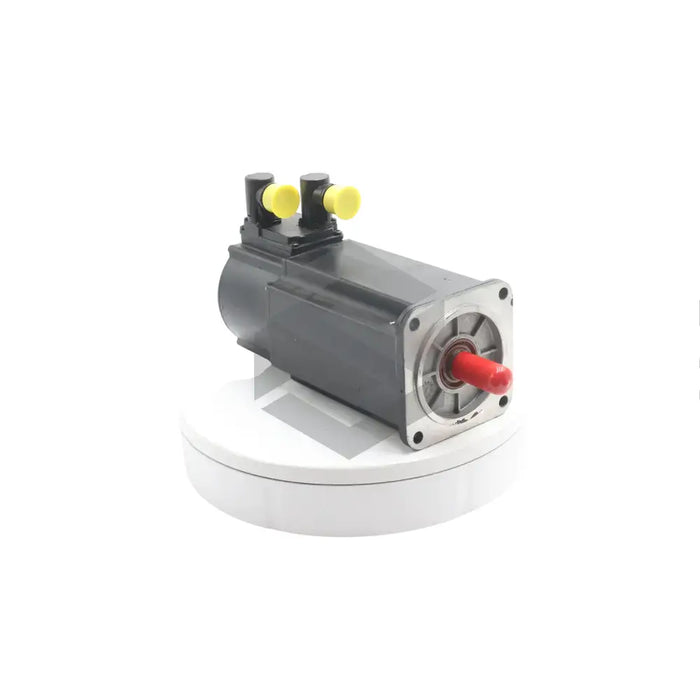

C image of MHD071B-061-NP3-UN | Front Right

MHD071B-061-NP3-UN

by Bosch Rexroth Indramat
$14,817.56 - $14,817.56
$14,817.56
$14,817.56 - $14,817.56
$14,817.56

In Stock, Ships 1 - 3 Days

The MHD071B-061-NP3-UN, a product of Bosch Rexroth Indramat, is from the MHD series of synchronous motors characterized by a frame size of 71 (115mm flange size, 95mm centering diameter), and a frame length of B yielding 8.0 Nm continuous torque. The unit integrates a digital servo feedback encoder for relative position detection and has a motor shaft with keyway and shaft sealing ring for connection to machine elements. It possesses a 10 Nm holding brake rated at 24 Volts DC and 0.65 Amps which secures the servo axis when de-energized. This motor (with connector rotatable by 270 degrees) is suited for ambient temperatures from -20 to 80 degrees Celsius when stored, and 0 to 40 degrees Celsius under load, with a design incorporating surface cooling and natural convection. With an IP65 environmental protection rating and class F insulation, the installation is recommended below 3280 feet altitude, by trained personnel for optimal operation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

MHD071B-061-NP3-UN

Series

MHD series synchronous motor

Frame Size

71

Flange Size

115 millimeters

Centering Diameter

95 millimeters

Frame Length

B

Continuous Torque at Standstill

8.0 Nm

Encoder System

Integrated for digital servo feedback

Motor Shaft Feature

Keyway and shaft sealing ring

Holding Brake

Available

Holding Torque

10 Nm

Brake Voltage

24 Volts DC

Brake Amps

0.65 Amps

Brake Moment of Inertia

10.7 x 10-4 kg m2

Brake Connection Time

26 milliseconds

Brake Disconnection Time

43 milliseconds

Brake Weight

0.7 kilograms

Power Connector Orientation

270 degrees rotatable

Storage Ambient Temperature Range

-20 to 80 degrees Celsius

Operating Ambient Temperature Range

0 to 40 degrees Celsius

Cooling Type

Surface cooling and natural convection

Environmental Protection Rating

IP65

Insulation Class

F

Maximum Installation Altitude

3280 feet
