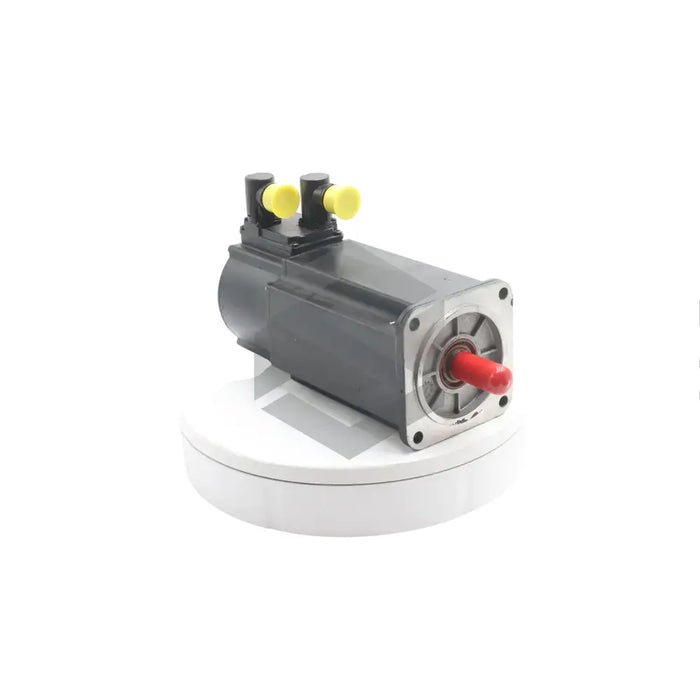

C image of MHD071B-061-PG0-UP | Front Right

MHD071B-061-PG0-UP

by Bosch Rexroth Indramat
$13,068.00 - $13,068.00
$13,068.00
$13,068.00 - $13,068.00
$13,068.00

In Stock, Ships 1 - 3 Days

The MHD071B-061-PG0-UP is a synchronous motor in the MHD series, produced by Bosch Rexroth Indramat. The motor possesses various parameters differing based on overtemperature conditions. At 60K, it offers 8Nm continuous torque, 11.2A continuous current, 50.5A peak current, and 1.7Nm rated torque. At 100K, the continuous torque and current rise to 9Nm and 13.2A respectively, with a rated torque of 5.3Nm. The maximum theoretical torque is 32Nm, and this 4 pole pairs unit delivers a rated maximum speed of 6000 RPM. The MHD071B-061-PG0-UP also includes a digital servo feedback system with an integrated multiturn absolute encoder. The housing is designed for natural convection or surface cooling, and the plain shaft includes a sealing ring. Options for a separately ordered holding brake and sealing air connectors are available.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MHD series

Model

MHD071B-061-PG0-UP

Motor Type

synchronous motor

60K Over Temp. Continuous Torque Standstill

8 Nm

60K Over Temp. Continuous Current Standstill

11.2 Amps

Peak Current

50.5 Amps

60K Over Temp. Rated Speed

4000 RPM

60K Over Temp. Rated Torque

1.7 Nm

60K Over Temp. Rated Current

1.7 Amps

60K Over Temp. Output Power

0.8 kilowatts

60K Over Temp. Rated Voltage

283 Volts

60K Over Temp. Rated Frequency

267 Hertz

100K Over Temp. Continuous Torque Standstill

9 Nm

100K Over Temp. Continuous Current Standstill

13.2 Amps

100K Over Temp. Rated Speed

5000 RPM

100K Over Temp. Rated Torque

5.3 Nm

100K Over Temp. Rated Current

5.5 Amps

100K Over Temp. Output Power

3.4 kilowatts

100K Over Temp. Rated Voltage

368 Volts

100K Over Temp. Rated Frequency

333 Hertz

Theoretical Max Torque

32 Nm

Number of Pole Pairs

4

Inductivity

7.2 millihenry

Resistance at 20 Celsius

1.45 Ohms

Voltage Constant at 20 Celsius

0.77 Nm/A

Max Speed

6000 RPM

Feedback Type

digital servo feedback with integrated multiturn absolute encoder

Cooling Type

natural convection or surface cooling

Shaft Type

plain with a sealing ring

Hold Brake Available

Yes (order separately)

Hold Brake Torque Options

5Nm, 6.5Nm, 10Nm

Sealing Air Connectors

Optional, protects motor against oils and coolants
