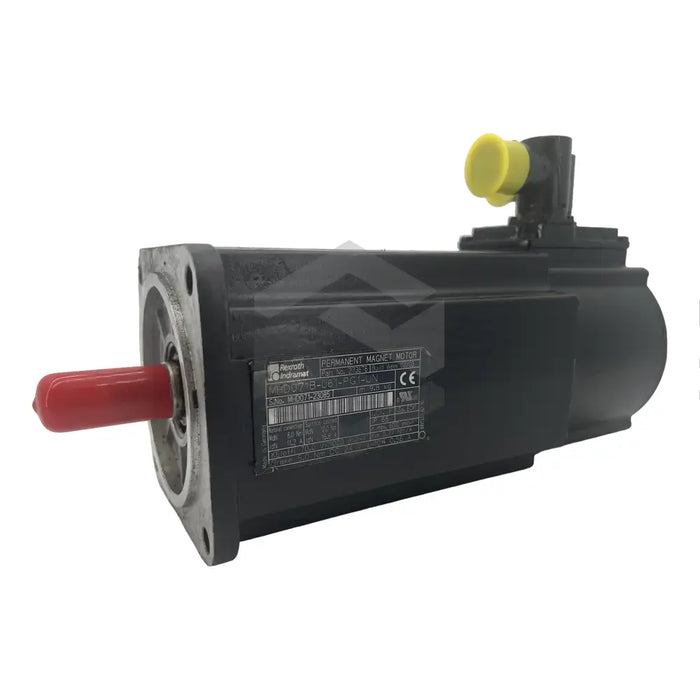

product Main (Front Left) image of MHD071B-061-PG1-UN

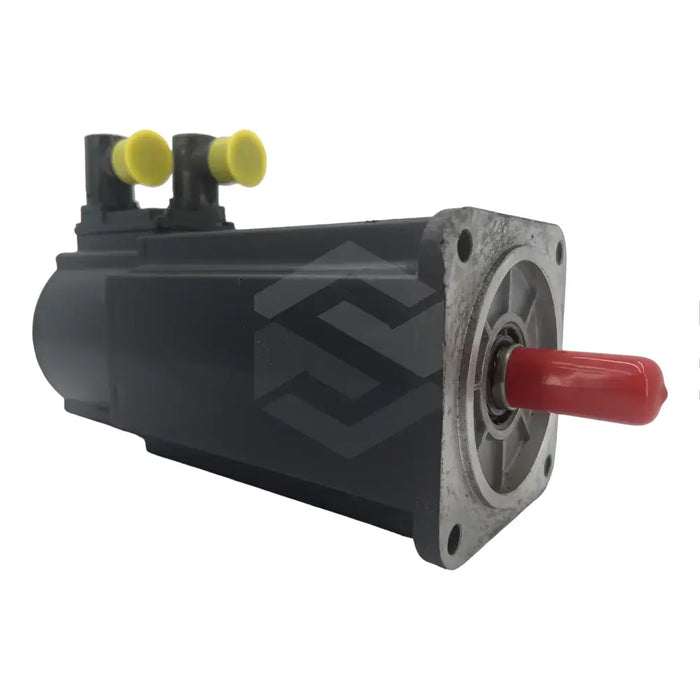

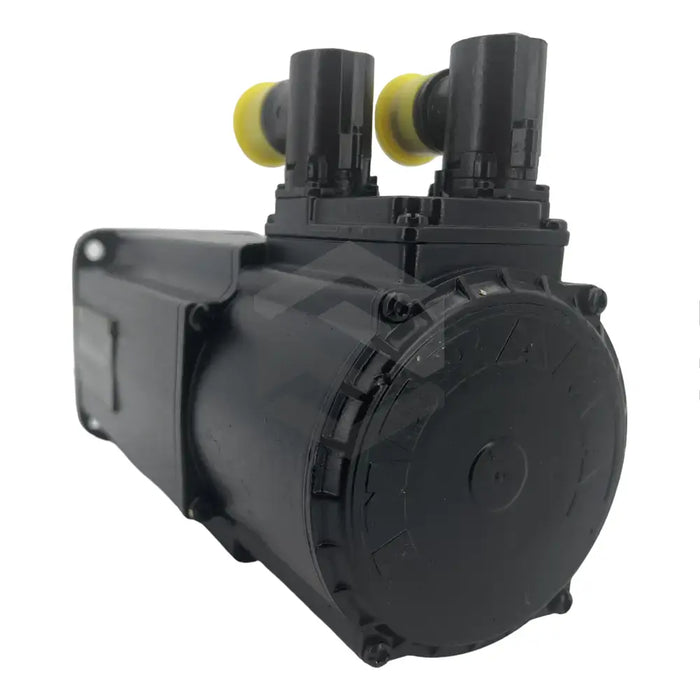

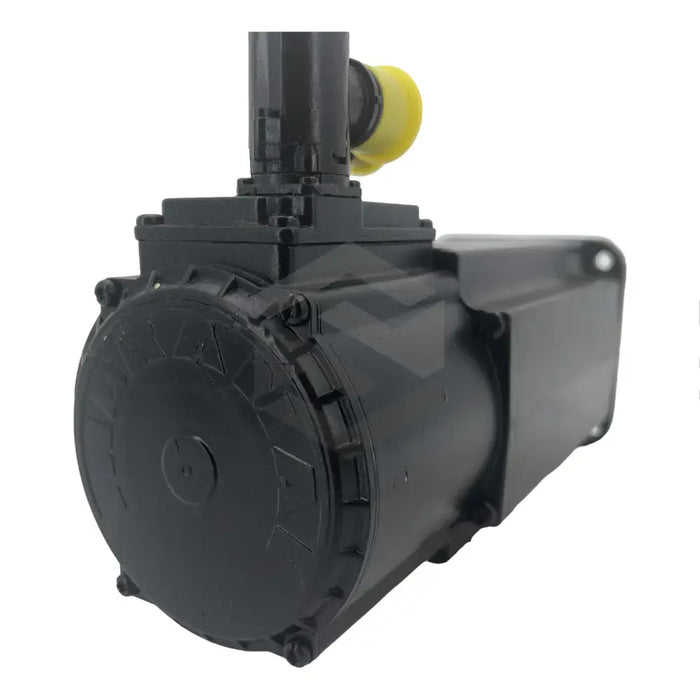

MHD071B-061-PG1-UN

by Bosch Rexroth Indramat
$6,347.33 - $6,347.33
$6,347.33
$6,347.33 - $6,347.33
$6,347.33
In Stock, Ships Today
The MHD071B-061-PG1-UN, part of the MHD series by Bosch Rexroth Indramat, is a top-rated synchronous motor known for boosting efficiency and cost-effectiveness in automation systems across various industries, including aerospace, paper and printing, machine tools, food packaging, equipment handling and robotics. With a characteristic speed of 4500nk/min and a 22 Nm holding brake, its design demands optimum functionality. The motor delivers a torque varying from 3.5 Nm at standstill to 4.0 Nm at full load under natural-convection cooling. If liquid cooling is utilized, the torque characteristics slightly change. While at standstill under natural cooling, the motor's continuous current rating oscillates between 5.2A to 5.9A, keeping the temperature at a comfortable 20°C. Under typical load conditions with natural cooling, the motor performs at rated data of 5000 min-1 and a torque between 1.6 to 3.2 Nm, delivering an output of 1.1kW to 2.1kW, making it robust, versatile, and reliable.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MHD-Series: MHD071B-061-PG1-UN
  • Speed: 4500nk/min
  • Holding Brake: 22 Nm
  • Cooling System: Convection
  • Standstill Torque: 3.5 Nm
  • Full Load Torque: 4.0 Nm
  • Continuous Current (Standstill): 5.2Amps to 5.9Amps
  • Peak Current Temperature: 20 °C
  • Rated Speed: 5000 min-1
  • Rated Torque: 1.6 to 3.2 Nm
  • Rated Current: 1.7 Amps to 3.3 Amps
  • Rated Output Performance: 1.1 kW to 2.1 kW.
