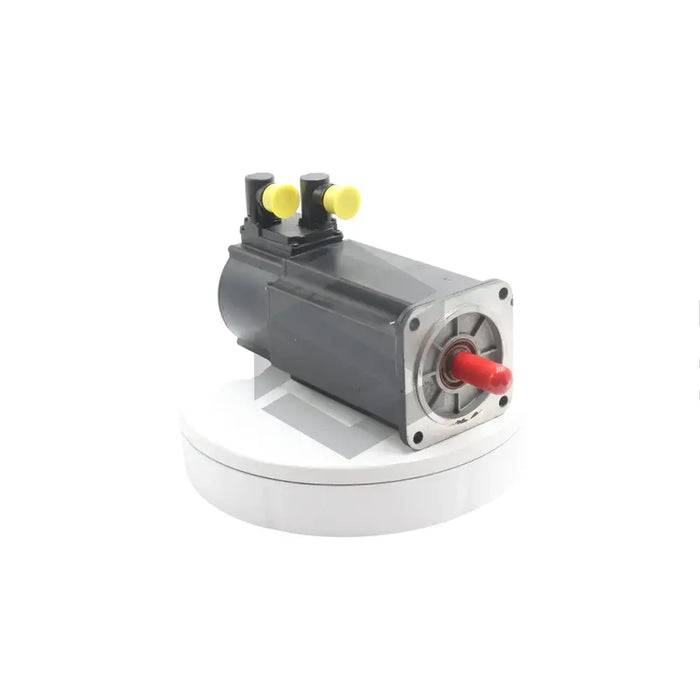

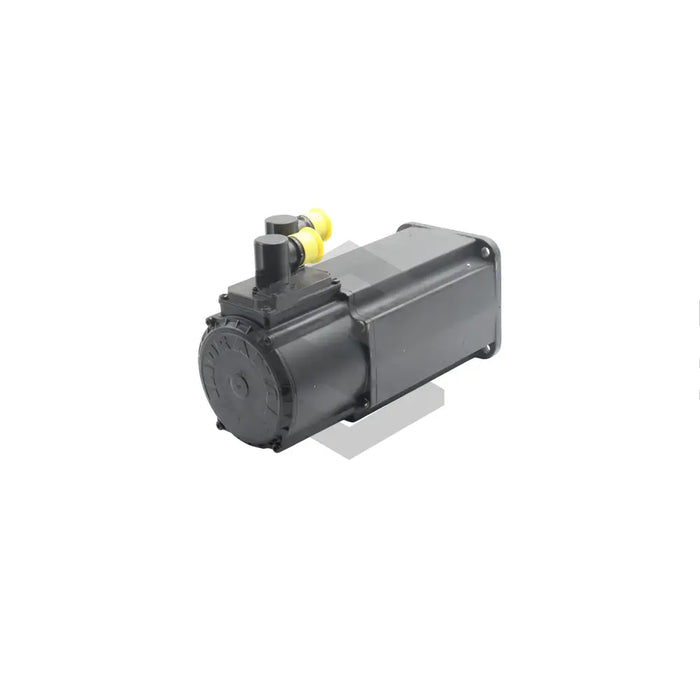

Bosch Rexroth Indramat's MHD071B-061-PP3-UN is a leading-edge brushless servo motor, renowned for its reliable, maintenance-free operation and high-power efficiency. Equipped with a keyway-type shaft, this robust motor operates via an electrically operational 24VDC holding brake. The motor generates an impressive torque of 8.0 Nm, consuming a steady current of 11.2 Amperes with a 60K increase in housing temperature. When the winding temperature increases to 100K, the current consumption adjusts to 13.2 Amperes, and the continuous torque generated moves to 9.0 Nm. Additionally, the servo motor houses 4 pole pairs, a surface-based cooling system maintaining a permissible ambient 0 – 40 degree Celsius range, and rolls up to 6000 revolutions per minute. Enclosed in an IP 65 category housing and with a compact weight of 8.8 kg, the motor is well protected against dust and water. Plus, it features 270-degree rotatable connectors and F insulation class to withstand up to 105-degree Celsius temperature as per DIN VDE standards. This standard design synchronous motor is globally shipped by Servo Supplier.
30 Day Warranty
Technical Specifications
