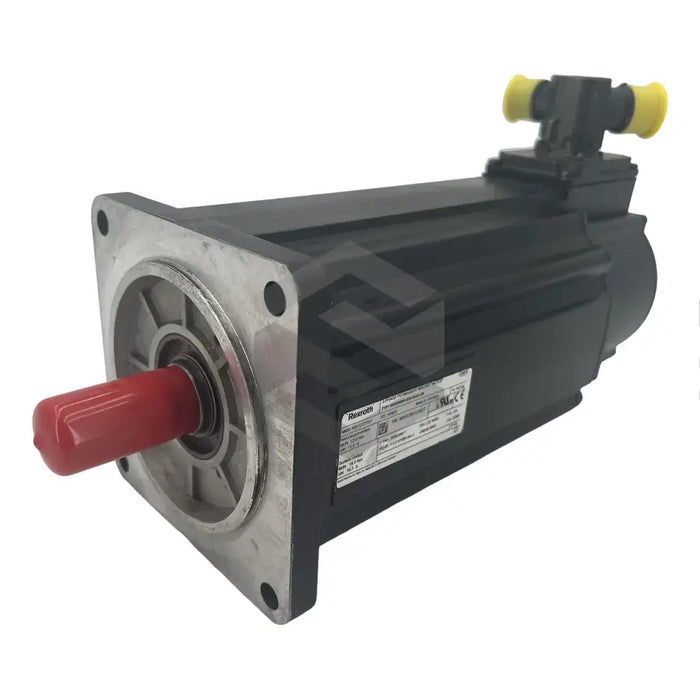

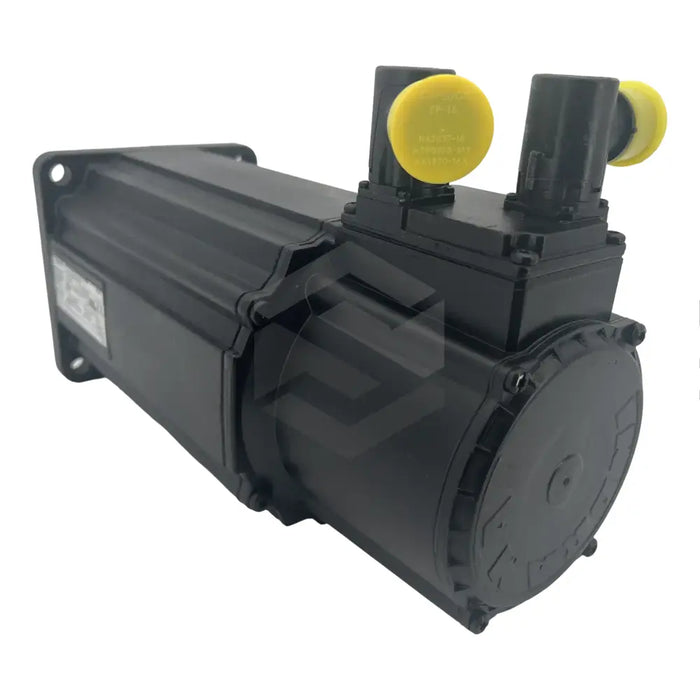

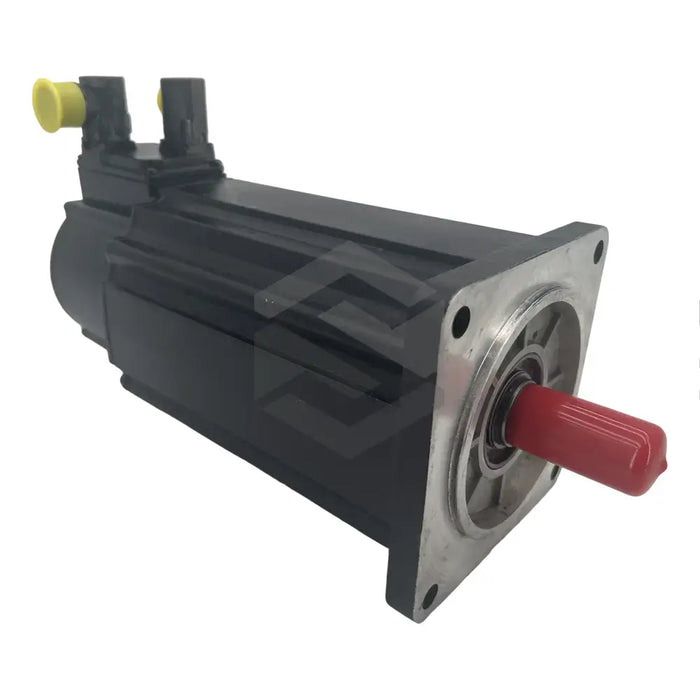

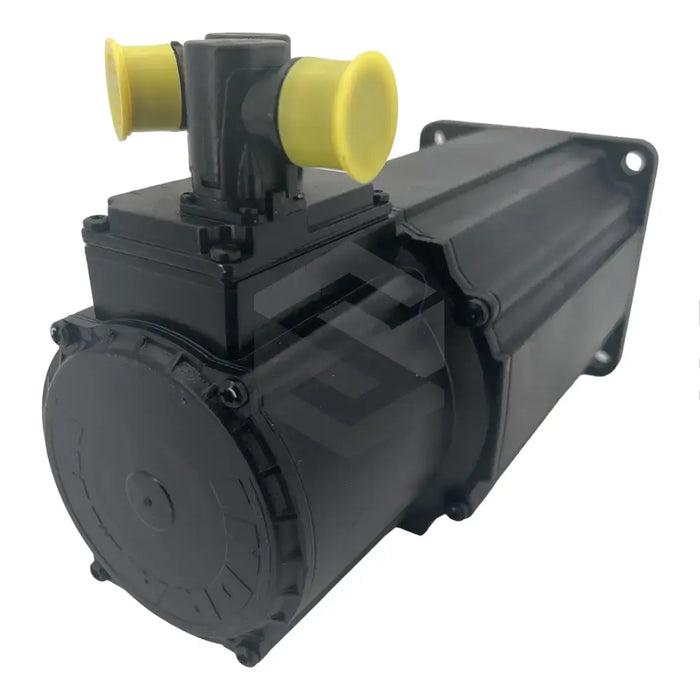

MHD090B-035-NG0-UN

Original price $20,515.95 - Original price $20,515.95
Original price
$20,515.95
$20,515.95 - $20,515.95
Current price $20,515.95
In Stock, Ships Today
Request a quote
Produced by Bosch Rexroth Indramat, the MHD090B-035-NG0-UN is an advanced automation and engineering product, designed with careful mechanical sourcing and cutting-edge technologies. Suitable for diverse settings, it adheres to strict technical details and environmental conditions for transport, storage, and installation. It operates effectively using different cooling systems - natural, liquid, or surface, ensuring optimal ambient temperatures and performance. Key distinguishing features include a motor speed of 2500 min-1 and a static continuous torque ranging between 12 -13.5 Nm for natural cooling and 16.5Nm for surface cooling. Its peak current capacity stands at 49.5A regardless of the cooling method. Other specifications include torque constant at 1.22 Nm/A, a constant voltage of 111.0 V/1000min-1, winding resistance of 1.88 Ohms, and winding inductivity of 15.5mH. For optimal functionality, it requires four pairs of poles and maintains a rated speed of 3000 min-1.
30 Day Warranty
Technical Specifications
  • Product Brand: Bosch Rexroth Indramat
  • MHD Series Model: MHD090B-035-NG0-UN
  • Cooling Methods: Natural, liquid, surface
  • Over-Temperature: 60K/100 (Liquid or Surface Cooling), 60K to 100K (Natural Cooling)
  • Motor Speed: 2500 min-1
  • Stationary Continuous Torque: 12 -13.5 Nm (Natural Cooling), 16.5Nm (Surface Cooling), Unavailable (Liquid Cooling)
  • Peak Current: 49.5A
  • Stationary Continuous Current: 11A -12.5A (Natural Cooling), 16.5 A (Surface Cooling)
  • Torque Constant at 20 °C: 1.22Nm/A
  • Constant Voltage: 111.0 V/1000min-1
  • Winding Resistance: 1.88 Ohms
  • Winding Inductivity: 15.5mH
  • Pairs of Poles: 4
  • Rated Torque: 7.2 Nm -10.2 Nm (Natural Cooling), 15.0Nm (Surface Cooling)
  • Rated Speed: 3000 min-1
  • Rated Current: 4.7-6.7A (Natural Cooling), 9.7A (Surface Cooling)
