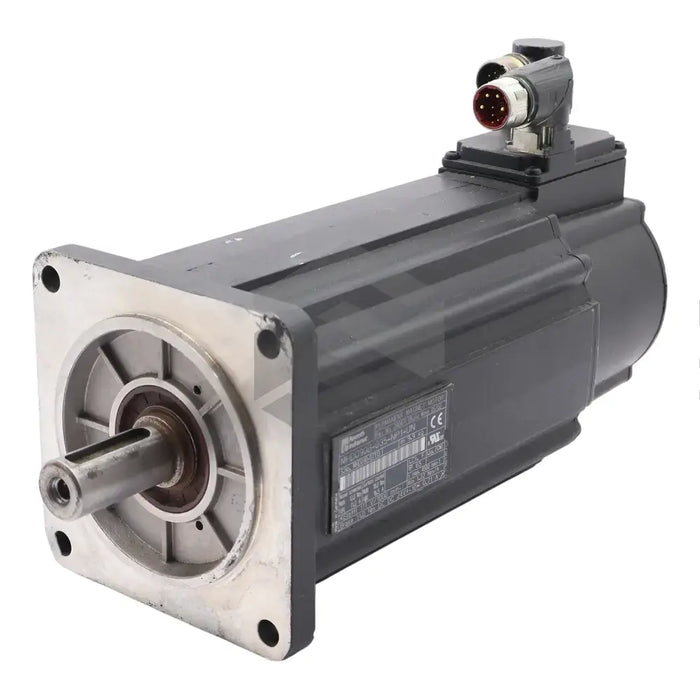

C image of MHD090B-035-NP1-UN | Main (Front Left)

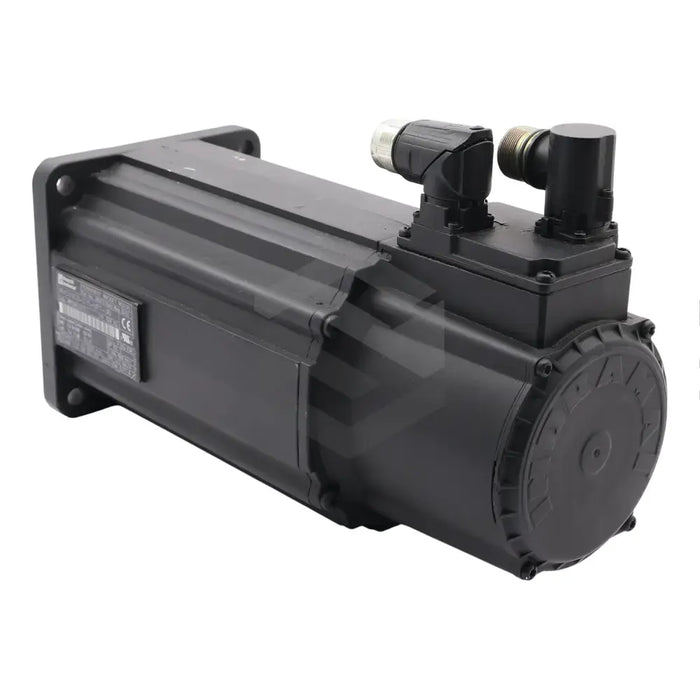

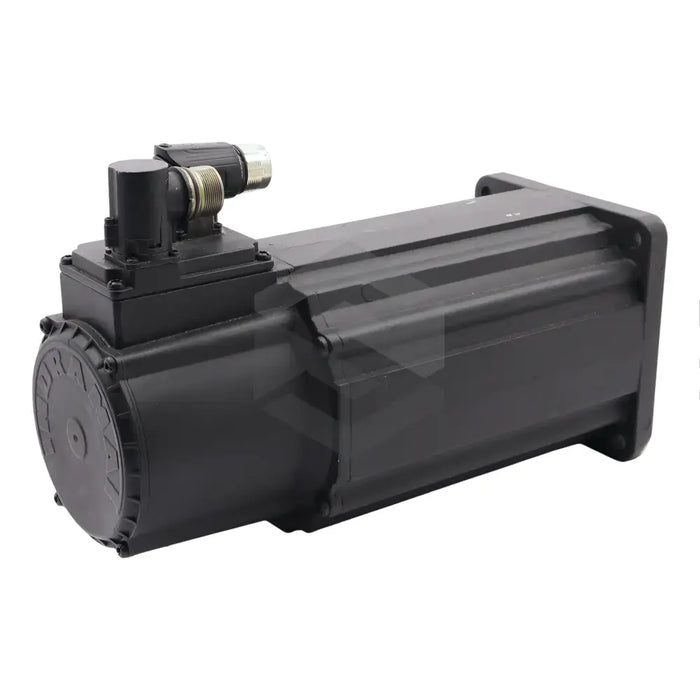

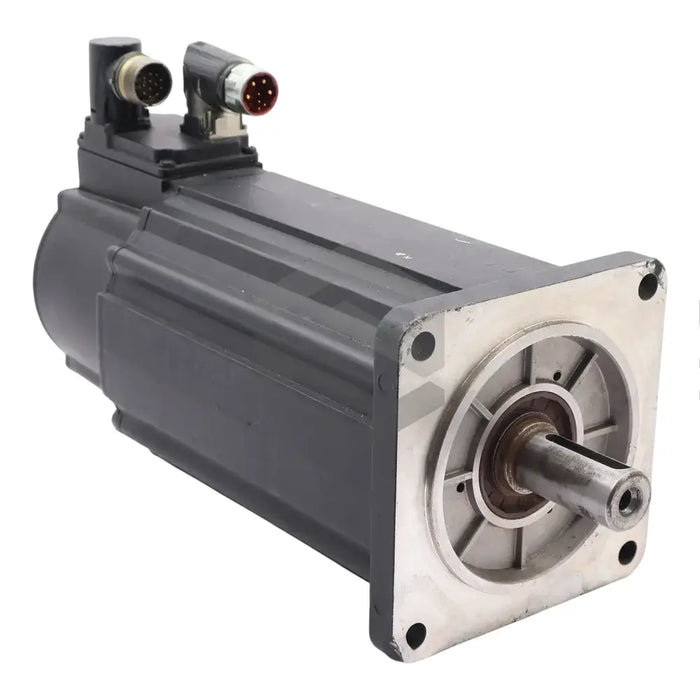

MHD090B-035-NP1-UN

by Bosch Rexroth Indramat
$5,753.85 - $12,699.00
$5,753.85
$5,753.85 - $12,699.00
$5,753.85

In Stock, Ships 1 - 3 Days

The MHD090B-035-NP1-UN, from Bosch Rexroth Indramat, is a unique motor featuring a 140mm flange size and 110mm centering diameter, associated with its 090 motor size. It boasts a continuous torque of 12.0Nm at standstill, accomplished by a B length motor frame. Equipped with a digital servo feedback system, it also allows for relative position detection. The motor's connecting option features a shaft with key, compliant with DIN 6885-1, and is inclusive of a sealing ring. The peak current is rated at 49.5 Amps, and it supports a 2500 RPM characteristic speed and a 5000 RPM maximum speed. With four pole pairs, the motor showcases a rated motor speed of 3000 RPM at both 60K and 100K, but with varied torque, current, power output, and voltage ratings. The weight is 14kg and can be installed up to 1000 meters altitude. It also includes a rated holding brake of 11Nm. Designed with surface cooling in mind, its electrical power connector possesses a 270-degree rotation capability.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MHD090B-035-NP1-UN

Motor Size

090

Flange Size

140mm

Centering Diameter

110mm

Motor Flame Length

B

Continuous Torque (at standstill)

12.0 Nm

Feedback Type

Digital Servo Feedback

Shaft Connection

Shaft with key (DIN 6885-1)

Sealing Ring

Included

Characteristic Speed

2500 RPM

Maximum Speed

5000 RPM

Peak Current Rating

49.5 Amps

Pole Pairs

4

Rated Motor Speed at 60K

3000 RPM

Rated Torque at 60K

7.2 Nm

Rated Current at 60K

4.7 Amps

Power Output at 60K

2.8 kilowatts

Voltage at 60K

354 Volts

Line Frequency at 60K

200 Hertz

Rated Motor Speed at 100K

3000 RPM

Rated Torque at 100K

10.2 Nm

Rated Current at 100K

6.7 Amps

Power Output at 100K

4.0 kilowatts

Voltage at 100K

369 Volts

Line Frequency at 100K

200 Hertz

Moment of Rotor Inertia

43.0 x 10-4 kg m2

Maximum Theoretical Torque

43.5 Nm

Motor Weight

14 kilograms

Maximum Installation Altitude

1000 meters

Holding Brake

11 Nm rated

Cooling Method

Surface cooling

Power Connector Flexibility

Can be rotated by 270 degrees.
