MHD090B-047-NG1-UN
Original price
$2,772.00
-
Original price
$2,772.00
Original price
$2,772.00
$2,772.00
-
$2,772.00
Current price
$2,772.00

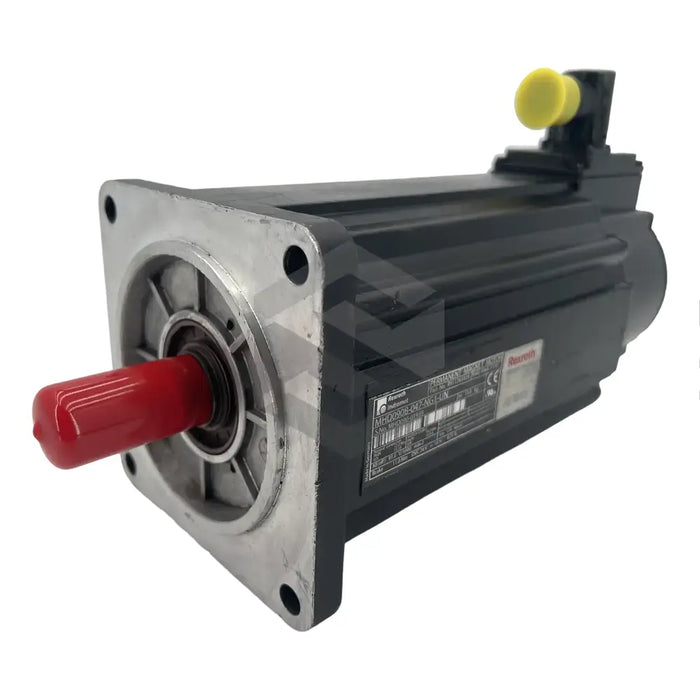

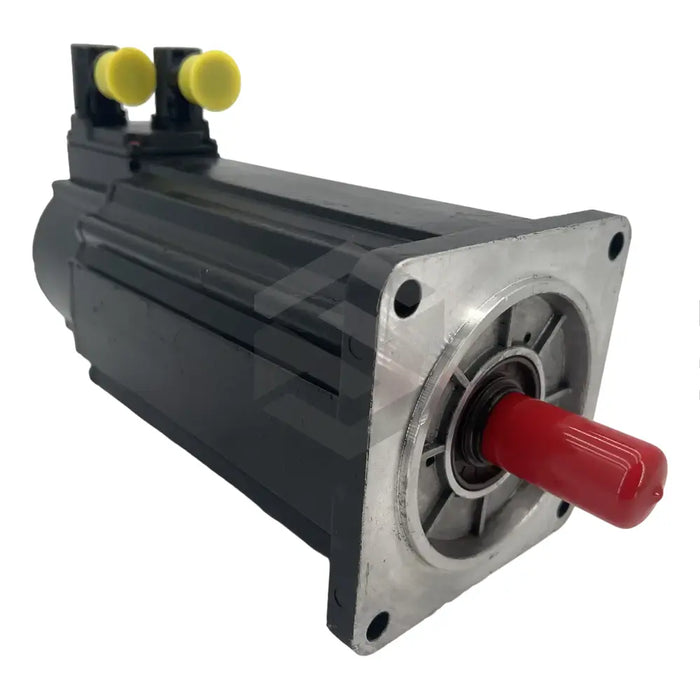

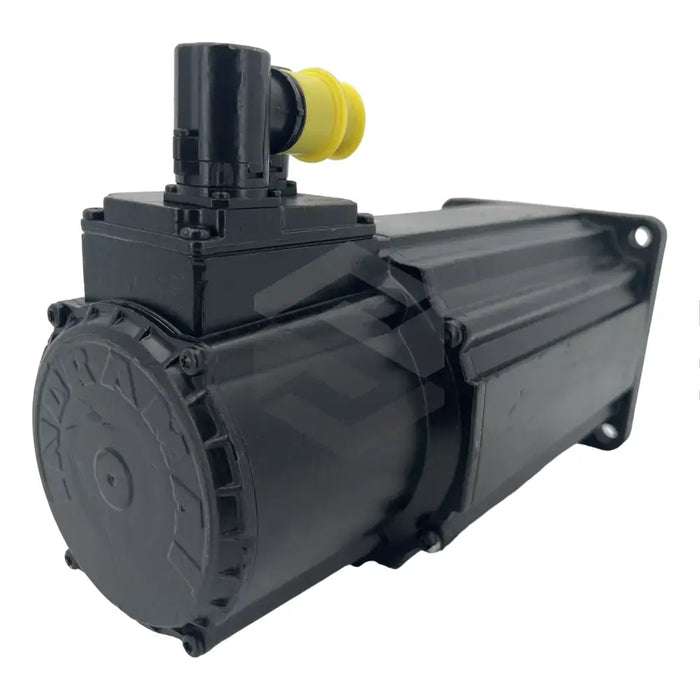

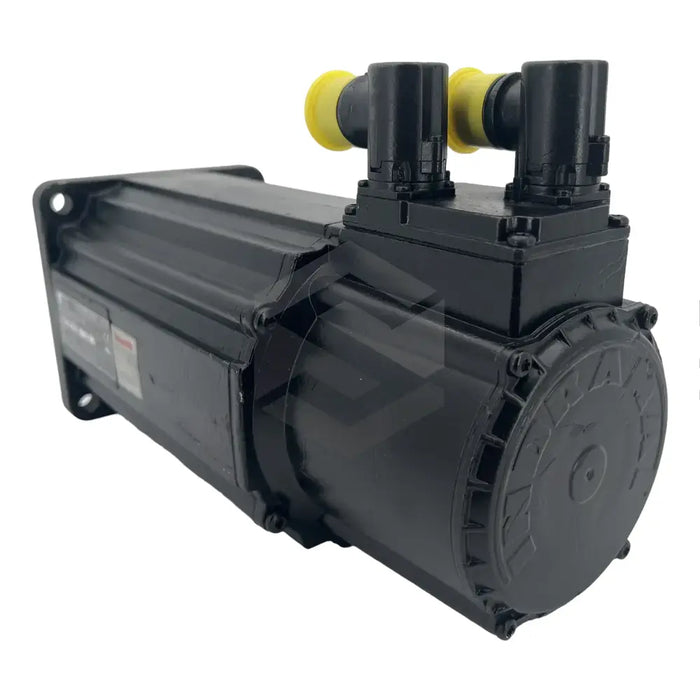

Produced by world-renowned motion control device manufacturer, Bosch Rexroth Indramat, the MHD090B-047-NG1-UN is an advanced servo motor intended to function in diverse industrial sectors, including machine tools, packaging machines, robotics, and handling systems. With a rated speed of 3000 rpm, current of 4.7 A, voltage of 354 V, and a frequency of 200 Hz, the motor generates an impressive 7.2 Nm of torque. It integrates a holding brake that helps control the servo axis during deceleration. The maximum current at peak is 49.5 A, and it features a maximum speed of 5000 rpm, 4 pole pairs, and a digital servo feedback mechanism for precision. Weighing 14.0kg and protected by a water and dust-resistant IP65 housing, this compact motor employs natural convection for cooling, with an option for fan-driven air circulation. The motor is equipped with a 270-degree rotatable connector for ease in electrical connections.
30 Day Warranty
Technical Specifications
