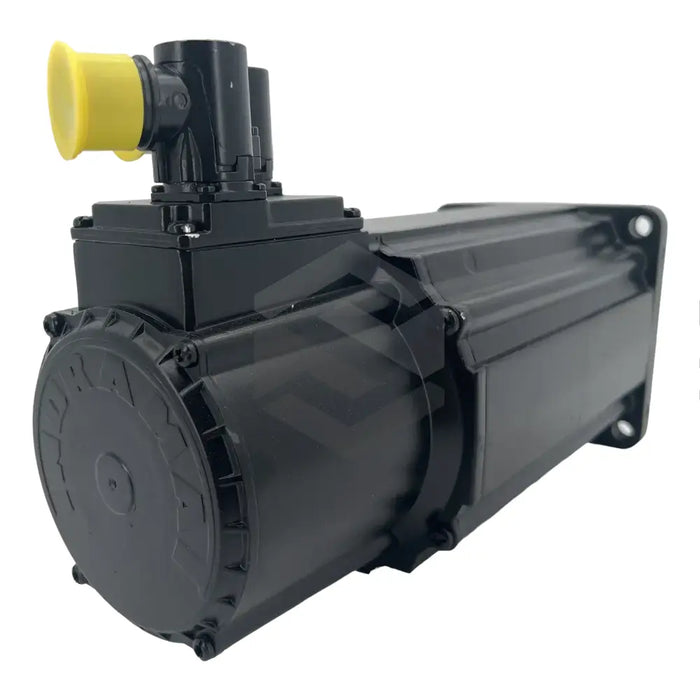

S image of MHD090B-058-NP1-UN

MHD090B-058-NP1-UN

by Bosch Rexroth Indramat
$5,237.94 - $16,353.13
$5,237.94
$5,237.94 - $16,353.13
$5,237.94

In Stock, Ships 1 - 3 Days

The MHD090B-058-NP1-UN is a high-performance synchronous motor, designed and manufactured by Bosch Rexroth Indramat. Ideal for use in packaging, automation, and paper industries, it offers a typical motor speed of 4000 RPM, with the ability to reach up to 5000 RPM. Its housing has been built for natural convection cooling within an operational temperature range of 0 to 40 degrees Celsius and can be placed up to 1000 meters above sea level. The motor boasts an IP65 protection rating and an insulation rating of F per DIN VDE 0530 Part 1. It sports a black, prime-coated housing and operates with an 11 Nm holding brake for precise speed control. Offering the flexibility of 270 degrees of rotation, it provides digital servo feedback via its integrated encoder. Additionally, it has a peak current of 79 Amps, a winding inductance of 5.8 mH, and a theoretical peak torque of 43.5 Nm. The motor weighs approximately 14 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

Rexroth MHD

Model

MHD090B-058-NP1-UN

Motor Type

Synchronous Motor

Typical Motor Speed

4000 RPM

Rated Motor Speed

4000 RPM

Maximum Motor Speed

5000 RPM

Cooling Method

Convection

Operating Temperature Range

0 to 40 degrees Celsius

Storage Temperature Range

-20 to 80 degrees Celsius

Max Altitude for Operation

1000 meters above sea level

Protection Rating

IP65

Insulation Rating

F

Motor Housing Varnish Colour

Black a/w RAL 9005

Holding Brake

Integrated, 11 Nm

Brake Weight

1 kg

Brake Connection/Disconnection Time

10 ms/50 ms

Brake Rated Voltage

24 Volts DC

Brake Rated Current

0.71 Amps

Power Connector

Rotable, 270 degrees rotation

Frame Length

B, 110 mm Centering Diameter

Shaft Type

Key with Shaft Sealing Ring

Feedback System

Digital Servo Feedback

Peak Current

79 Amps

Winding Inductivity

5.8 mH

Torque Constant at 20 C

0.77 Nm/A

Winding Resistance

0.74 Ohms

Theoretical Peak Torque

43.5 Nm

Weight

14 kg
