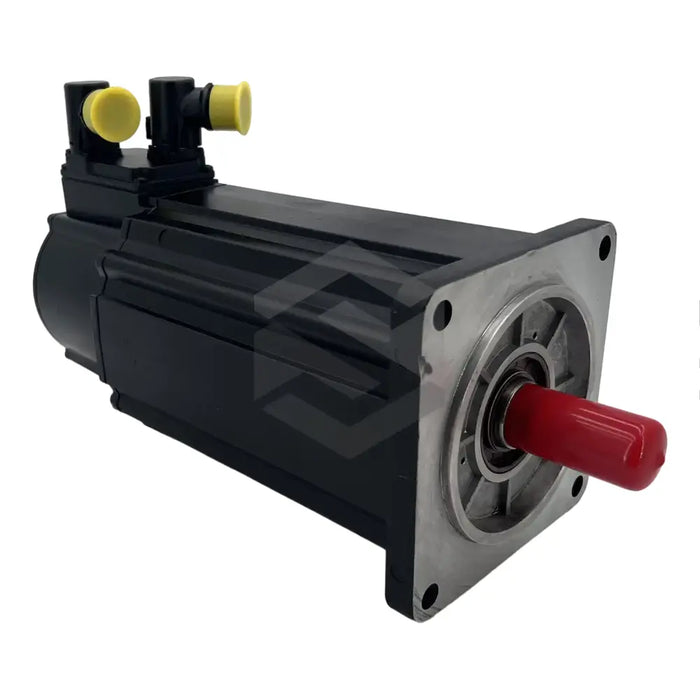

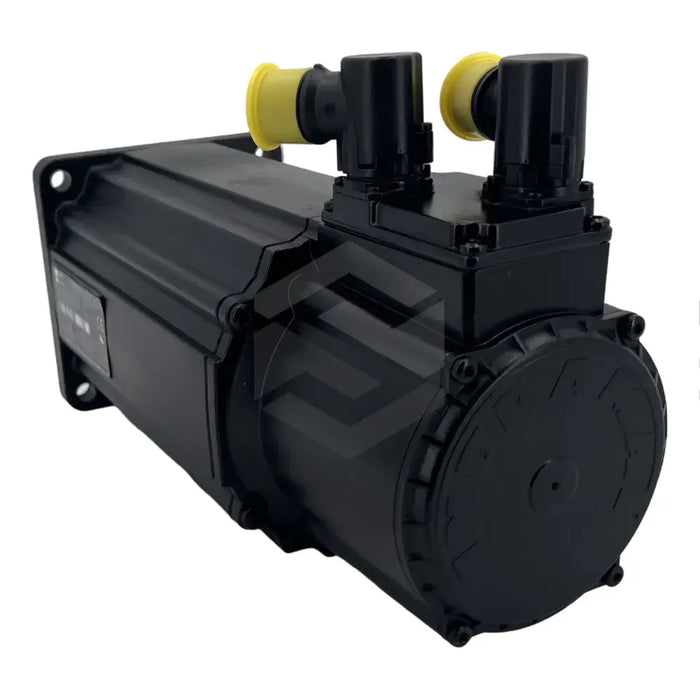

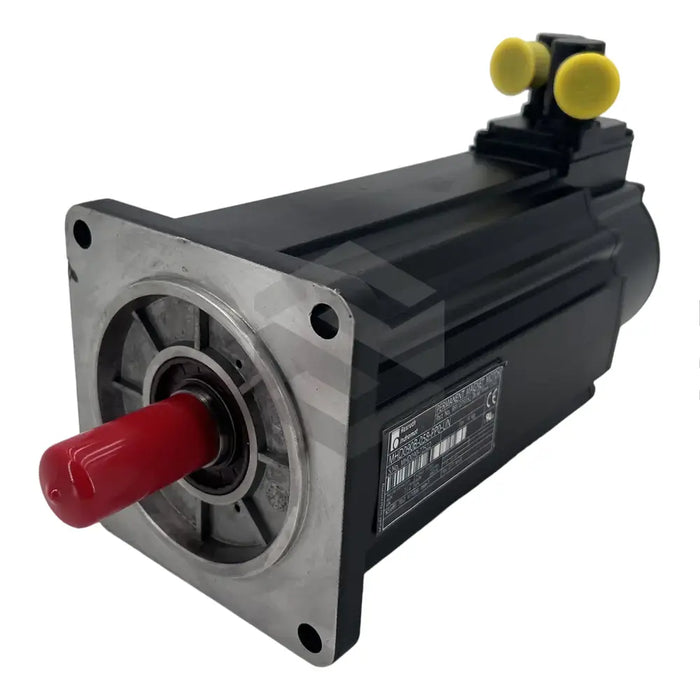

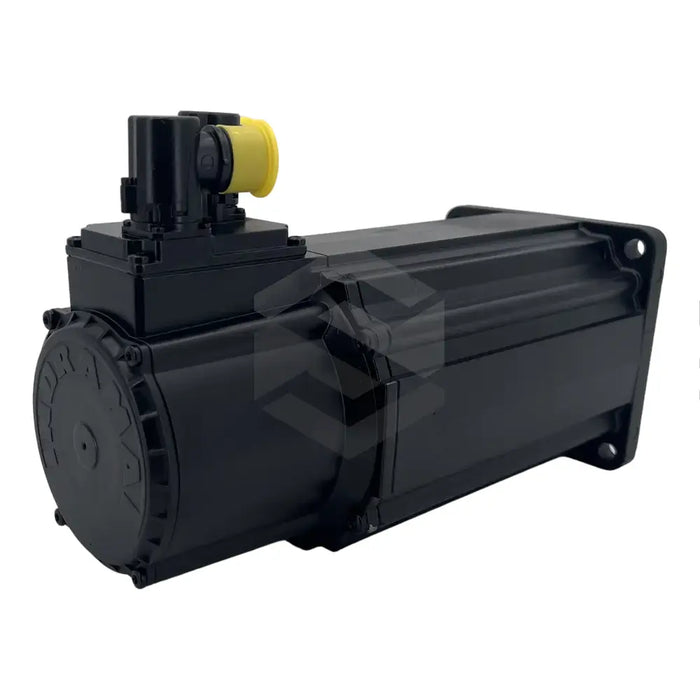

C image of MHD090B-058-PP0-UN | Main (Front Left)

MHD090B-058-PP0-UN

by Bosch Rexroth Indramat
$9,612.38 - $13,920.00
$9,612.38
$9,612.38 - $13,920.00
$9,612.38

In Stock, Ships 1 - 3 Days

The MHD090B-058-PP0-UN is a medium-torque permanent magnet brushless motor manufactured by Bosch Rexroth Indramat, a leading company in motion control. Notable for its application in advanced industrial fields such as machining and robotics, this motor is part of the popular MHD Synchronous Motors range known for high-quality German engineering. It comes in two cooling modes; natural convective and surface cooling that employs an air blower for controlled temperature adjustments. Depending on the cooling mode, its torque varies from 4.2Nm to 13.4Nm and performance from 2.1kW to 7.0kW. All MHD090B-058-PP0-UN motors operate at a frequency of 267 Hz and a nominal speed of 4,000 RPM. They feature a 4-pole core for smooth power delivery and controllability and weigh just 14 kg. These motors also include an absolute multiturn encoder with digital servo feedback and a driveshaft machined with a keyway as per the DIN 6885-1 standard.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

MHD Synchronous Motors

Model

MHD090B-058-PP0-UN

Torque (Natural Cooling, 60K)

4.2Nm

Performance (Natural Cooling, 60K)

2.1kW

Torque (Natural Cooling, 100K)

8.9Nm

Performance (Natural Cooling, 100K)

4.9kW

Torque (Surface Cooling)

13.4Nm

Performance (Surface Cooling)

7.0kW

Nominal Speed

4000 RPM

Rated Frequency

267 Hz

Number of Poles

4

Weight

14 kg

Feedback

Absolute multiturn encoder with digital servo

Keyway Standard

DIN 6885-1
