MHD093A-024

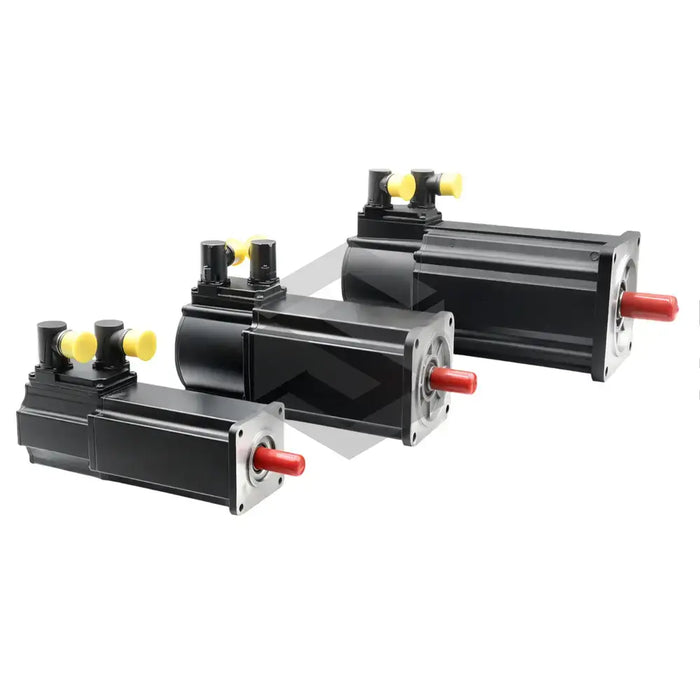

The MHD093A-024 is a servo motor produced by Bosch Rexroth Indramat and listed in the MHD Synchronous Motors series. Designed for industrial automation, the unit converts drive current into controlled rotary motion so packaging stations, transfer tables, and gantry axes can follow programmed positions with high repeatability. Its housing follows the common MHD mechanical interface, allowing the rotor shaft to couple directly to gearheads, timing belts, or ball screws without additional adapter plates. This layout supports compact machine designs where accurate motion and a short drive train are important.
The motor’s centering diameter is 130 mm, providing the pilot surface that aligns the stator with adjoining equipment and helps keep radial runout low. A continuous stall torque rating of 12.0 Nm states the steady twisting force the windings can deliver while remaining within thermal limits. Mounting occurs on a square face that supports a 140 / 150 mm flange pattern, allowing interchange with other IEC-compliant frames. Electromagnetic behavior is referenced by winding code 024, which identifies the resistance and inductance values used by the matched drive amplifier.
Frame size 093 indicates the stator outside diameter class, helping the motor fit compact machine spaces with predictable clearance. Within the MHD Synchronous Motors series, this model uses motor length A, which is the shortest stack in the 093 group and helps reduce inertia during rapid start-stop cycles. Its classification as a Servo Motor means it is intended for feedback-controlled axes rather than open-loop operation. This arrangement suits positioning tasks that require stable speed control, repeatable indexing, and responsive acceleration under medium-duty operating conditions.
