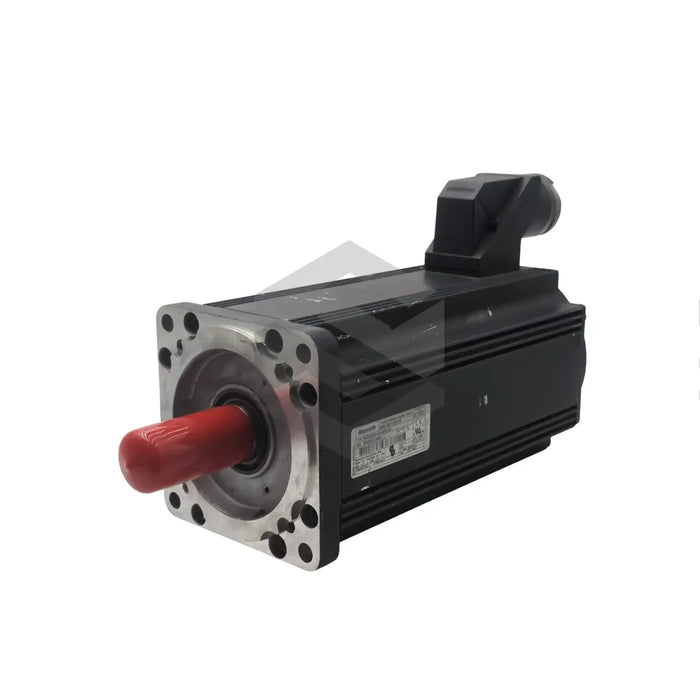

C image of MHD093B-035-NG0-AA | Main (Front Left)

MHD093B-035-NG0-AA

by Bosch Rexroth Indramat
$15,106.13 - $16,616.74
$15,106.13
$15,106.13 - $16,616.74
$15,106.13

In Stock, Ships 1 - 3 Days

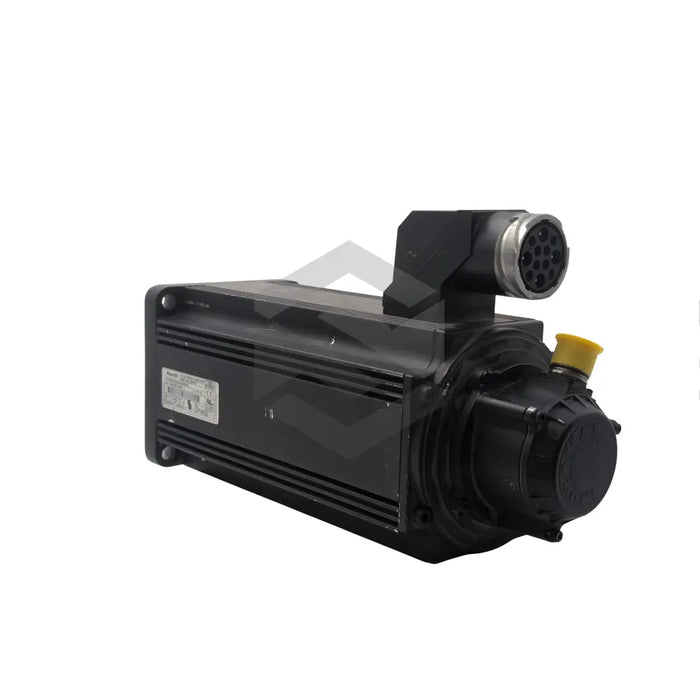

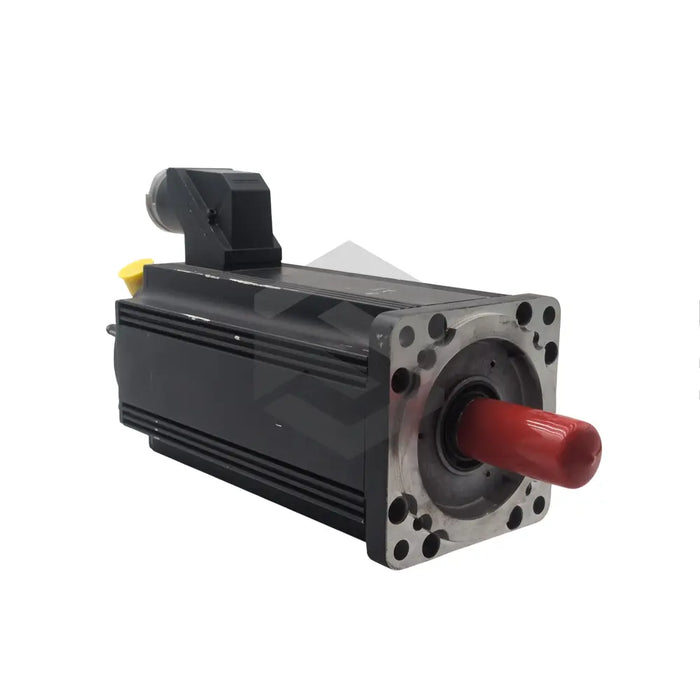

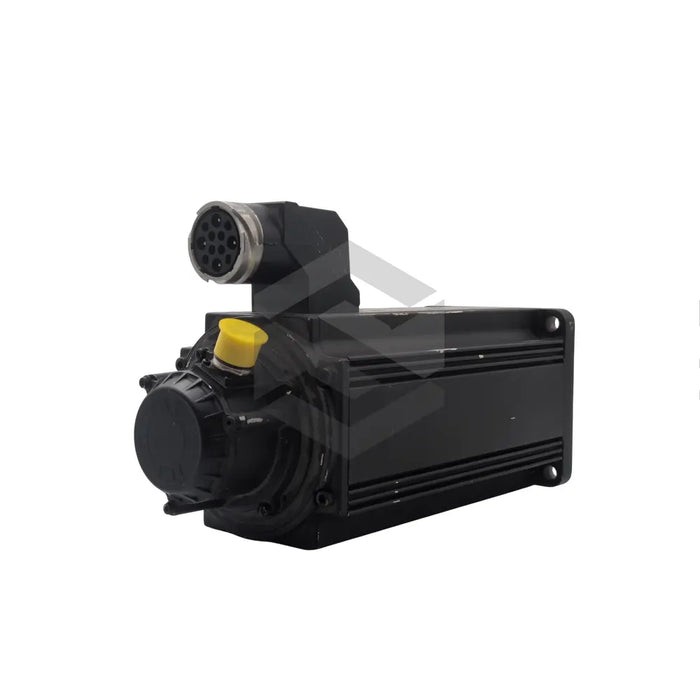

The MHD093B-035-NG0-AA, crafted by Bosch Rexroth Indramat, is a high performing, high-quality synchronous motor. It easily integrates with various industrial machinery, features user-friendly cabling solutions, and can be flexibly mounted in positions such as IMB5, IMV1, and IMV3. Boasting a B05 flange design with a 140/150 mm flange size and 130 mm centering diameter, the motor has digital servo feedback and delivers powerful output; its rated power ranges from 2.7 to 6.6 kW at a nominal speed of 2500 rpm. Temperature control is assured through a built-in sensor with surroundings and natural cooling options. The motor runs on an AC voltage of 350-374 V and 167 Hz frequency while offering solid particle and water jet resistance with an IP65 protection level. It uses 4.6 - 10.8 A of current to give persistent torque of 8.8 – 20.9 Nm and operates optimally between 0 and 40 degrees Celsius, up to 1000 meters above sea level.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD093B-035-NG0-AA

Cabling Solutions

Easy

Mounting Positions

IMB5, IMV1, IMV3

Flange Design

B05

Flange Size

140/150 mm

Centering Diameter

130 mm

Servo Feedback

Digital

Rated Power

2.7 – 6.6 kW

Nominal Speed

2500 rpm

Usage

machine tools, printing machines, robotics

Overload Protection

Yes

Temperature Control

Temperature monitoring sensor

Cooling Options

Natural and surface

AC Voltage

350 – 374 V

Operating Frequency

167 Hz

Protection Category

IP65

Power Connector

A-side

Rated Current

4.6 – 10.8 A

Continuous Torque

8.8 – 20.9 Nm

Thermal Time Constant

30 – 60 min

Pole Pairs

4

Operating Temperature

0 to +40 degree Celsius

Maximum Setup Height

1000 meters above sea level.
