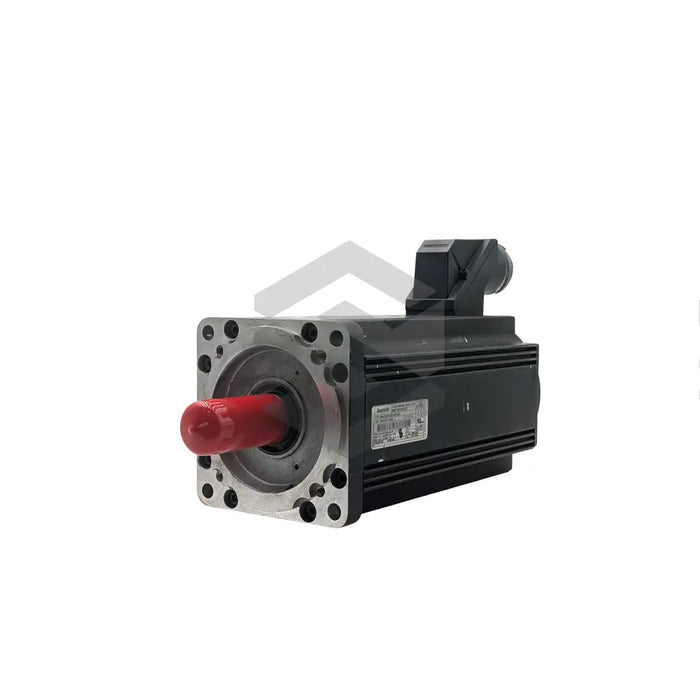

C image of MHD093B-035-NG0-BN | Main (Front Left)

MHD093B-035-NG0-BN

by Bosch Rexroth Indramat
$15,106.13 - $16,616.74
$15,106.13
$15,106.13 - $16,616.74
$15,106.13

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD093B-035-NG0-BN model is a top-of-the-range synchronous motor, known for its high-dynamics and utility in digital intelligent drive systems. It operates under extreme conditions with stability, due to its brushless design and IP65 protection class. With the ability to execute continuous start-stop operations at high repeating frequencies, the motor exhibits electronic commutation in conjunction with permanent magnets and 4 pole pairs. The motor also features a winding inductivity of 10.7mH and uses natural or liquid cooling modes for temperature control. It operates at an AC input voltage of 350-396V and a frequency of 167Hz. It's designed for easy mounting and lacks holding brake, following the B05 flange design. The model performs optimally within a temperature window of 0-40 degree Celsius and utilizes a coolant for heat dissipation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD093B-035-NG0-BN

Category

Industrial synchronous motor

Protection Level

IP65

Pole Pairs Number

4

Winding Inductivity

10.7 mH

Cooling Mode

Natural/Liquid

AC Voltage

350 – 396 V

Voltage Frequency

167 Hz

Rated Torque (Natural Cooling)

17.5 – 20 Nm

Rated Current (Natural Cooling)

12.8 – 15.1 A

Motor Temperature Increase (Natural Cooling)

60/100 K

Rated Torque (Liquid Cooling)

33.3 Nm

Continuous Current (Liquid Cooling)

24.3 A

Motor Temperature Overtemperature (Liquid Cooling)

60/100 K

Power Connector

B-side

Brake

None

Flange Design

B05

Coolant Flow Rate

1.3 l/min

Rated Heat Dissipation

900 W

Thermal Time Constant (Liquid Cooled)

20 min

Thermal Time Constant (Natural Cooled)

60 min

Operating Temperature Range

0 to +40 degree Celsius.
