MHD093B-035-NG0-LN

Original price $15,106.13 - Original price $16,616.74
Original price
$15,106.13
$15,106.13 - $16,616.74
Current price $15,106.13

In Stock, Ships 1 - 3 Days

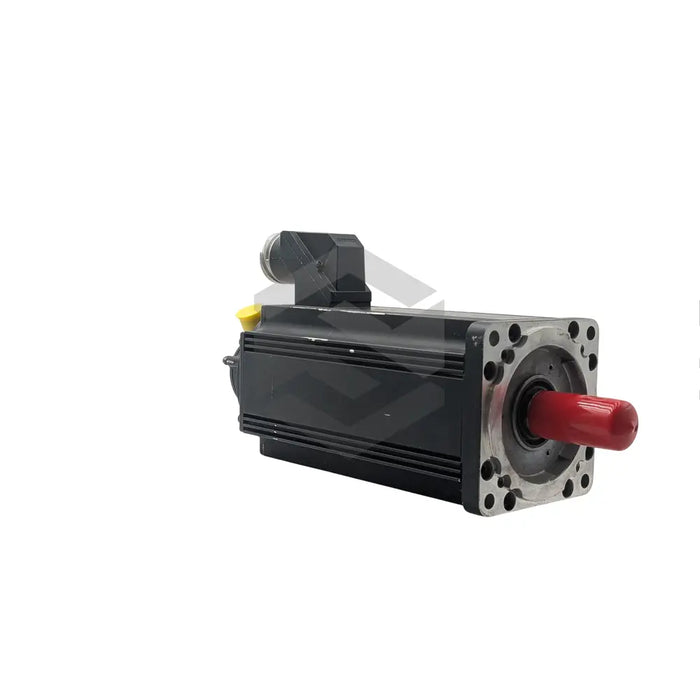

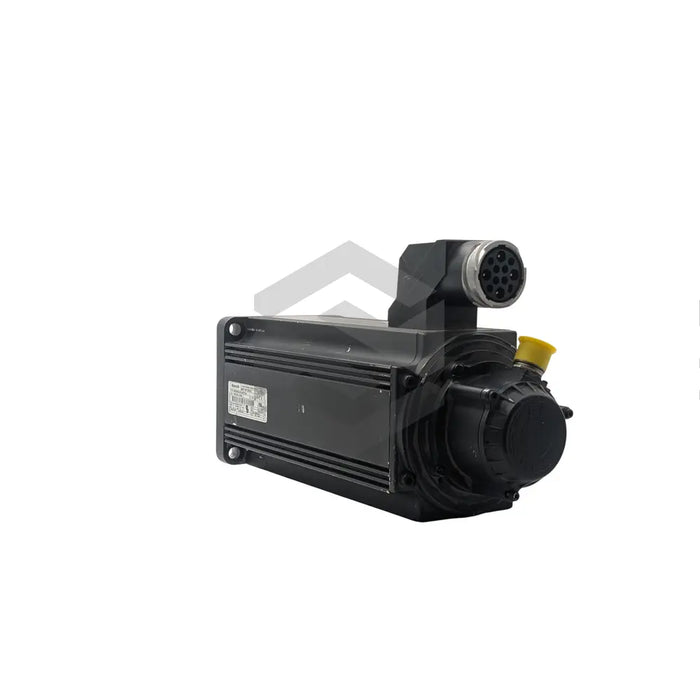

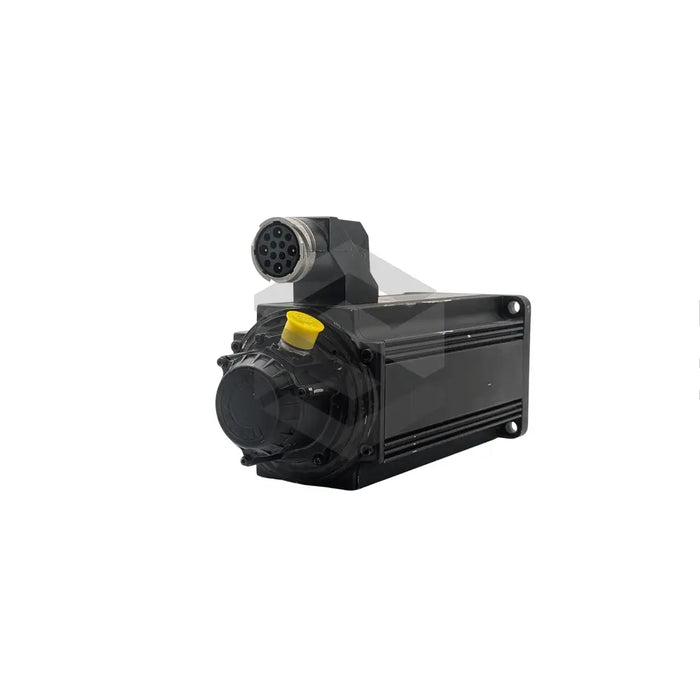

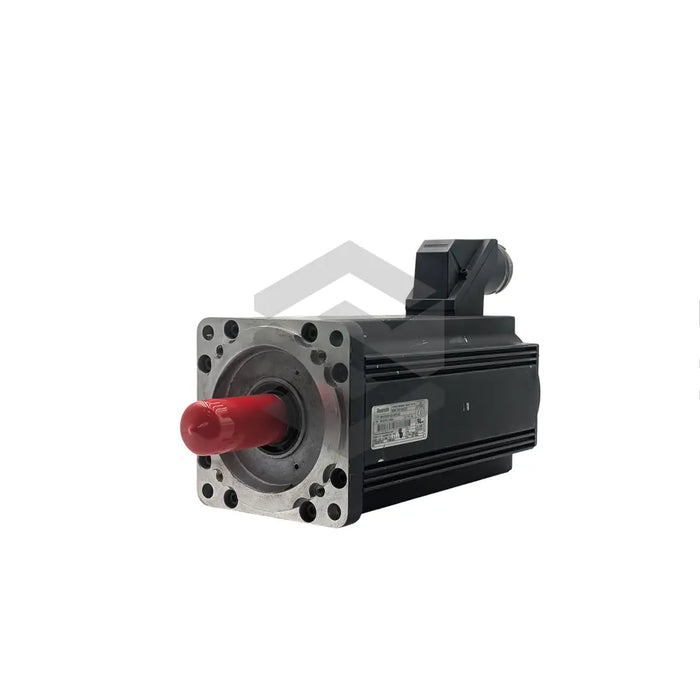

The Bosch Rexroth Indramat MHD093B-035-NG0-LN is a high-performance synchronous motor, renowned for its exceptional precision, accuracy and high torque under heavy load conditions. Equipped with a left-side power connector, the motor can develop a 350 – 396 V power connection with the supply unit. Its operations are managed via digital intelligent drive controllers. This model is designed to handle high loading conditions, featuring a liquid cooling system that uses water to dissipate heat during continuous operation. With an optimal water flow rate of 1.3 l/min and coolant inlet temperature between 0 to +40 degrees Celsius, the motor effectively dissipates 900 W of heat. The MHD093 synchronous motor delivers a continuous torque of 33.3 Nm while consuming a continuous current of 24.3 A in liquid cooling mode. Installation and operation should only be carried out by skilled personnel, in an environment that is free from dust and reactive elements.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Model


MHD093B-035-NG0-LN

Technology


Motion control

Design


Synchronous motor

Power Connector Position


Left-side

Power Connection Voltage


350 – 396 V

Control System


Digital intelligent drive controllers

Cooling System


Liquid

Coolant


Water

Coolant Flow Rate


1.3 l/min

Heat Dissipation


900 W

Coolant Inlet Temperature


0 to +40 degrees Celsius

Coolant pH Value


6 – 8 pH

Continuous Torque


33.3 Nm

Continuous Current Consumption


24.3 A

Installation Requirements


Flat surface, free from dust and reactive elements

Recommended Handling Procedures


Only by a skilled professional

Recommended Products for Use


Rexroth-recommended items

Available From


Servo Supplier.
