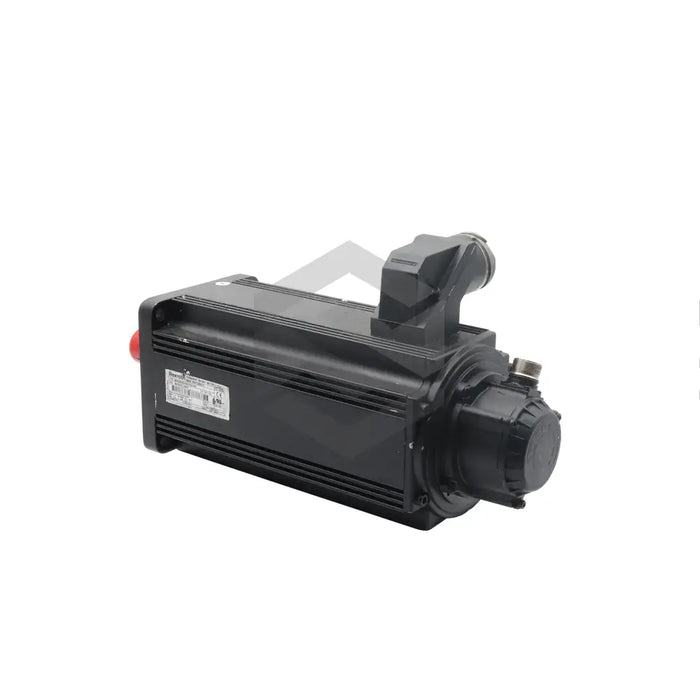

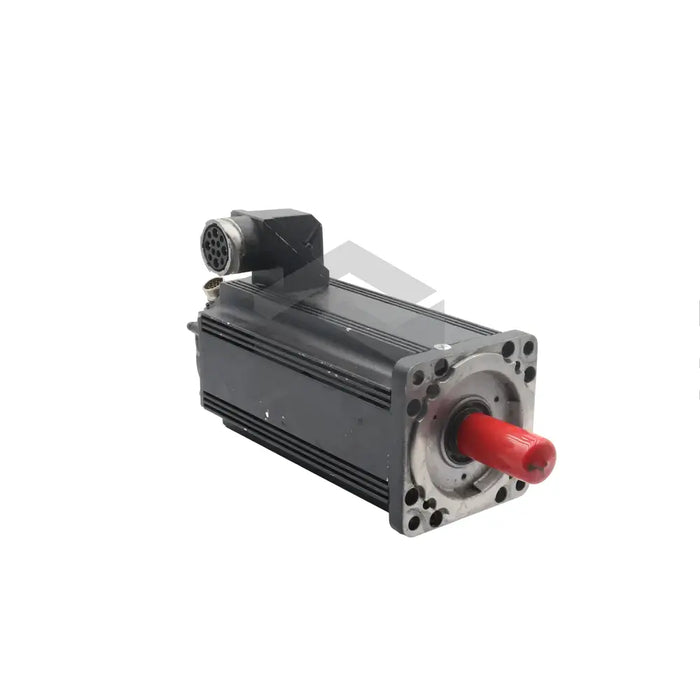

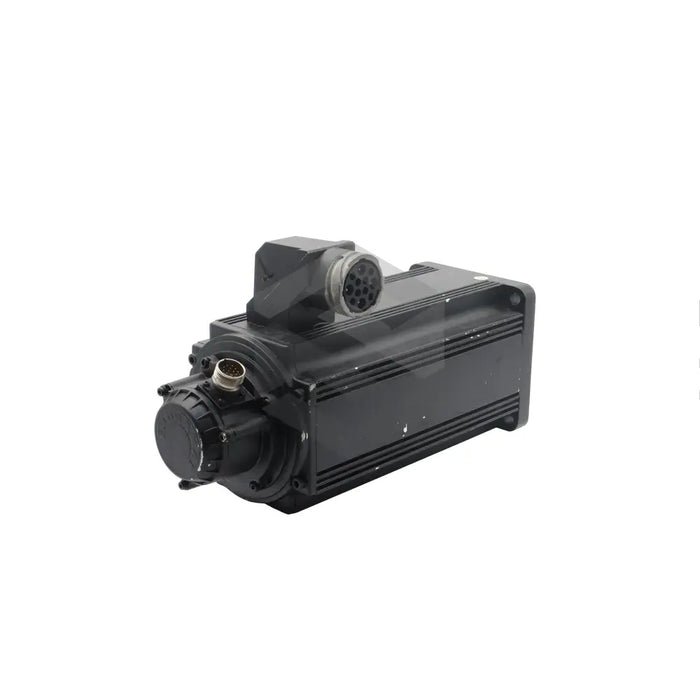

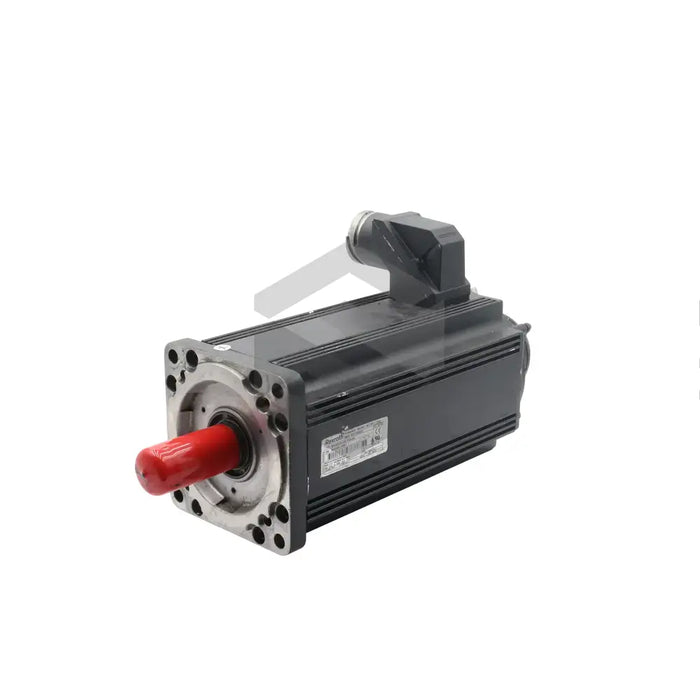

C image of MHD093B-035-NG1-RA | Main (Front Left)

MHD093B-035-NG1-RA

by Bosch Rexroth Indramat
$13,598.31 - $25,200.00
$13,598.31
$13,598.31 - $25,200.00
$13,598.31

In Stock, Ships 1 - 3 Days

The MHD093B-035-NG1-RA motor, a product of Bosch Rexroth Indramat, is a state-of-the-art industrial synchronous mechanism designed for robust usage in varied industrial production systems. Designed to endure tough environmental conditions, it provides a wide-ranging, high torque output. This efficient motor has a durable life span, with the bearings at the output shaft serving up to 30,000 hours depending on operational handling. For enhanced safety and maintenance, the motor's housing features markings highlighting key attention areas. Under 20 degrees Celsius, it provides a torque constant of 1.29Nm/A, and a voltage constant of 112 volts/1000 revolution. The motor generates an output of 60Nm with a maximum current of 45.9 amperes, while its peak speed is 4500 rpm. It emits noise below 75 decibels, making it ideal for industrial contexts. Dimension-wise, it's 356mm long, 140mm thick and weighs 14.5kg. It manages internal temperature via natural convection enhanced by an optional external fan.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Industrial Synchronous Motor

Environmental Resistance

Designed to withstand harsh conditions

Function

Generate kinetic energy for industrial production systems

Mechanical Break Down

Operates long periods without mechanical break down

Bearing Service Life

30000 hours

Output Shaft

Contains ball bearings

Safety

Motor housing inscribed with special signs and symbols

Torque Constant

1.29-newton meters per ampere at 20 degrees celsius

Voltage Constant

112 volts per 1000 revolutions at 20 degrees celsius

Maximum Input Current

45.9 amperes

Torque Output

60-newton meters

Peak Speed

4500 revolutions per minute

Noise Level

Not exceeding 75 decibels

Dimensions

356 millimeters long and 140 millimeters thick

Weight

14.5 kilograms

Temperature Regulation

Natural convection, connectable to an external fan for surface cooling.
