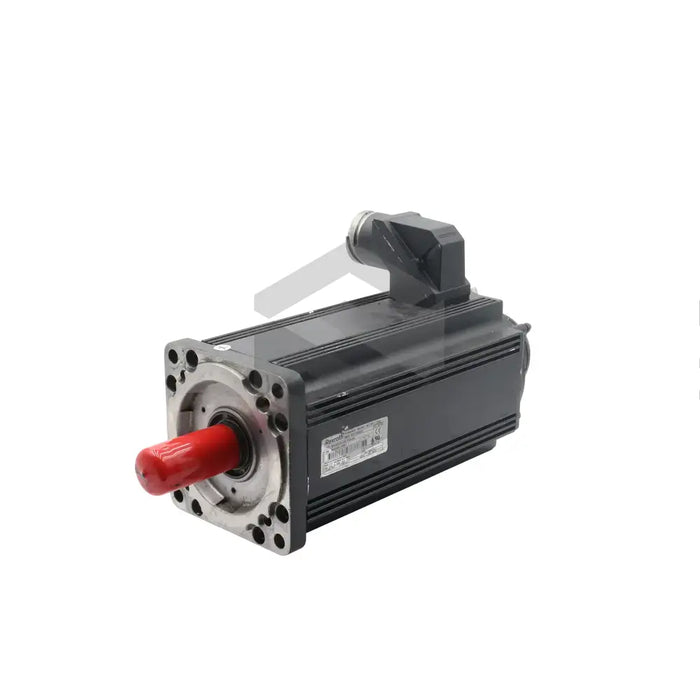

C image of MHD093B-035-NG1-RN | Main (Front Left)

MHD093B-035-NG1-RN

by Bosch Rexroth Indramat
$12,636.48 - $12,636.48
$12,636.48
$12,636.48 - $12,636.48
$12,636.48

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD093B-035-NG1-RN Synchronous Motor integrates with a Bosch drive controller to make a cost-effective automation system, suitable for machine tools and handling systems. This MHD motor offers high operating reliability, overload protection, superior performance, and simple machine attachment and cabling. It features a 140/150mm flange, designed for easy machine attachment, and a low-inertia 130mm centering diameter. The MHD093B-035-NG1-RN offers a continuous torque at standstill of 17.5 Nm. It comes with digital servo feedback for relative position detection, and optional integrated encoders for absolute position detection. The plain motor shaft includes a sealing ring. Power output is to the right. The motor includes a 22Nm holding brake for axis clamping when de-energized, releasing electrically when a 24V DC signal is applied. The motor housing is designed for natural convection or surface cooling.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturing Company

Bosch Rexroth Indramat

Product

MHD093B-035-NG1-RN Synchronous Motor

Used With

Bosch Drive Controller

Typical Applications

Machine Tools, Automation, and Handling Systems

Motor Features

High Operating Reliability, Overload Protection, High Performance Data, Easy Machine Attachment and Easy Cabling

Attachments

DIN 42948 Flange

Motor Design

Permanent Magnets with Electronic Commutation

Inertia

Low

Flange Size

140/150mm

Centering Diameter

130mm

Continuous Torque at Standstill

17.5Nm

Position Detection

Relative

Motor Shaft

Plain with Sealing Ring

Power Connector Output Direction

Right

Holding Brake

Included, Electrically Releasing, Holding Torque 22Nm

Motor Housing Design

Natural Convection or Surface Cooling
