MHD093B-035-NP0-BA

Original price $9,966.00 - Original price $9,966.00
Original price
$9,966.00
$9,966.00 - $9,966.00
Current price $9,966.00
In Stock, Ships Today
Request a quote

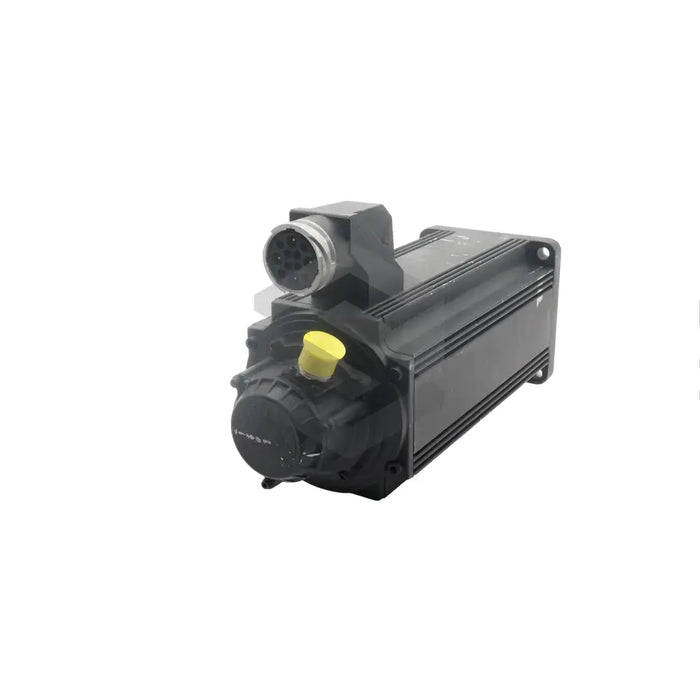

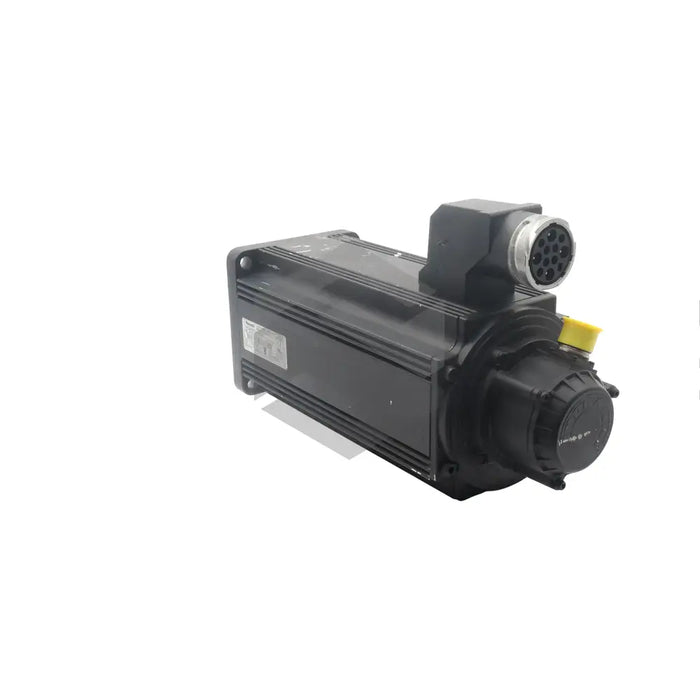

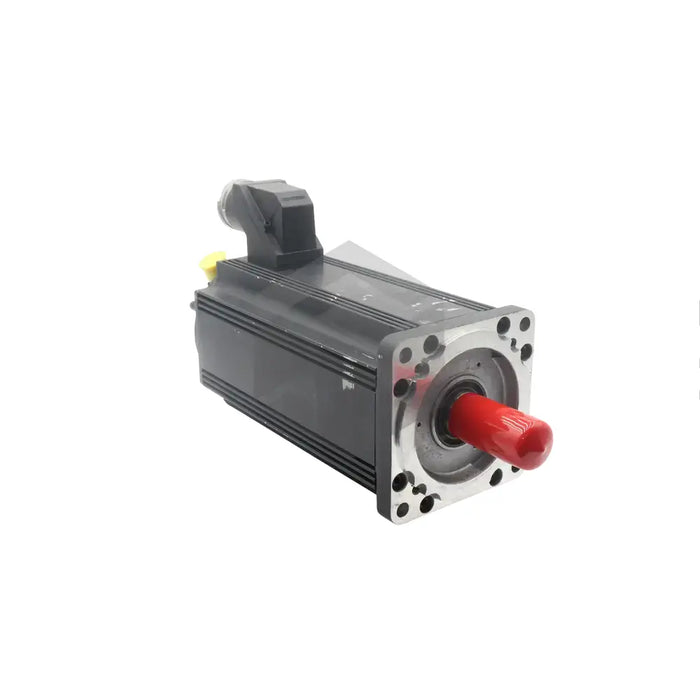

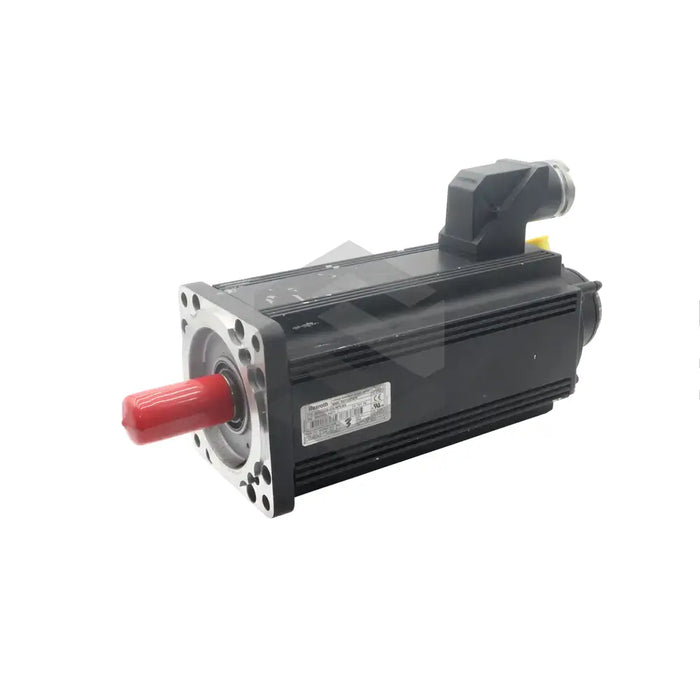

Bosch Rexroth Indramat's MHD093B-035-NP0-BA is a top-quality synchronous servo motor, designed with cutting-edge technology in motion control and automation systems. The stringent standards applied to its production ensures superior performance, safety, and minimal maintenance. This brushless motor has lubricated bearings and a housing designed for flexible positioning. The engine features a shaft with a key design, inclusive of a shaft sealing ring that ensures a tight seal and no loose fittings. The motor operates at a rated and theoretical speed of 2,500 rpm and 4,500 rpm respectively, making it efficient for high-speed tasks. Its capability for continuous start-stop operations with high repeat frequencies, a maximum torque of 66 Nm, and a rated torque of 20.9 Nm, adds to its flexibility for various applications.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MHD093B-035-NP0-BA
  • Product Line: Synchronous Servo Motor
  • Design: Brushless and lubricated bearings with universal housing
  • Shaft Design: With key and shaft sealing ring
  • Rated Speed: 2500 rpm
  • Theoretical Maximum Speed: 4500 rpm
  • Operation Function: Continuous start-stop with high repeat frequencies
  • Maximum Torque: 66 Nm
  • Rated Torque: 20.9 Nm
