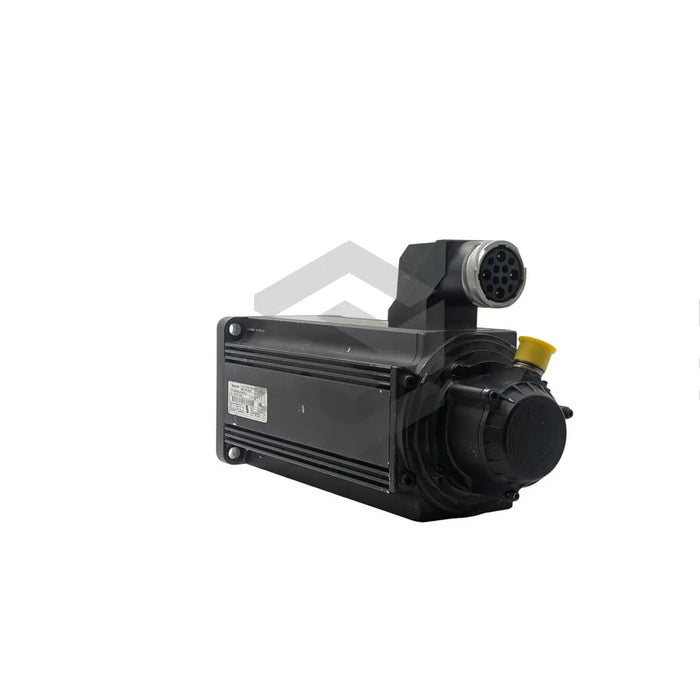

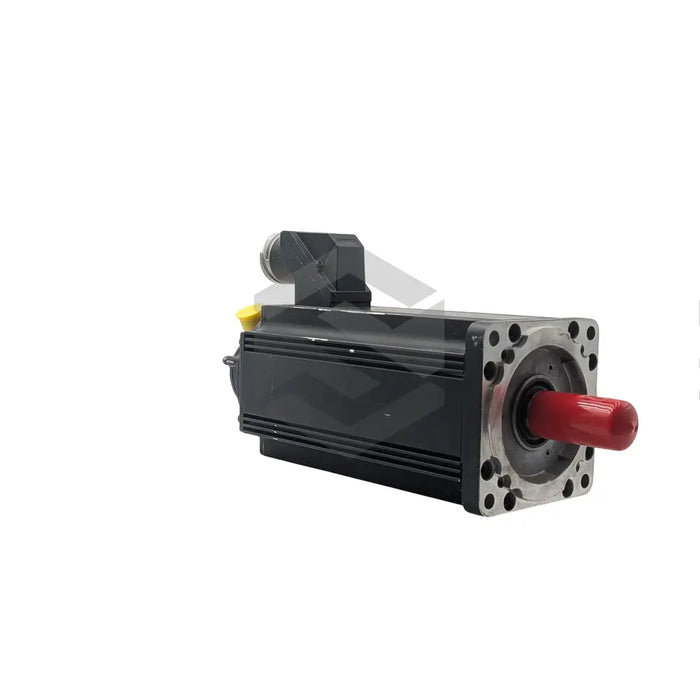

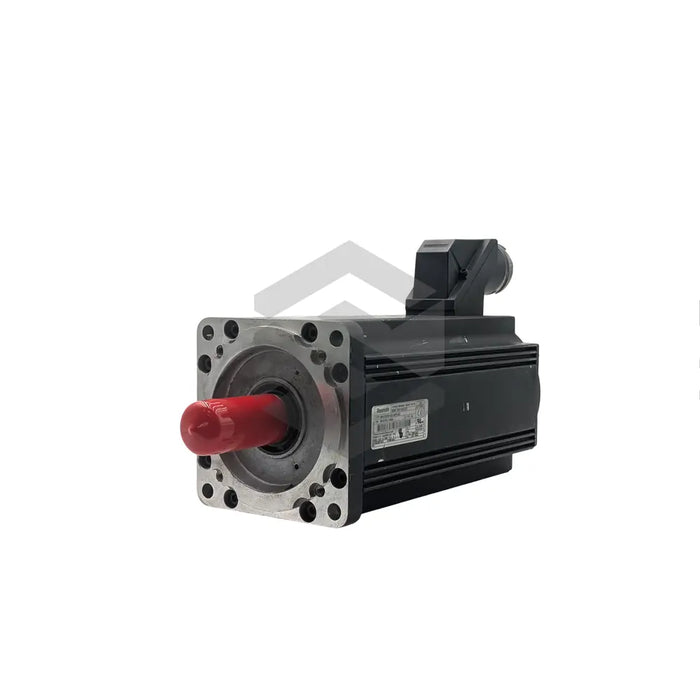

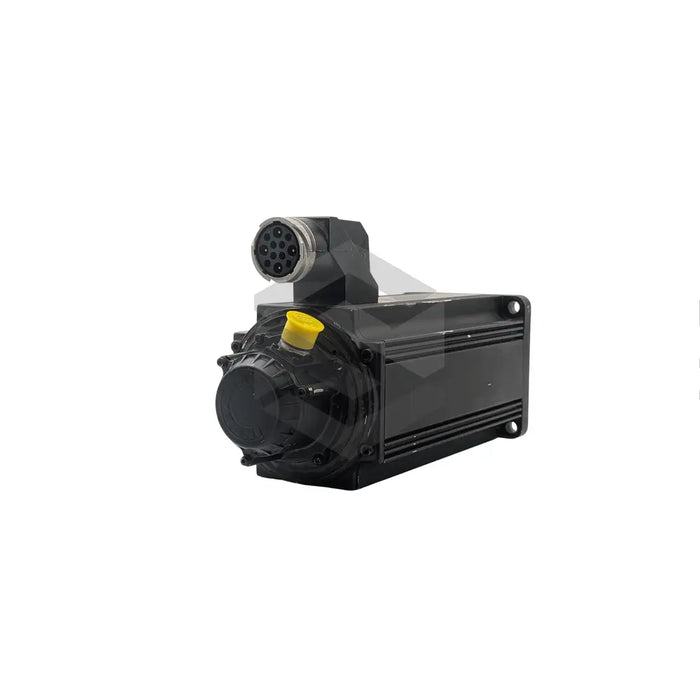

series image of MHD093B-035-NP0-BN

MHD093B-035-NP0-BN

by Bosch Rexroth Indramat
$24,443.70 - $24,443.70
$24,443.70
$24,443.70 - $24,443.70
$24,443.70
In Stock, Ships Today
The Bosch Rexroth Indramat MHD093B-035-NP0-BN is a high-performance servo motor, explicitly designed for installation in industrial machinery. It supports digital servo feedback and offers a maximum speed of 4500 RPM. With a continuous torque of 17.5 Nm, rated torque of 8.8 Nm, and theoretical maximum torque of 66 Nm, the motor also features a shaft with a key and sealing ring. Notably, the power connector is located on side B of the motor, which comes in a convection or liquid-cooling-capable housing. The rotor's moment of inertia is 0.00255 kg m2, while the motor weighs 19 kg. In terms of environmental protection, the motor reaches a rating of IP65 and has an insulation class of F according to DIN VDE 0530 Part I standards. Lastly, it has a prime coat black finish. Please adhere to ambient conditions, safety specifications, and use only Bosch-approved spare parts.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Servo Motor
  • Recommended Ambient Conditions: 0 to 40 degrees Celsius and altitudes of up to 1000 meters
  • Power Connector Location: Situated on side B
  • Cooling: Designed for convection or liquid cooling
  • Shaft Design: Features a shaft with both key and sealing ring
  • Feedback: Support for digital servo feedback
  • Continuous Torque: 17.5 Nm
  • Rated Torque: 8.8 Nm
  • Theoretical Maximum Torque: 66 Nm
  • Rotor Inertia: 0.00255 kg m2
  • Maximum Speed: 4500 RPM
  • Weight: 19 kilograms
  • Environmental Protection Rating: IP65
  • Insulation Class: Class F as per DIN VDE 0530 Part I
  • Housing Varnish: Prime coat black
