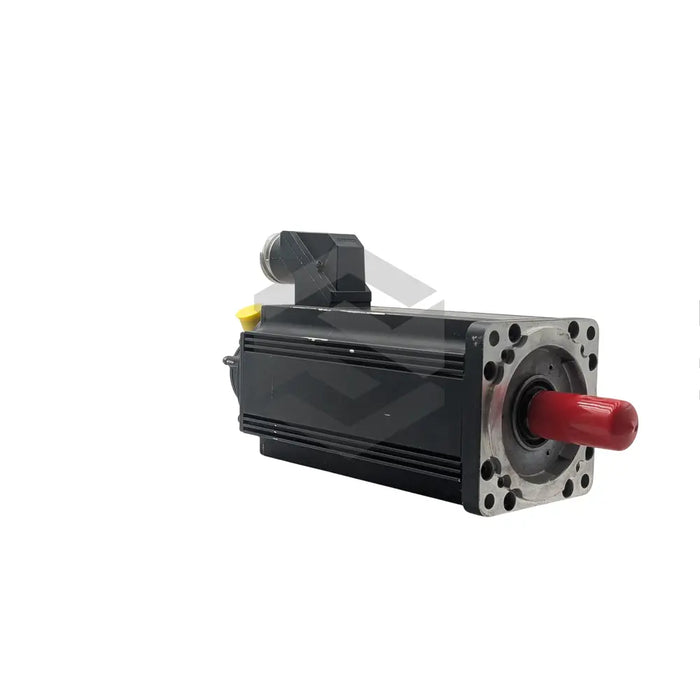

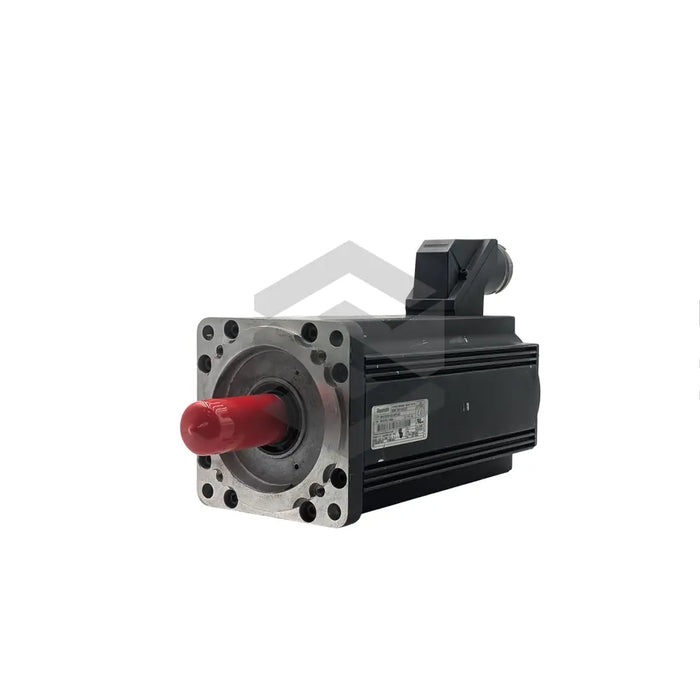

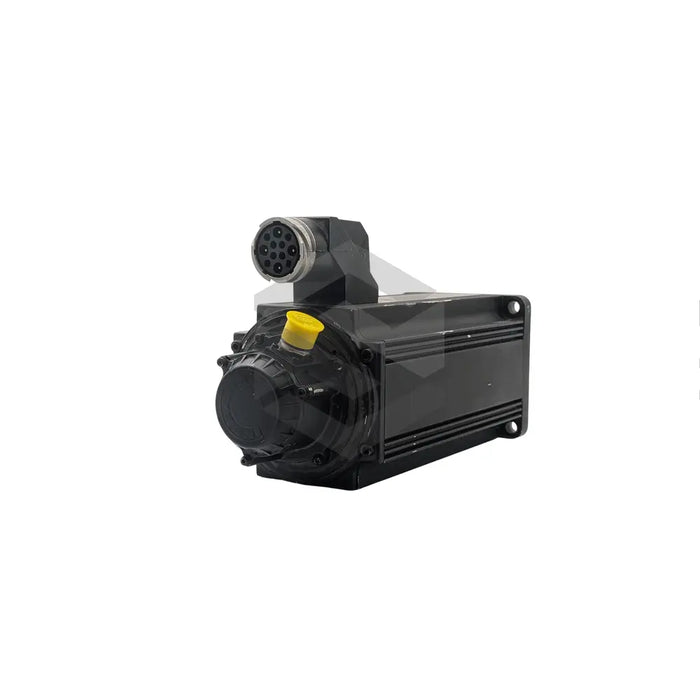

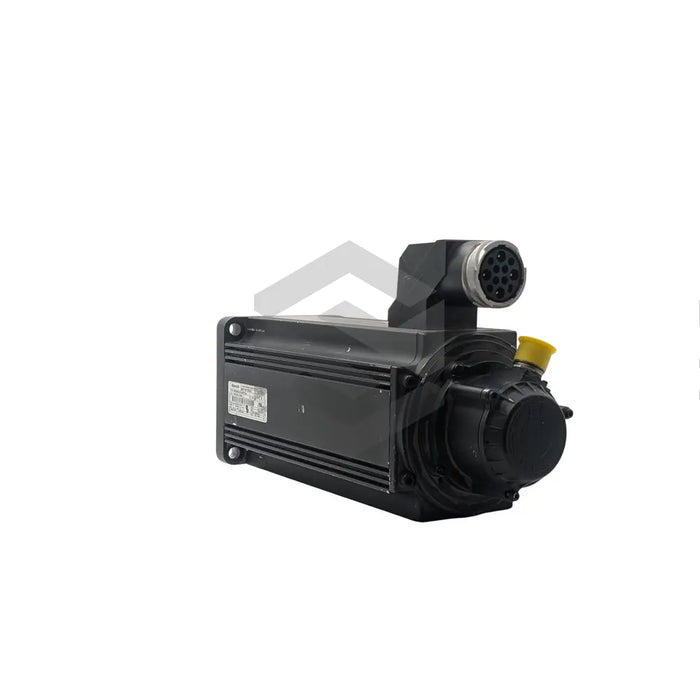

C image of MHD093B-035-NP0-RA | Main (Front Left)

MHD093B-035-NP0-RA

by Bosch Rexroth Indramat
$15,106.13 - $16,616.74
$15,106.13
$15,106.13 - $16,616.74
$15,106.13

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat's MHD093B-035-NP0-RA is a dustproof servo motor, designed with an IP65 rated housing for optimal protection against dust and water. Its weight of 19 kg allows for easy installation outside of control cabinets, making it ideal for operations near machinery. This particular attribute simplifies system maintenance and reduces installation costs and cable runs. The shaft contains a key in accordance with DIN 6885-1 standards and the power connector is situated on the right side of the motor. While it doesn't include a holding brake, one can be added separately if required. Equipped to offer digital servo feedback; sealing air connectors can be fitted to prevent coolants and oils from penetrating the motor. Proper assembly of the O-rings is required to maintain the desired level of protection. Installation and operation should be handled by qualified personnel, as per Bosch's recommendations.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

MHD Servo Motor

Housing

Natural convection or surface cooling

Protection Rating

IP65

Operation

Can be safely operated outside control cabinets

Housing Color

Matte Black

Weight

19 kilograms

Shaft Key

Present as per DIN 6885-1

Power Connector Location

Right side of the motor

Holding Brake

Not present, available as option

Feedback

Supports digital servo feedback

Sealing Air Connectors

Available

Assembly Recommendation

Proper assembly by qualified personnel
