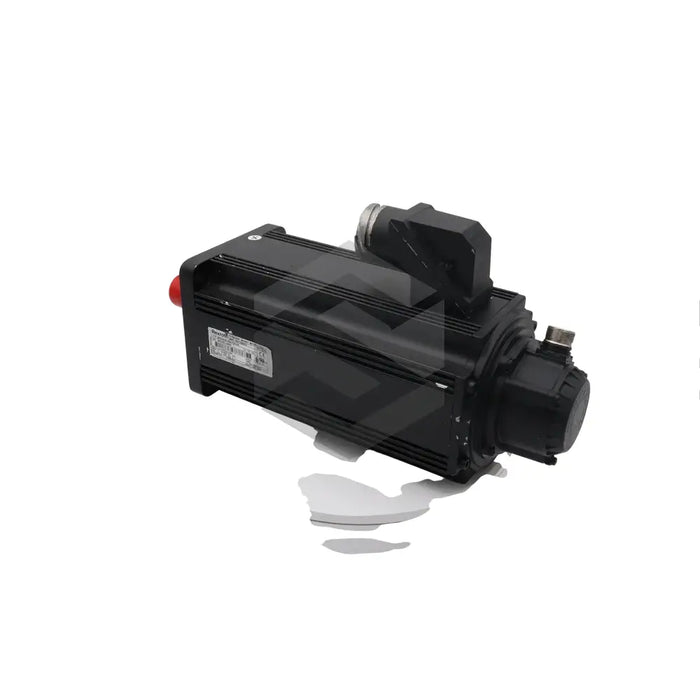

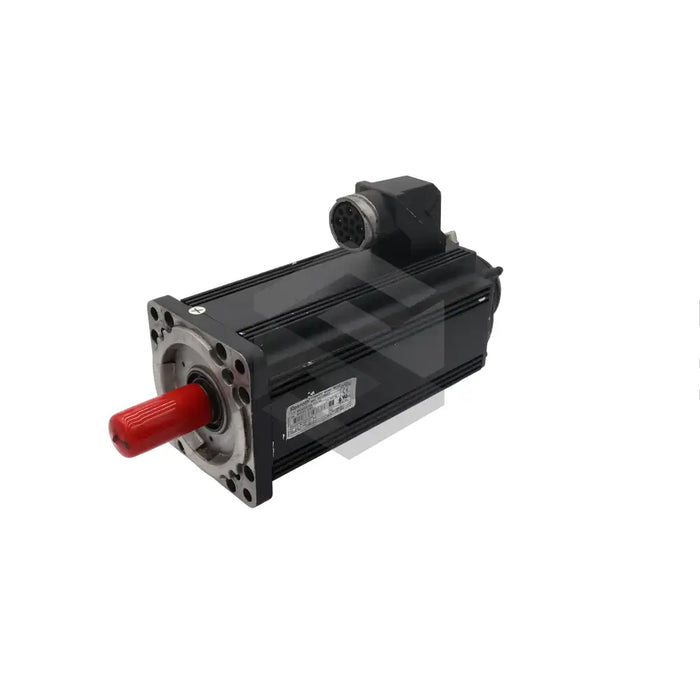

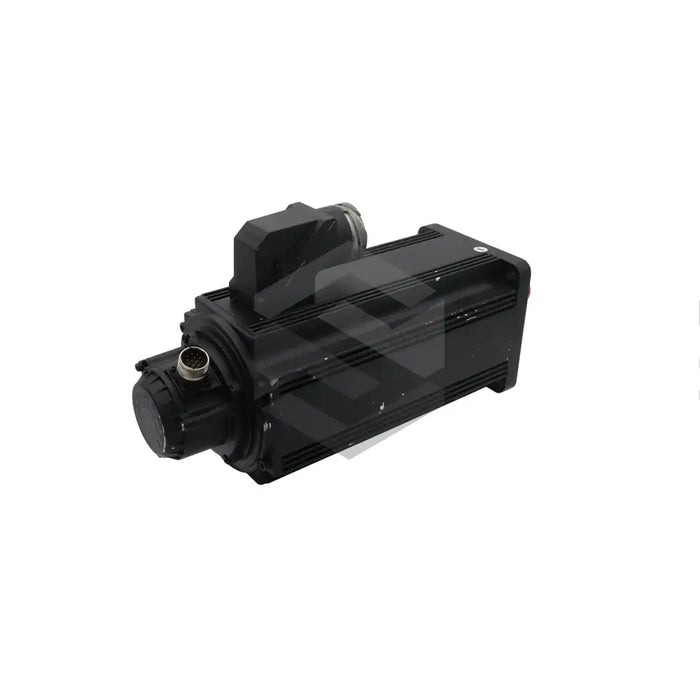

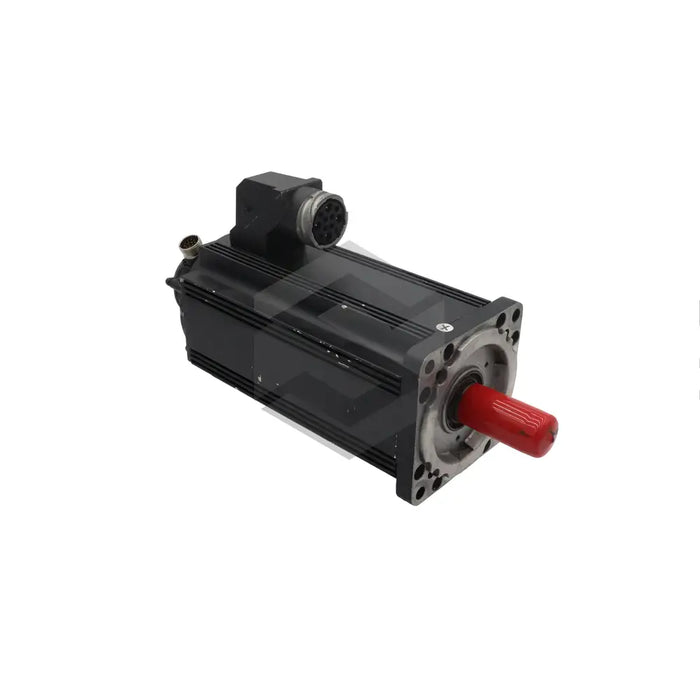

MHD093B-035-NP1-AN
The Bosch Rexroth Indramat's MHD093B-035-NP1-AN is a state-of-the-art servo motor boasting digital servo feedback. This feature enables speed and position control of the motor specific to application requirements. The motor is additionally furnished with a holding brake, a power connector situated on the motor's side A, and a shaft with key and sealing ring. The brake emits 24 Volts DC and 0.71 Amps, weighing 1.1 kilograms with a holding torque of 22 Nm. The MHD093B-035-NP1-AN's housing is naturally convection or surface cooling equipped. Key mechanical attributes include a 0.00255 kg m2 moment of inertia, 66 Nm max theoretical torque, 60 minutes time constant, a 4500 RPM max speed, and a weight of 19 kilograms. Enjoying an IP65 protection rating, the motor is resistant to dust and low-pressure water jets. The device operates up to 40°C, handles altitudes up to 1,000 meters, and can be stored between -20 and 80°C.
