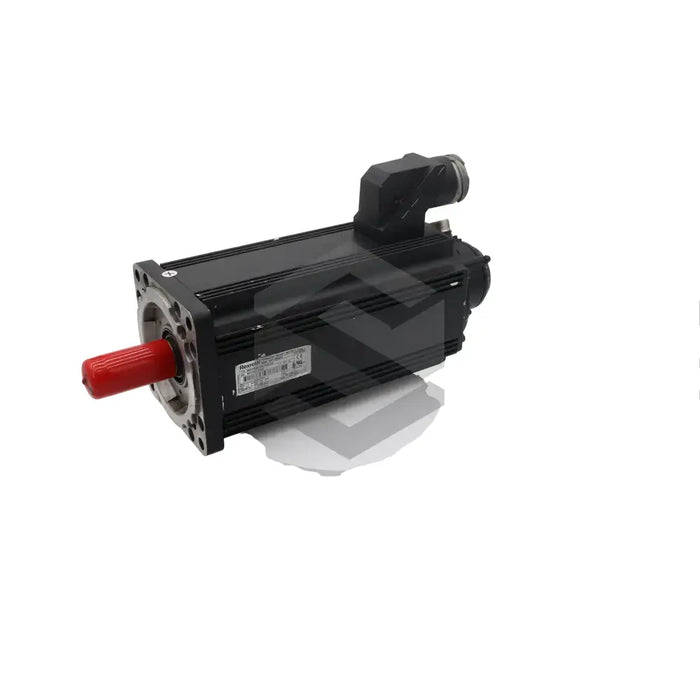

C image of MHD093B-035-NP1-BN | Main (Front Left)

MHD093B-035-NP1-BN

by Bosch Rexroth Indramat
$13,598.31 - $25,200.00
$13,598.31
$13,598.31 - $25,200.00
$13,598.31

In Stock, Ships 1 - 3 Days

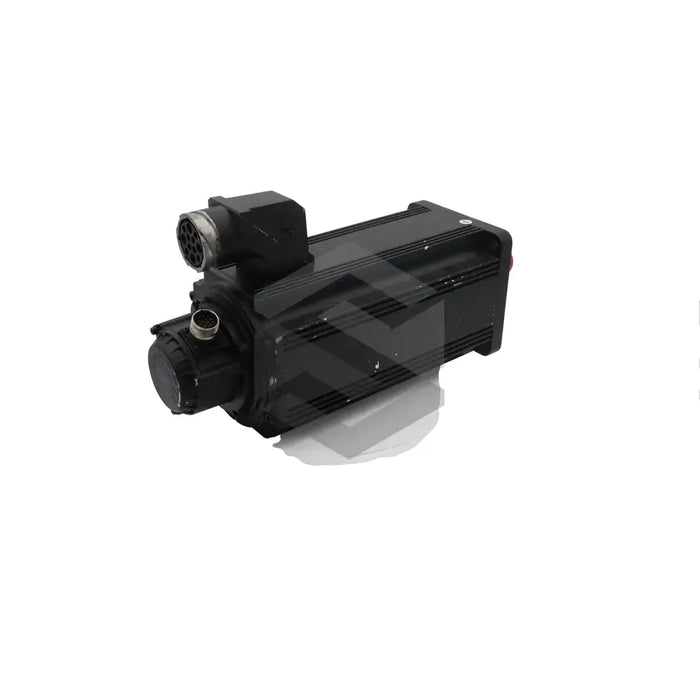

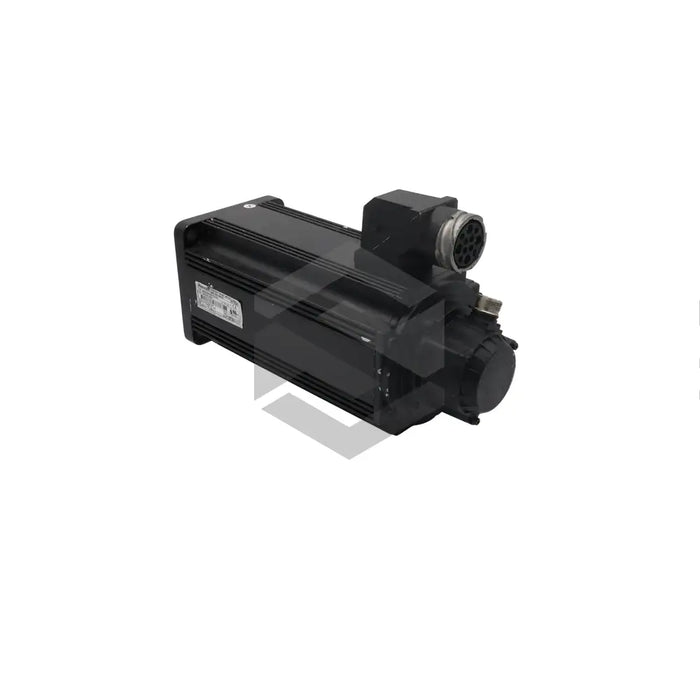

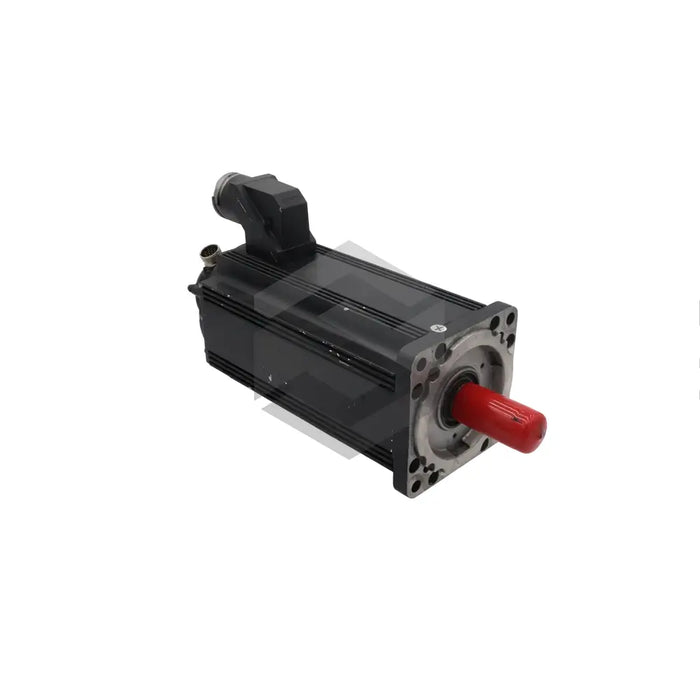

The Bosch Rexroth Indramat MHD093B-035-NP1-BN is a high-capacity, low-inertia synchronous motor. Offering zero-maintenance operation, it is easy to install and features reliable operation thanks to its advanced design technology. Ideal for use in robotics, industrial machinery and food-processing equipment, this unit boasts a "B" motor frame length and a windings code of "035". It utilizes servo feedback and relative position sensing, and has a DIN 6885-1 keyed output shaft with a protective sealing ring. A 22-Nm retaining brake ensures safe, complete stops. This motor employs natural convection or liquid cooling for temperature control, with a coolant loss power of 900 Watts and a pH between 6-8. It offers torque capabilities of up to 20.9 Nm and speeds up to 2500 RPM. Its power and frequency ratings are 6.6 kilowatts and 167 Hertz respectively, with a maximum current of 101.2 Amperes.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

MHD093B-035-NP1-BN

Manufacturer

Bosch Rexroth Indramat

Product Group

MHD

Motor Frame Length

B

Windings Code

035

Feedback

Servo Feedback

Position Sensing

Relative Position Sensing

Output Shaft

DIN 6885-1 Keyed

Shaft Seal

Sealing Ring

Retaining Brake

22-Nm

Temperature Regulation

Natural Convection or Liquid Cooling

Power Loss

900 Watts

pH Value

6 – 8

Constant Torque

17.5 Nm

Maximum Speed

2500 RPM

Maximum Torque

20.9 Nm

Power Rating

6.6 Kilowatts

Frequency Rating

167 Hertz

Maximum Current

101.2 Amperes
