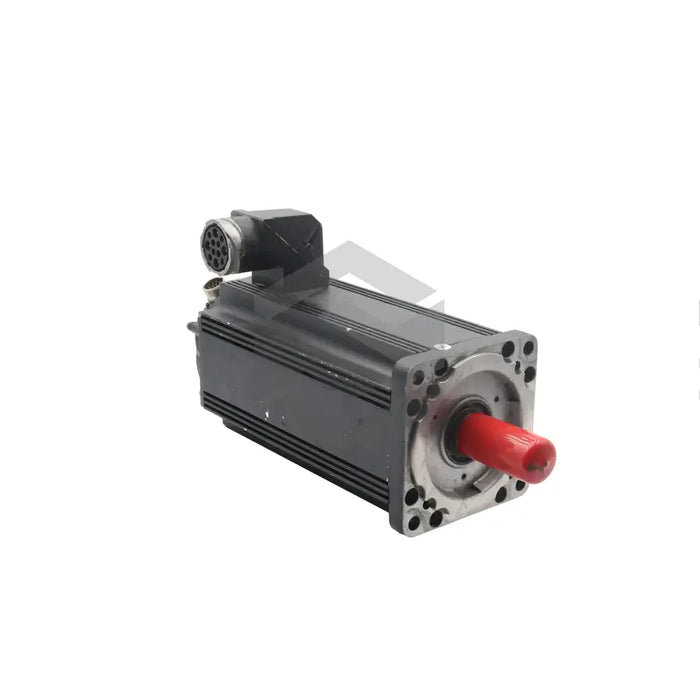

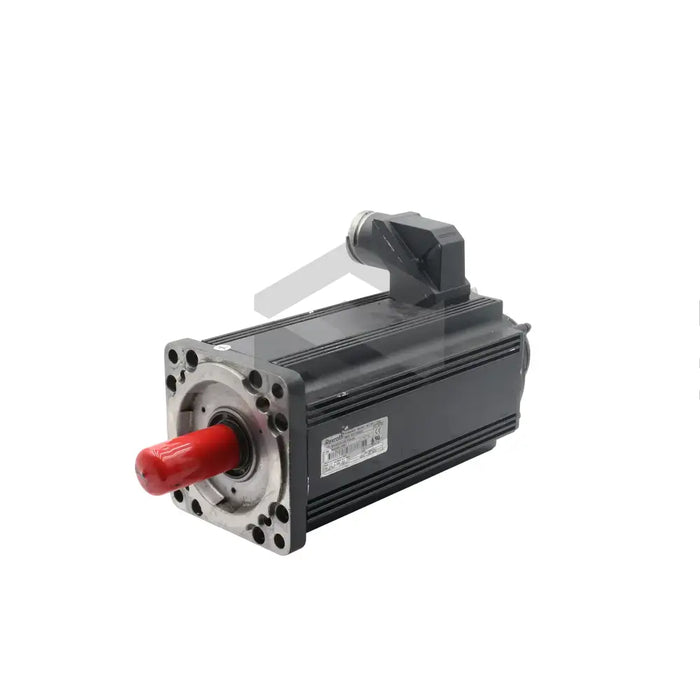

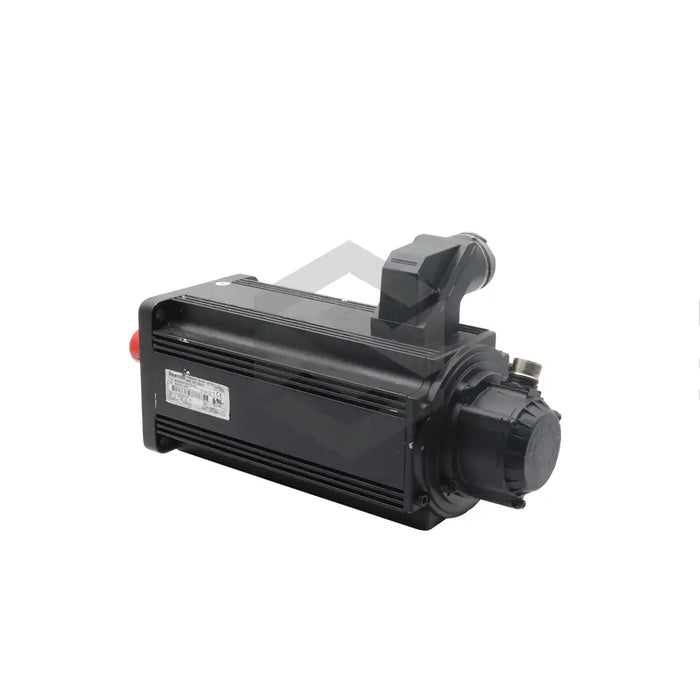

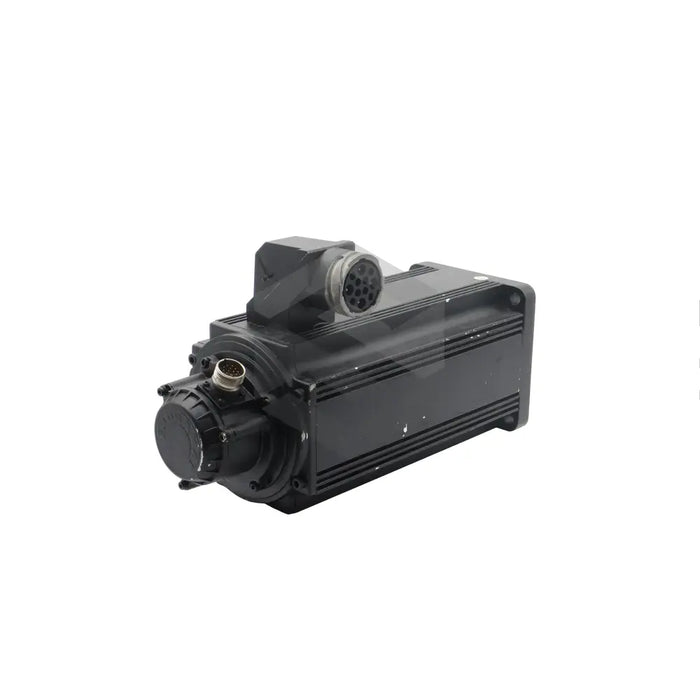

C image of MHD093B-035-NP1-RN | Main (Front Left)

MHD093B-035-NP1-RN

by Bosch Rexroth Indramat
$12,636.48 - $12,636.48
$12,636.48
$12,636.48 - $12,636.48
$12,636.48

In Stock, Ships 1 - 3 Days

The MHD093B-035-NP1-RN motor, produced by Bosch Rexroth Indramat, excels in cost-effectiveness and high performance, due to its special magnet construction and electronic commutation. It is popular in a wide range of industries such as publishing, textile and packaging. Equipped with a temperature control sensor, the motor operates optimally and in-line with its properties. The integrated HSF encoder communicates with the control drive, delivering accurate position and speed. Its smooth shaft connects to the driven component via a sealing ring and the holding brake has a torque of 22 Nm. With operational temperatures of -20 to +80 degrees Celsius, it can be adapted to a variety of mounting locations. Its installation is standardized to DIN 42948. The motor features a 140mm / 150mm flange size, a 130mm centering diameter, and designation of "093". Its length, denoted as "B", corresponds to a standstill torque of 17.5 Nm which enhances overall efficiency.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD model

MHD093B-035-NP1-RN

Main Usage Industries

Publishing, Textile, Packing & Processing

Temperature Control

Integrated temperature control sensor

Encoder Type

HSF encoder

Shaft Type

Smooth shaft with sealing ring

Cooling System

Liquid cooling

Holding Brake Torque

22 Nm

Maximum Air Temperature

40 degrees Celsius

Storage Temperature

-20 degrees Celsius to +80 degrees Celsius

Flange Size

140 mm / 150 mm

Centering Diameter

130 mm

Frame size designation

093

Standstill Torque

17.5 Nm

Mounting

According to DIN 42948 standards
