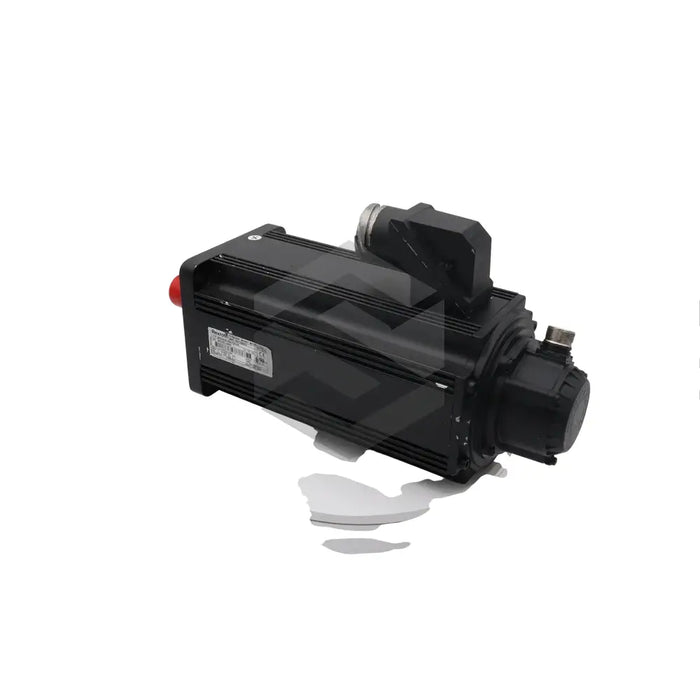

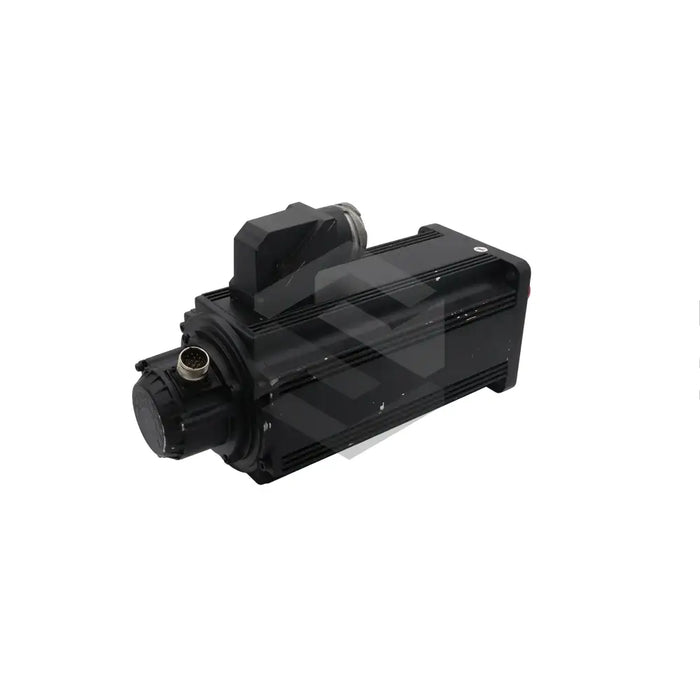

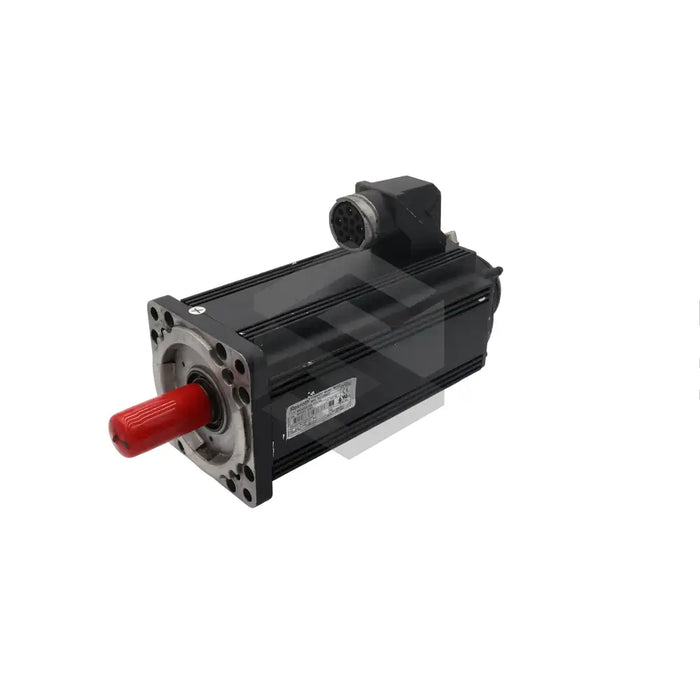

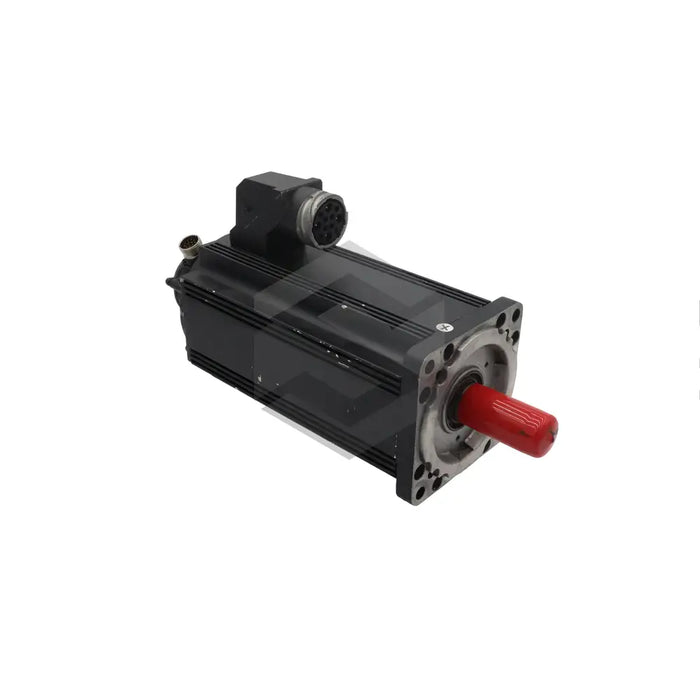

series image of MHD093B-035-PG1-AA

MHD093B-035-PG1-AA

by Bosch Rexroth Indramat
$7,050.00 - $7,050.00
$7,050.00
$7,050.00 - $7,050.00
$7,050.00
In Stock, Ships 3 - 5 Days
The MHD093B-035-PG1-AA is a high-performance synchronous motor from the MHD Series, manufactured by Bosch Rexroth Indramat. This motor exhibits fast start-up and operational efficiency with its low-inertia, permanent magnets and electronic commutation features. It possesses an absolute multi-turn Encoder for digital servo feedback, offering enhanced control parameters. With a frame size of 140/150mm, flange size of 130mm centering diameter, and a 17.5 Nm motor frame, the device also consists of a 22Nm holding brake and side A positioned power connector for an easy connectivity. The device features Code 35 winding. Further, its housing is built with top-grade, light materials and incorporates a natural convection design for efficient temperature regulation. Adhering to IP65 protection guidelines, this motor ensures safe and reliable operation, longevity, and low-maintenance performance, making its handling, installation, and operation notably user-friendly.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MHD Series Synchronous motors
  • Motor Type: Permanent Magnets
  • Commuation: Electronic
  • Encoder Type: Absolute multi-turn
  • Winding Code: 35
  • Motor Frame Size: 140/150mm
  • Flange Size: 130mm centering diameter
  • Motor Frame Length: 17.5 Nm
  • Housing Material: High-Grade Lightweight material
  • Cooling System: Natural Convection
  • Shaft Type: Output Plain Shaft
  • Sealing Rings: Included
  • Holding Brake: 22 Nm
  • Power Connector Position: Side A
  • Safety Standard: IP65
  • Inertia-Mass: Low
  • Operation: Maintenance-Free
