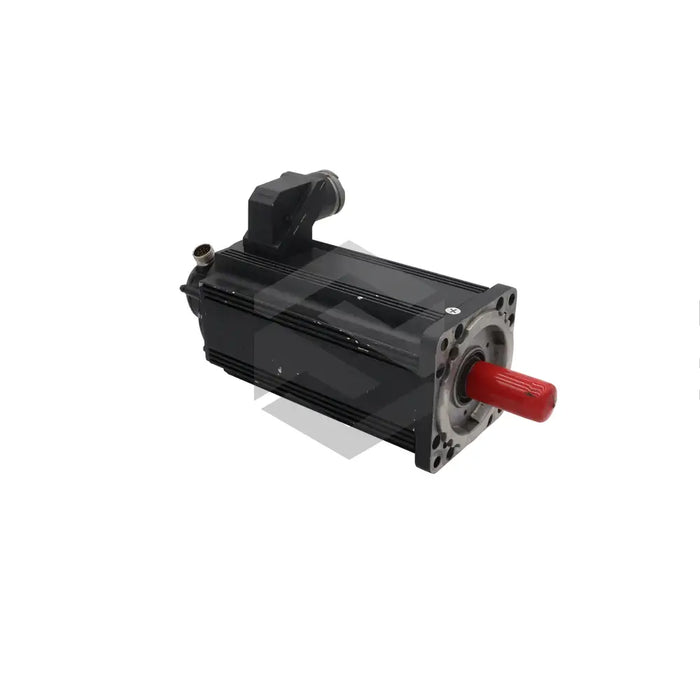

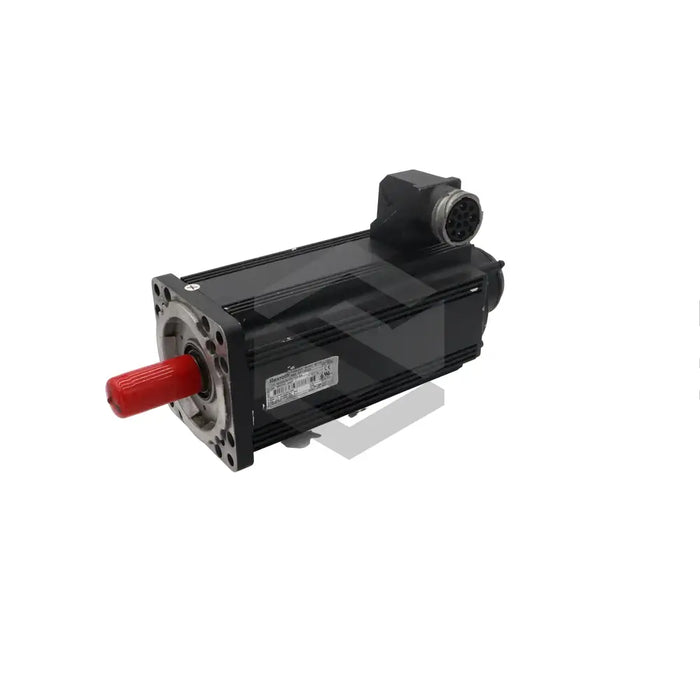

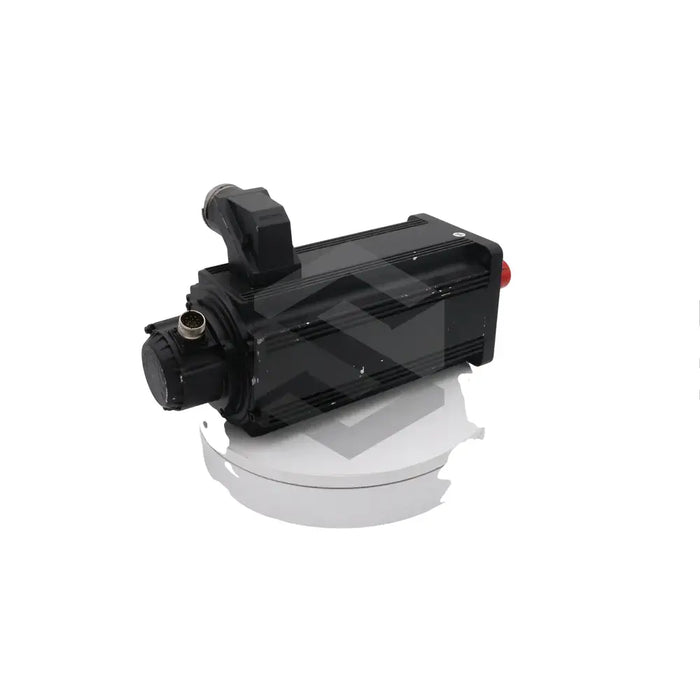

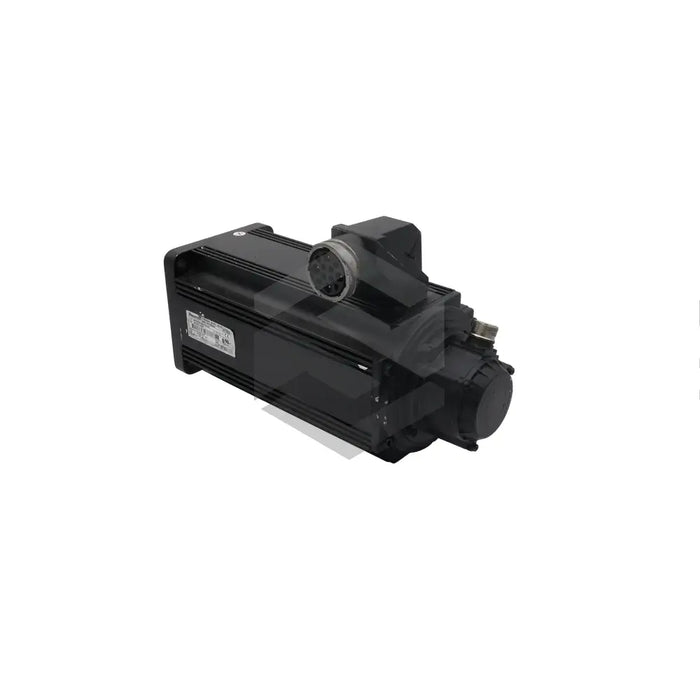

C image of MHD093B-035-PG1-LN | Main (Front Left)

MHD093B-035-PG1-LN

by Bosch Rexroth Indramat
$3,735.57 - $3,735.57
$3,735.57
$3,735.57 - $3,735.57
$3,735.57

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD093B-035-PG1-LN is a synchronous motor that features strict specifications for operation. Proper electrical connections and tightening of the cable screw unions are vital for optimal performance. Any accumulation of dirt, shavings or dust can impair its function. The device is equipped with DIN ISO 281 specified bearings with a service life of 30,000 operating hours. Regular maintenance checks, especially of connection lines, are required, and it is recommended to replace these lines if damage is identified. The product, which has a rated frequency of 167Hz and four pole pairs, is used in the paper, printing, food industries along with packaging machines. A unique aspect of this product is its ability to operate under harsh environmental conditions due to its fully enclosed design. It is designed to support repeated start-stop operations and has overload protection, courtesy of its built-in temperature monitoring function. The included data memory in the encoder allows for quick startup, and easy cabling is made possible due to unique product design. The unit should never be used in a damaged or defective state. It features a storage and transport temperature range of -20°C to 80°C. This motor is designed only for specified applications and misuse could result in failure or damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MHD093B-035-PG1-LN

Installation Requirement

Correct Electrical Connections and tightened cable screw unions

Potential Impact

Excessive dirt, dust or shavings affect performance

Bearing Service Life

30,000 operating hours as per DIN ISO 281

Rated Frequency

167Hz

Number of Pole Pairs

4

Rotor Moment of Inertia

25.5 x 10-4kgm2

Applications

Printing, paper, food industries and packaging machines

Environmental Capability

Can Function under adverse conditions

Operating Capability

Supports start-stop operation with high repeat frequencies

Temperature Monitoring Function

Yes

Startup

Simple and quick due to data memory in encoder

Cabling Mechanism

Easy

Mounting Position

Directly over the motor

Storage and Transport Temperature Range

-20°C to80°C

Torque Constant

1.5Nm/A

Winding Resistance

1.26 Ohms

Voltage Constant

136V/1000min-1 at 20°C

Minimum Strand Cross-section

1.5mm2

Other Details

Not to be used in damaged state and for unspecified applications.
