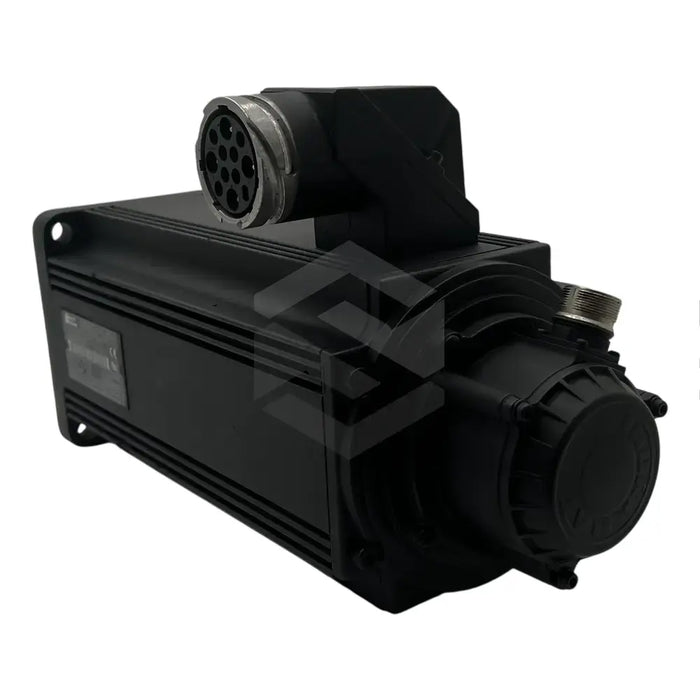

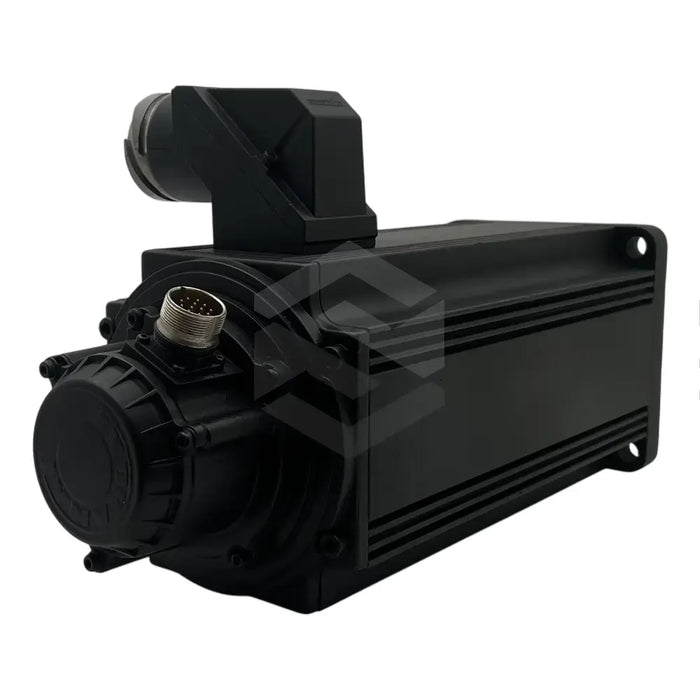

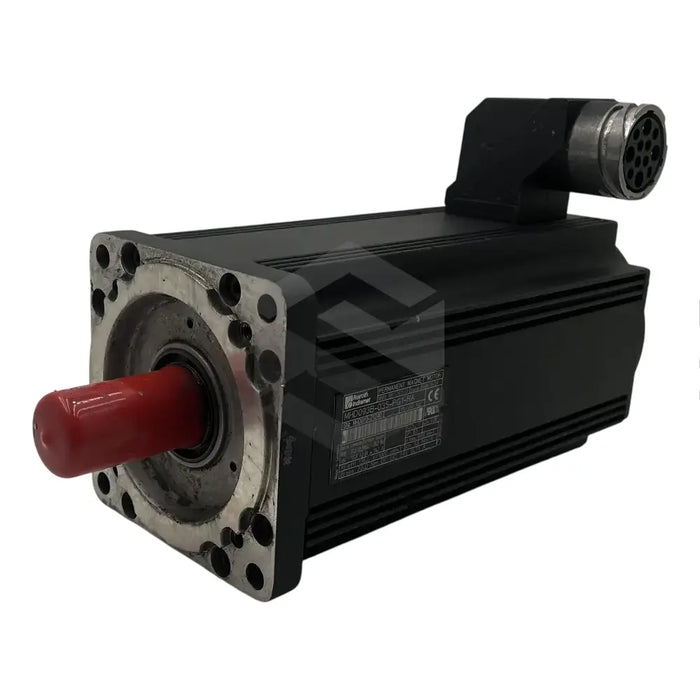

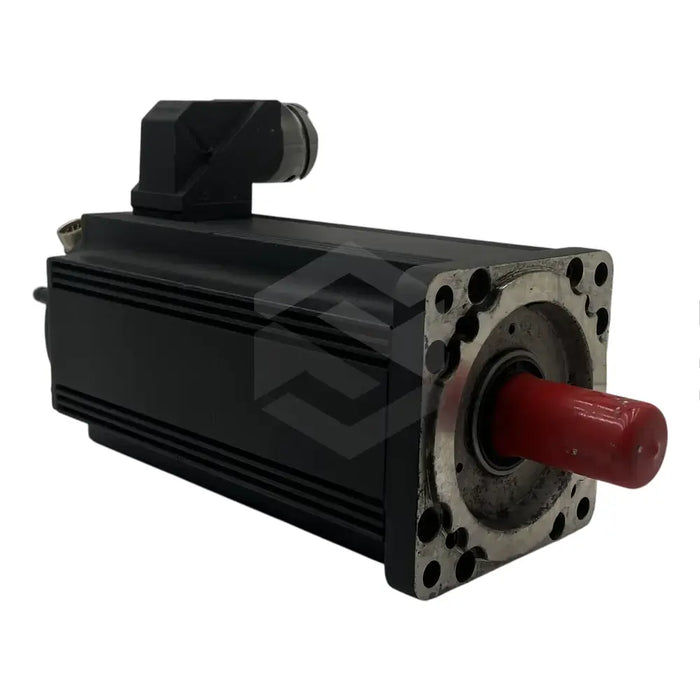

series image of a MHD093B-035-PG1-RA

MHD093B-035-PG1-RA

by Bosch Rexroth Indramat
$3,906.00 - $3,906.00
$3,906.00
$3,906.00 - $3,906.00
$3,906.00
Available, Shipping Varies
The Bosch Rexroth Indramat MHD093B-035-PG1-RA is an MHD series synchronous motor designed for diverse applications in machine tools, automation, food processing, and packaging machines. It is equipped with features such as digital servo feedback with an integrated multiturn absolute encoder, plain shaft with a sealing ring, and a 22Nm holding brake. Naturally cooled through convection, it negates the need for active cooling devices; although, maintaining adequate ventilation is crucial. Optimally, the ambient temperature should be between 0 to 40 degrees Celsius. The motor, with a maximum setup height below 1000 meters, has an IP65 class housing which provides significant protection against liquid and solid intrusions. It incorporates a safety holding brake that immobilizes the shaft until a 24V DC signal is applied and can operate at a maximum speed of 4500 RPM. The motor, with a Class F insulation, weighs 19 kilograms.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MHD Series
  • Motor Type: Synchronous Motor
  • Servo Feedback: Digital
  • Encoder Type: Integrated Multiturn Absolute
  • Shaft Type: Plain with Sealing Ring
  • Holding Brake: 22 Nm
  • Cooling Method: Convection Cooling
  • Operating Temperature: 0 to 40 degrees Celsius
  • Maximum Installation Height: 1000 meters
  • Housing Protection Class: IP65
  • Holding Brake Operation: 24 Volts DC Signal
  • Power Connector Position: Right Side of the Motor Housing
  • Maximum Speed: 4500 RPM
  • Insulation Class: F as per DIN VDE 0530 Part 1
  • Shipping Weight: 19 kilograms
