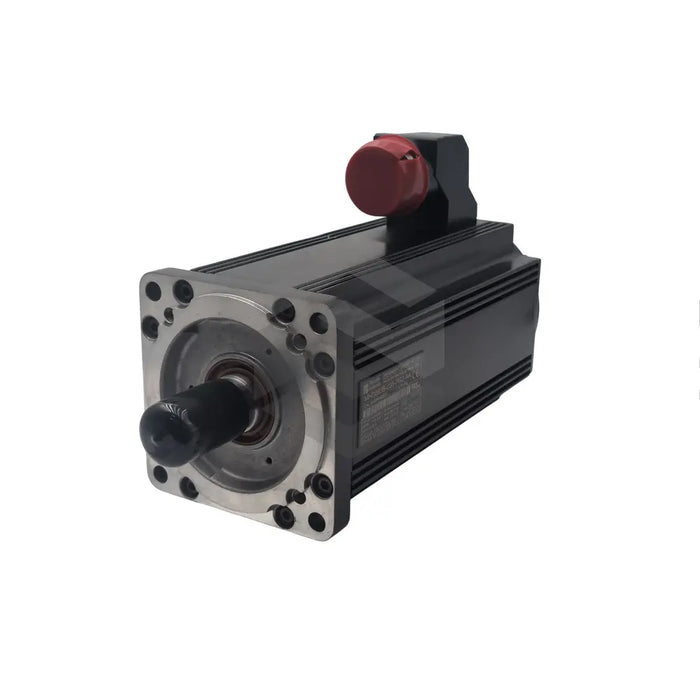

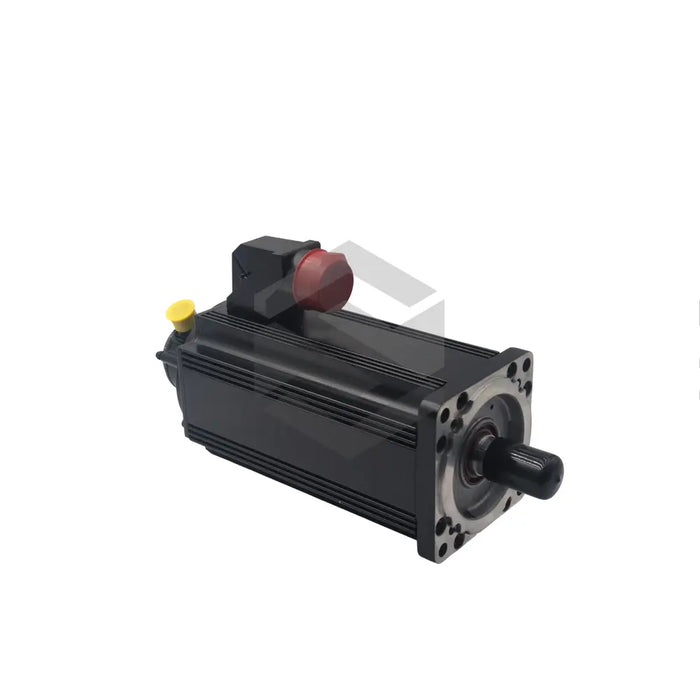

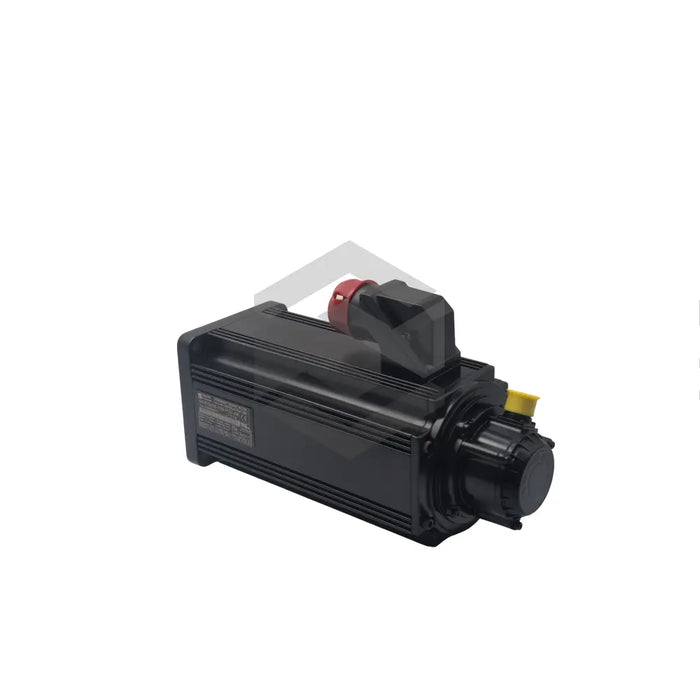

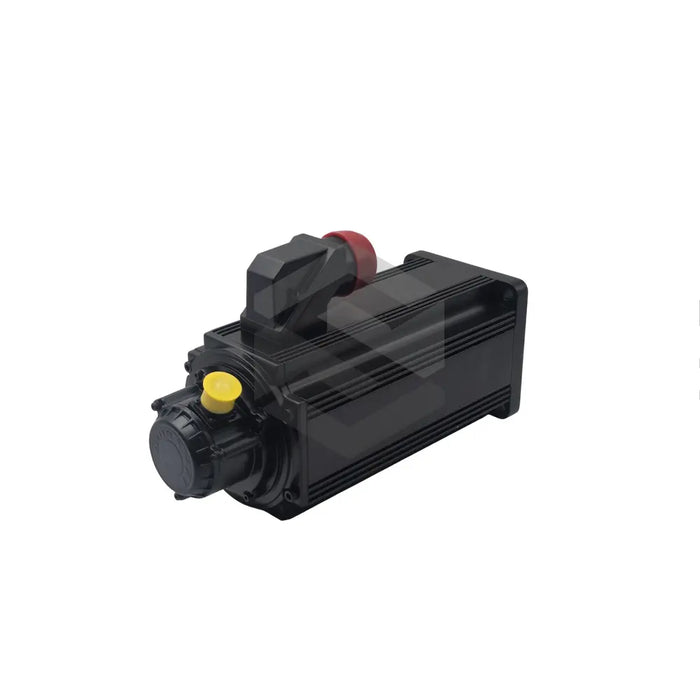

S image of MHD093B-035-PG2-AA

MHD093B-035-PG2-AA

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat MHD093B-035-PG2-AA is a convection-cooled synchronous servo motor. At a characteristic speed of 3000 RPM and a maximum speed of 4500 RPM, its specifications vary according to different overtemperature conditions. For the 60 K overtemperature condition, it flaunts a continuous torque of 17.5 Nm and a rated output of 2.7 kilowatts, with a power connection wire size minimum of 1.5 mm2. For the 100K overtemperature condition, the motor's continuous torque is 20.0 Nm with a rated output of 4.7 kilowatts. Along with a time constant of 60 minutes, the 19-kilogram motor has a digital servo feedback system with integrated multiturn absolute encoder. It also features a 32 Nm holding brake and a power connector on its side A. Its optimal operating temperatures range from 0 to 40 degrees Celsius, making it perfect for applications such as printing, packaging machines, and machine tools.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

MHD093B-035-PG2-AA

Product Type

Convection-cooled synchronous servo motor

Maximum Speed

4500 RPM

Characteristic Speed

3000 RPM

60K Overtemperature Condition (Continuous Torque)

17.5 Nm

60K Overtemperature Condition (Continuous Current)

12.8 Amps

60K Overtemperature Condition (Rated Torque)

8.8 Nm

60K Overtemperature Condition (Rated Current)

4.6 Amps

60K Overtemperature Condition (Rated Output)

2.7 kilowatts

60K Overtemperature Condition (Rated Voltage)

350 Volts

60K Overtemperature Condition (Rated Frequency)

167 Hertz

100K Overtemperature Condition (Continuous Torque)

20.0 Nm

100K Overtemperature Condition (Continuous Current)

15.1 Amps

100K Overtemperature Condition (Rated Torque)

14.5 Nm

100K Overtemperature Condition (Rated Current)

7.7 Amps

100K Overtemperature Condition (Rated Output)

4.7 kilowatts

100K Overtemperature Condition (Rated Voltage)

360 Volts

100K Overtemperature Condition (Rated Frequency)

167 Hertz

Time Constant

60 minutes

Minimum Wire Size (Power Connection)

1.5 mm2

Weight

19 kilograms

Temperature Range (Storage and Transport)

-20 to 80 degrees Celsius

Temperature Range (Operation)

0 to 40 degrees Celsius

Altitude Limit for Installation

1000 meters (above leads to derating)

Motor Flange Size

140 / 150 millimeters

Centering Diameter

130 millimeters

Feedback Method

Digital servo feedback with integrated multiturn absolute encoder

Shaft Type

Plain shaft with a sealing ring

Holding Brake

32 Nm holding torque

Power Connector Location

Side A of the housing

Applications

Printing machines, packaging machines, machine tools.
