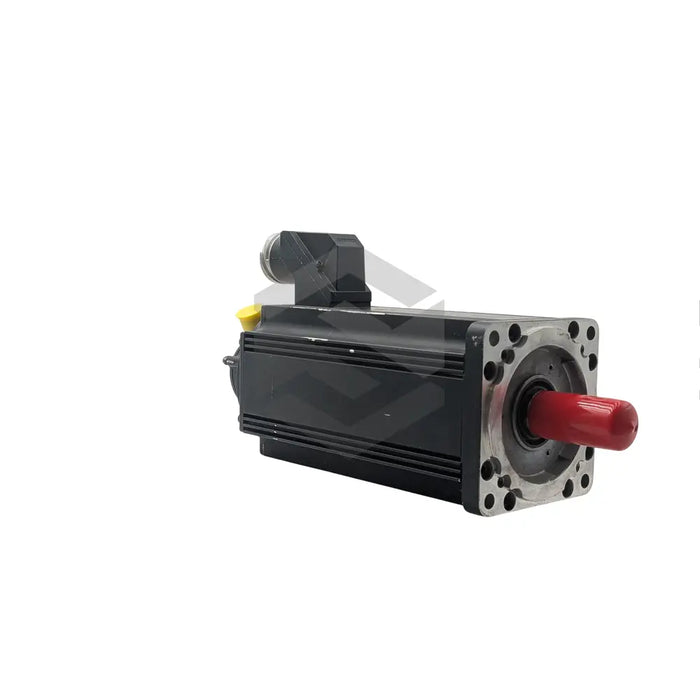

S image of MHD093B-035-PP0-AN

MHD093B-035-PP0-AN

by Bosch Rexroth Indramat
$4,837.48 - $17,141.30
$4,837.48
$4,837.48 - $17,141.30
$4,837.48

In Stock, Ships 1 - 3 Days

The Bosch Rexroth Indramat MHD093B-035-PP0-AN is a high-tech servo motor with a flange size of 140/150mm and a centering diameter of 130mm. Notably, it has a uniquely designed housing that facilitates either natural convection or liquid cooling. When liquid cooling is employed, it offers a continuous torque of 33.3 Nm, continuous current of 24.3 Amps, and rated speed of 2500 RPM. For natural convection under 60 K or 100 K conditions, the motor alters its continuous torque, current, rated torque, speed and output, while maintaining the same rated motor frequency of 167 Hertz across all operating conditions. The winding resistance is 1.26 Ohms and the winding inductance is 10.7 millihenry. The motor features digital servo feedback with a built-in multiturn absolute encoder, a principal motor shaft with a key and seal, and a power connector located at side A. Installation should be by qualified personnel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Motor Flange Size

140/150 millimeters

Centering Diameter

130 millimeters

Housing Design

Natural Convection or Liquid Cooling

Liquid Cooling Specs

Continuous Torque: 33.3 Nm, Continuous Current: 24.3 Amps, Rated Speed: 2500 RPM, Rated Torque: 29.1 Nm, Rated Current: 15 Amps, Rated Output: 9.3 kilowatts, Rated Voltage: 396 Volts

Natural Convection Specs (60 K condition)

Continuous Torque: 17.5 Nm, Continuous Current: 12.8 Amps, Rated Speed: 2500 RPM, Rated Torque: 8.8 Nm, Rated Current: 4.6 Amps, Rated Output: 2.7 kilowatts, Rated Voltage: 350 Volts

Natural Convection Specs (100 K condition)

Continuous Torque: 20 Nm, Continuous Current: 15.1 Amps, Rated Speed: 2500 RPM, Rated Torque: 14.5 Nm, Rated Current: 7.7 Amps, Rated Output: 4.7 kilowatts, Rated Voltage: 360 Volts

Rated Motor Frequency

167 Hertz

Winding Resistance

1.26 Ohms

Winding Inductance

10.7 millihenry

Number of Pole Pairs

4

Servo Feedback

Digital with Integrated Multiturn Absolute Encoder

Motor Shaft Features

Key and Seal

Holding Brake Availability

Not available

Power Connector Location

Side A of the motor

Installation

By Qualified Personnel Only
