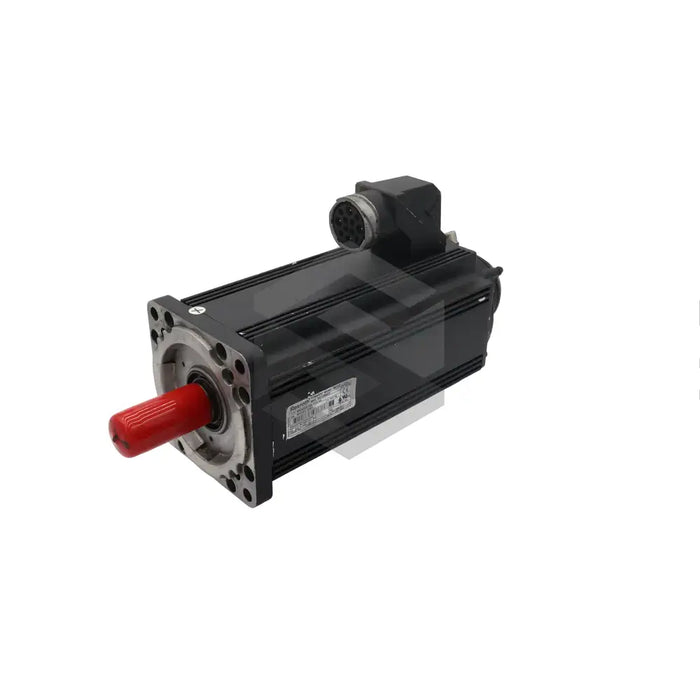

C image of MHD093B-058-NG0-AN | Main (Front Left)

MHD093B-058-NG0-AN

by Bosch Rexroth Indramat
$13,732.29 - $13,732.29
$13,732.29
$13,732.29 - $13,732.29
$13,732.29

In Stock, Ships 1 - 3 Days

The MHD093B-058-NG0-AN motor is a high-quality product from Bosch Rexroth Indramat, known for its high dynamics resulting from an optimal torque-to-inertia mass ratio. Bearing longevity is crucial, hence bearing replacement is advised when running noise is observed or upon reaching the nominal service life. Regular inspection of connection lines for damage is also recommended. Featuring a torque constant of 1.5Nm/A at 20°C and a voltage constant of 136V/1,000min-1 at 20°C, the motor is designed to withstand high overloads due to effective heat dissipation from the stator windings to the housing exterior. The motor has a flange that meets DIN 42948 specifications, allowing for the easy attachment of devices, belt pulleys, and pinions. Modifications to its original structure are prohibited. Only trained personnel should operate it to ensure safety. Finally, the motor should not be used without a secure ground wire connection and must be kept clean and away from extreme temperatures and conditions.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MHD093B-058-NG0-AN Synchronous Motor Specifications

Ensure freedom from excessive shavings, dust, or dirt and regular cleaning of cooling ribs

Effect of Axial and Radial Loads

May adversely affect the service life of bearings and cause running noise

Torque Constant

1.5Nm/A at 20°C

Features

High dynamics due to favorable torque-to-inertia mass ratio, DIN 42948 compliant flange for easy device attachment, Voltage constant of 136V/1,000min-1 at 20°C, Favorable heat dissipation to exterior wall of housing, Minimal structural modifications

Operating guidelines

Strictly for trained personnel, not suitable for underwater use and areas with high temperature variations

Winding Resistance

1.26 Ohms at 20°C

Motor Cable

Minimum strand cross-section of 1.5mm2

Ground Wire Connection

Permanent connection required.
