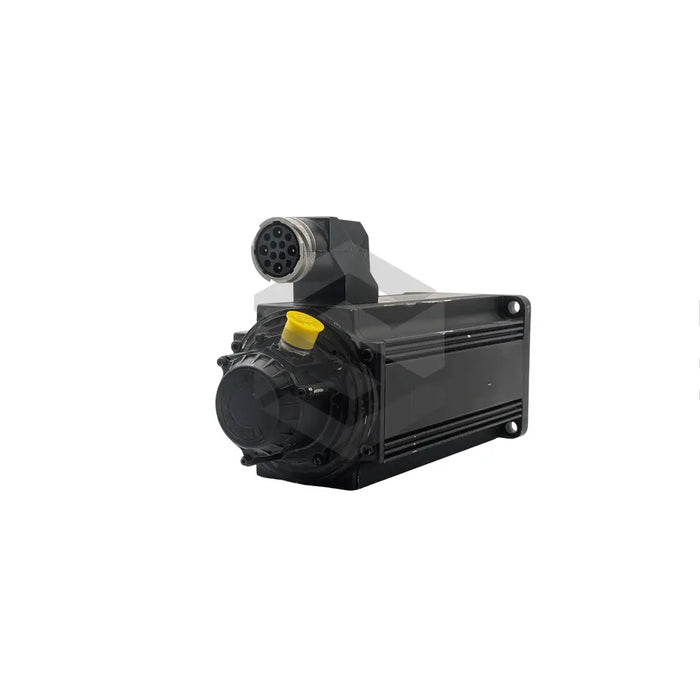

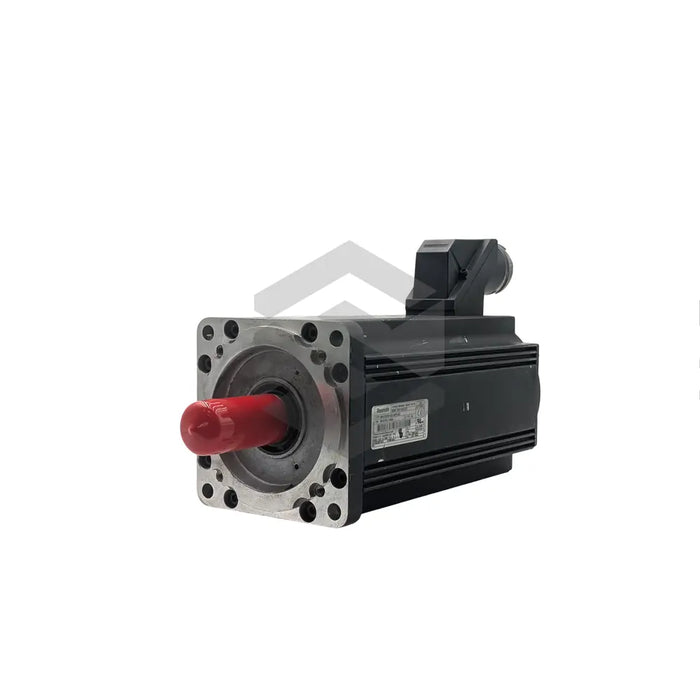

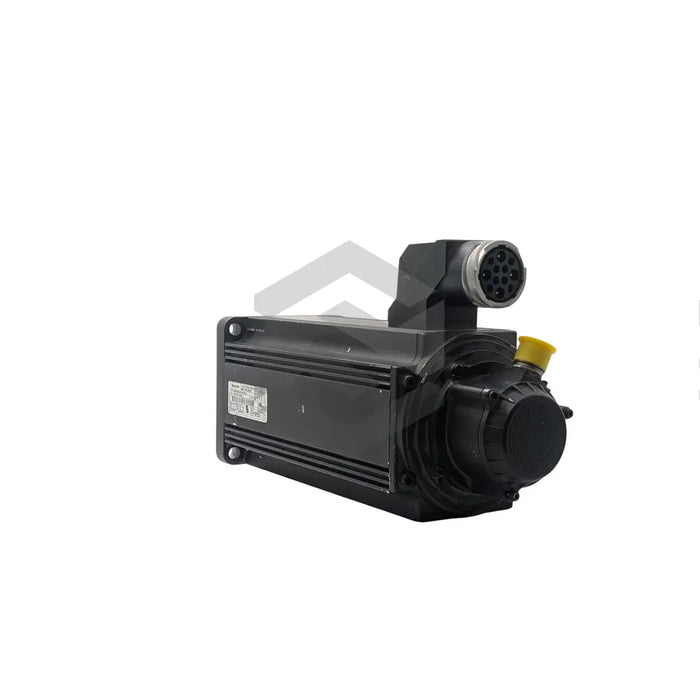

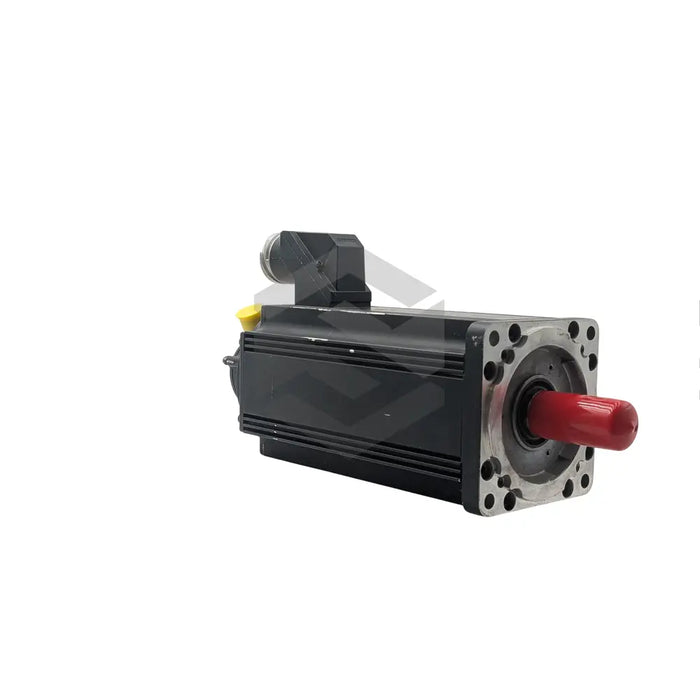

S image of MHD093B-058-NG1-AA

MHD093B-058-NG1-AA

by Bosch Rexroth Indramat
$893.40 - $21,383.25
$893.40
$893.40 - $21,383.25
$893.40

In Stock, Ships 1 - 3 Days

The MHD093B-058-NG1-AA is a technologically advanced synchronous motor manufactured by Bosch Rexroth Indramat. Renowned for its low inertia masses thanks to unique magnet materials, this motor offers high operational reliability, low maintenance requirements, and adaptability in demanding conditions. Optimized for use in a broad spectrum of industrial applications, from food packaging and machinery handling to robotics and the paper industry, the motor can generate a theoretical maximum torque of 44 Nm and a top speed of 3500 rpm. Distinguished by its plain output shaft, the MHD093B-058-NG1-AA employs natural convection and surface cooling systems, a 22Nm holding brake, and can be installed up to a height of 1000m. It boasts an IP 65-graded housing for enhanced protection and has a total weight of 14.5 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name

MHD093B-058-NG1-AA

Manufacturer

Bosch Rexroth Indramat

Materials

Distinct magnet materials

Industries Used

Food/packaging equipment, Industrial machinery, Handling & robotization, Paper industry

Operational Safety

High

Maintenance

No

Overload Capacity

High

Output Shaft

Plain

Cooling

Natural convection and surface cooling

Maximum Theoretical Torque

44 Nm

Maximum Speed

3500 revolutions per minute

Output Current

57.6 A

Holding Brake

22 Nm

Rated Current of Brake

0.71 A

Weight of Brake

1.1 kg

Housing

Prime coat black, IP 65-rated

Weight

14.5 kg

Installation Height

Up to 1000 m

Rotor Moment of Inertia

0.000173 kgm2

Winding Resistance at 20 oC

1.09 Ohm.
