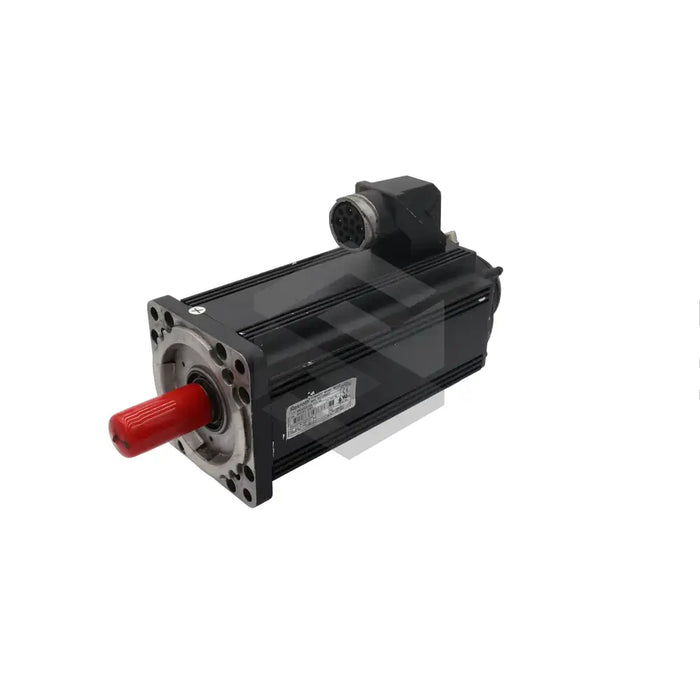

C image of MHD093B-058-NP0-AA | Main (Front Left)

MHD093B-058-NP0-AA

by Bosch Rexroth Indramat
$13,732.29 - $13,732.29
$13,732.29
$13,732.29 - $13,732.29
$13,732.29

In Stock, Ships 1 - 3 Days

The MHD093B-058-NP0-AA is a high-quality synchronous motor produced by Bosch Rexroth Indramat, leaders in the global automation devices industry. Utilised primarily as a main or servo drive motor in various motion control systems, this model operates in conjunction with a prescribed digital intelligent drive controller and supply module. The motor runs on a rated input voltage between 200-330 V AC, with a frequency range of 167-267 Hz, consuming continuous current of 4.9-13.6 A and delivering torque of 5.4-15 Nm. With its characteristic speed at 4000 rpm, it produces a rated power of 1.7-4.1 kW under ambient conditions, and 7.6 kW with surface cooling. Equipped with digital servo feedback and a keyway rotor, this motor functions without a holding brake. It fastens with an A-side power connector and can be installed in any approved position. Adhering to an IP65 protection category, this motor is fit for extreme conditions. It comprises 4 pole pairs and a winding inductance of 3.2 mH.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD093B-058-NP0-AA

Use

Main or servo drive motor

Compatible with

Digital intelligent drive controller and supply module by Rexroth Indramat

Operating Input Voltage

200 – 330 V AC

System Frequency

167 – 267 Hz

Continuous Current

4.9 – 13.6 A

Continuous Torque

5.4 – 15 Nm

Operating Speed

4000 rpm

Rated Power Output

1.7 – 4.1 kW (standard conditions), 7.6 kW (surface cooling)

Feedback Feature

Digital servo feedback

Rotor Type

Rotor with keyway

Brake

None

Power Connector Position

A-side

Mounting Position

Any as prescribed

Operating Ambient Temperature

0 to +40 degree Celsius

Protection Category

IP65

Pole Pairs

4

Winding Inductance

3.2 mH
