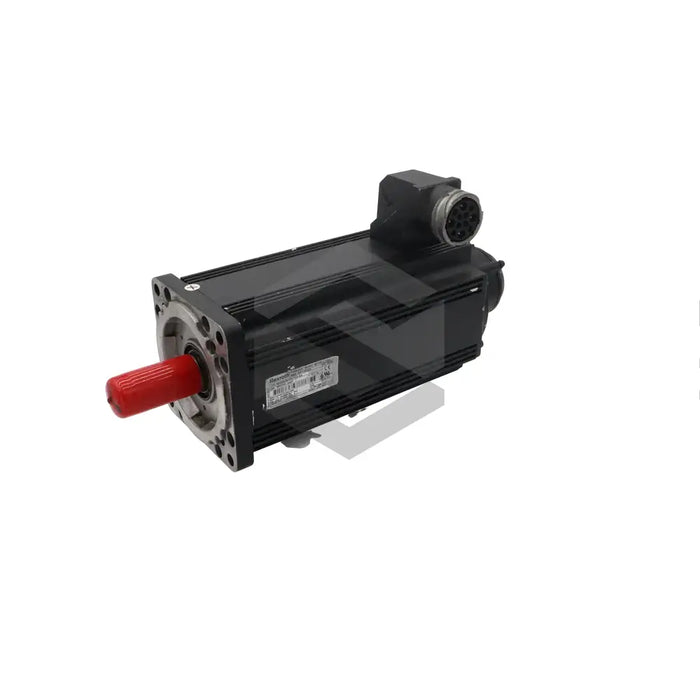

C image of MHD093B-058-NP0-LA | Main (Front Left)

MHD093B-058-NP0-LA

by Bosch Rexroth Indramat
$13,732.29 - $13,732.29
$13,732.29
$13,732.29 - $13,732.29
$13,732.29

In Stock, Ships 1 - 3 Days

The MHD093B-058-NP0-LA is a high-repetition, synchronous motor produced by industrial manufacturing company, Bosch Rexroth Indramat. Possessing a B05 flange framework, this model can be set in any accepted mounting position and functions continuously under unfavorable climatic conditions due to its robust IP65 dust and low-pressure liquid protection. The motor features a left-side, top-placed power connector which receives power from an AC 200 – 330 V source, and should exclusively be employed with digital intelligent drive system approved accessories and modules. Incorporated within the motor housing is a temperature monitor preventing overheating. The model offers steady torque under natural convection or surface cooling modes, generating 26.3 Nm of torque with a 60/100-K temperature increase, consuming a max of 101.2 A and offering a top speed of 6000 rpm. For uniform power delivery, the model includes a keyway shaft and a standard bearing with a 30,000 operating hours lifespan, with speed and position monitored by digital servo feedback.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MHD093B-058-NP0-LA

Flange Mounting

B05

Operation

Continuous start-stop operations

Design Standard

American

Protection Category

IP65

Power Connector Position

Left Side

Input Power Source

AC 200 – 330 V

Temperature Monitoring

Yes

Natural Convection Cooling Torque

17.5 Nm

Natural Convection Cooling Current

22.5 A

Rated Torque at Standstill

20 Nm

Rated Current at Standstill

26 A

Surface Cooling Mode Torque

26.3 Nm

Surface Cooling Mode Current

33.8 A

Maximum Current

101.2 A

Maximum Speed

6000 rpm

Shaft Type

With Keyway

Bearing Life

30,000 operating hours

Feedback Type

Digital Servo Feedback
